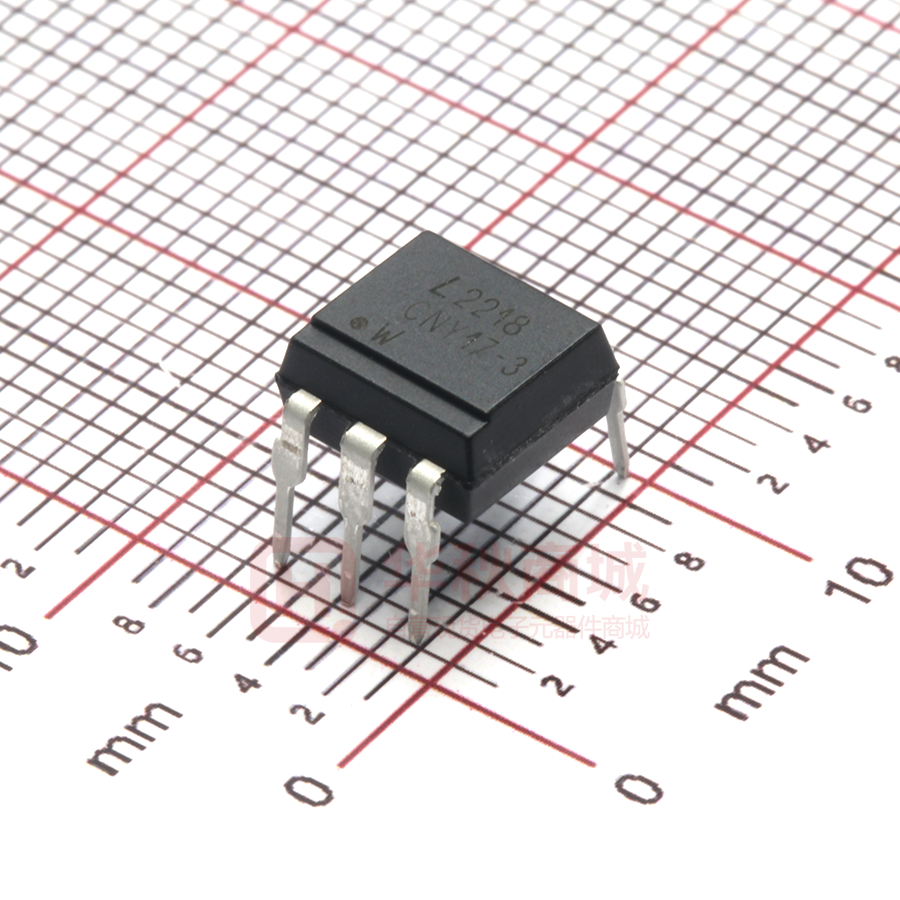

CNY17-3

Photocoupler Product Data Sheet CNY17-1 THRU CNY17-4 SERIES Spec No. :DS-70-99-0001 Effective Date: 07/01/2020 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler CNY17-1 THRU CNY17-4 SERIES 1. DESCRIPTION 1.1 Features      Current transfer ratio (CTR : MIN. 40% at IF = 10mA, VCE = 5V) High collector-emitter voltage VCEO = 70V High input-output isolation voltage Viso = 5,000Vrms Response time (tr : TYP. 5µs at VCE = 10V, IC = 2mA, RL = 100Ω) Dual-in-line package: CNY17-1, CNY17-2, CNY17-3, CNY17-4    Wide lead spacing package: CNY17-1M, CNY17-2M, CNY17-3M, CNY17-4M Surface mounting package: CNY17-1S, CNY17-2S, CNY17-3S, CNY17-4S Tape and reel packaging: CNY17-1S-TA, CNY17-2S-TA, CNY17-3S-TA, CNY17-4S-TA CNY17-1S-TA1, CNY17-2S-TA1, CNY17-3S-TA1, CNY17-4S-TA1    Safety approval * UL approved * cUL approved * CSA approved * DEMKO approved * VDE approved * CQC approved Creepage distance > 8.0 mm ; Clearance > 8.0 mm The relevant models are the models Approved by VDE according to DIN EN 60747-5-5 Approved Model No.: CNY17-1-V, CNY17-2-V, CNY17-3-V, CNY17-4-V CNY17-1M-V, CNY17-2M-V, CNY17-3M-V, CNY17-4M-V CNY17-1S-V, CNY17-2S-V, CNY17-3S-V, CNY17-4S-V CNY17-1S-TA-V, CNY17-2S-TA-V, CNY17-3S-TA-V, CNY17-4S-TA-V CNY17-1S-TA1-V, CNY17-2S-TA1-V, CNY17-3S-TA1-V, CNY17-4S-TA1-V       Operating isolation voltage VIORM : 850V (Peak) Transient voltage VTR : 6000V (Peak) Pollution : 2 (According to VDE 0110-1 : 1997-04) Clearances distance (Between input and output) : 7.0mm (MIN.) Creepage distance (Between input and output) : 7.0mm (MIN.) Isolation thickness between input and output : 0.4mm (MIN.) 1/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES  Safety limit values Current (Isi) : 400mA (Diode side) Power (Psi) : 700mW (Phototransistor side) Temperature(Tsi) : 175oC In order to keep safety electric isolation of photocoupler, please set the protective circuit to keep within safety limit values when the actual application equipment troubled.   Indication of VDE approval prints " " on sleeve package. RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC, 2011/65/EU, and 2015/863). MSL class1  1.2 Applications      Power Supply regulators Digital logic inputs Microprocessor inputs Appliance Sensor Systems Industrial Controls 2/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES 2. PACKAGE DIMENSIONS 2.1 CNY17-1, CNY17-2, CNY17-3, CNY17-4 : 2.2 CNY17-1M, CNY17-2M, CNY17-3M, CNY17-4M : Notes : 1. 2-digit year code, example : 2016 = 16 2. 2-digit work week ranging from ‘01’ to ‘53’ 3. Factory identification mark shall be marked (Y: Thailand, W: China-CZ, X: China-TJ). 4. Model No.: CNY17-1, CNY17-2, CNY17-3, CNY17-4 3/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES 2.3 CNY17-1S, CNY17-2S, CNY17-3S, CNY17-4S : Notes : 1. 2-digit year code, example : 2016 = 16 2. 2-digit work week ranging from ‘01’ to ‘53’ 3. Factory identification mark shall be marked (Y: Thailand, W: China-CZ, X: China-TJ). 4. Model No.: CNY17-1, CNY17-2, CNY17-3, CNY17-4 4/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES 2. TAPING DIMENSIONS CNY17-1S-TA, CNY17-2S-TA, CNY17-3S-TA, CNY17-4S-TA : CNY17-1S-TA1, CNY17-2S-TA1, CNY17-3S-TA1, CNY17-4S-TA1 : Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment Package Type TA/TA1 Quantities (pcs) 1000 5/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES 4. RATING AND CHARACTERISTICS 4.1 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Rating Unit Forward Current IF 60 mA Reverse Voltage VR 6 V Power Dissipation P 100 mW Junction Temperature TJ 125 °C Collector - Emitter Voltage VCEO 70 V Emitter - Collector Voltage VECO 7 V Collector - Base Voltage VCBO 70 V Collector Current IC 150 mA Collector Power Dissipation PC 150 mW Total Power Dissipation Ptot 250 mW *1 Isolation Voltage Viso 5000 Vrms Operating Temperature Topr -55 ~ +100 °C Storage Temperature Tstg -55 ~ +150 °C *2 Soldering Temperature Tsol 260 °C Input Output *1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. For 10 Seconds 6/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES 4.2 ELECTRICAL OPTICAL CHARACTERISTICS at Ta=25°C PARAMETER INPUT SYMBOL MIN. TYP. MAX. UNIT Forward Voltage VF — 1.45 1.65 V IF=60mA Reverse Current IR — — 10 µA VR=6V Terminal Capacitance Ct — — 100 pF V=0, Collector Dark Current ICEO — — 50 nA VCE=10V, BVCEO 70 — — V Collector-Emitter Emitter-Collector Breakdown BVECO 7 — — V IE=10µA Voltage IF=0 Collector-Base IC=0.1mA BVCBO 70 — — V IF=0 40 CNY17-1 Current Ratio — 63 CNY17-2 80 125 CTR *Transfer IF=0 IF=0 Breakdown Voltage IF=10mA % CNY17-3 100 CNY17-4 160 — 320 — — 0.3 VCE=5V 200 Collector-Emitter IF=10mA VCE(sat) TRANSFER f=1KHz IC=0.1mA Breakdown Voltage OUTPUT CONDITIONS V Saturation Voltage IC=2.5mA CHARACTERISTICS DC500V Isolation Resistance Riso 100 — — GΩ 40 ~ 60% R.H. Floating Capacitance Cf — — 2 pF V=0, Response Time (Rise) tr — 5 10 µs VCE=10V, Response Time (Fall) tf — 5 10 µs RL=100Ω * CTR = f=1MHz IC=2mA IC × 100% IF 7/15 Part No: CNY17-1 THRU CNY17-4 SERIES BNC-OD-FC002/A4 Rev.: - Photocoupler CNY17-1 THRU CNY17-4 SERIES 4.3 ISOLATION SPECIFICATION ACCORDING TO VDE Parameter Symbol Conditions Rating Unit 55/100/21 - 2 - 850 VPEAK tp=60s, qc
