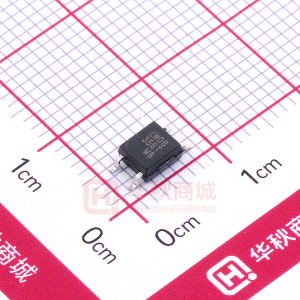

LTV-356T-V

L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only FEATURES * This specification shall be applied to photocoupler. Model No. LTV-356T as an option. * Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) * High input-output isolation voltage ( Viso = 3,750Vrms ) * High collector-emitter voltage ( VCEO = 80V ) * Employs double transfer mold technology * Subminiature type ( The volume is smaller than that of conventional DIP type by as far as 30% ) * Mini-flat package : 2.0mm profile : LTV-356T-V * UL approved ( No. E113898 ) * CUL approved ( No. E113898 , 01SC19287 ) * CSA approved ( No. 1243207 ) * FIMKO approved ( No. FI-16420 ) * NEMKO approved ( No. P01100403 ) * DEMKO approved ( No. 310475-01 ) * SEMKO approved ( No. 0109173 / 01-08 ) * VDE approved ( No. 094722 ) * RoHS compliance APPLICATIONS * Hybrid substrates that require high density mounting. * Programmable controllers Part No. : LTV-356T-V BNS-OD-C131/A4 Page : 1 of 13 L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only OUTLINE DIMENSIONS LTV-356T-V : 2.54±0.25 Pin No. and Internal connection diagram Date Code *1 4 3 4.40±0.2 FACTORY CODE. *2 BIN NO. *3 3.85±0.3 VDE 0884 IDENTIFICATION 1 1. Anode 2. Cathode 2 3. Emitter 4. Collector 5.30±0.3 0.2±0.05 2.00±0.2 *1. 2-digit date code. *2. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). *3. Rank shall be or shall not be marked. Part No. : LTV-356T-V BNS-OD-C131/A4 0.10±0.1 0.40±0.1 7.00+0.2 -0.7 Page : 2 of 13 L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only TAPING DIMENSIONS Description Tape wide Pitch of sprocket holes Distance of compartment Distance of compartment to compartment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 12 ± 0.3 ( .47 ) 4 ± 0.1 ( .15 ) 5.5 ± 0.1 ( .217 ) 2 ± 0.1 ( .079 ) 8 ± 0.1 ( .315 ) Part No. : LTV-356T-V BNS-OD-C131/A4 Page : 3 of 13 L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only ABSOLUTE MAXIMUM RATING ( Ta = 25°C ) PARAMETER Forward Current INPUT Reverse Voltage Power Dissipation Collector - Emitter Voltage Emitter - Collector Voltage OUTPUT Collector Current Collector Power Dissipation Total Power Dissipation *1 Isolation Voltage Operating Temperature Storage Temperature *2 Soldering Temperature Junction Temperature IC PC Ptot Viso Topr Tstg Tsol Tj 50 150 170 3,750 -55 ~ +110 -55 ~ +150 260 125 mA mW mW Vrms °C °C °C °C SYMBOL IF VR P VCEO VECO RATING 50 6 70 80 6 UNIT mA V mW V V *1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. For 10 Seconds Part No. : LTV-356T-V BNS-OD-C131/A4 Page : 4 of 13 L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only ELECTRICAL - OPTICAL CHARACTERISTICS ( Ta = 25°C ) PARAMETER Forward Voltage INPUT Reverse Current Terminal Capacitance Collector Dark Current Collector-Emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Collector Current *1 Current Transfer Ratio Collector-Emitter Saturation Voltage TRANSFER CHARACTERISTICS Isolation Resistance Floating Capacitance Response Time (Rise) Response Time (Fall) SYMBOL MIN. TYP. MAX. UNIT VF IR Ct ICEO BVCEO — — — — 80 1.2 — 30 — — 1.4 10 250 100 — V µA pF nA V CONDITIONS IF=20mA VR=4V V=0, f=1KHz VCE=20V, IF=0 IC=0.1mA IF=0 IE=10µA IF=0 IF=5mA VCE=5V IF=20mA IC=1mA DC500V 40 ~ 60% R.H. V=0, f=1MHz VCE=2V, IC=2mA RL=100Ω OUTPUT BVECO IC CTR VCE(sat) 6 2.5 50 — — — — — — 30 600 0.2 V mA % V Ω pF µs µs Riso Cf tr tf 5×1010 1×1011 — — — 0.6 4 3 — 1 18 18 *1 CTR = IC × 100% IF Part No. : LTV-356T-V BNS-OD-C131/A4 Page : 5 of 13 L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only RANK TABLE OF CURRENT TRANSFER RATIO CTR MODEL NO. RANK MARK A B CTR ( % ) 80 ~ 160 130 ~ 260 200 ~ 400 300 ~ 600 50 ~ 600 LTV-356T-V C D A or B or C or D or No mark IF = 5 mA CONDITIONS VCE = 5 V Ta = 25 °C Part No. : LTV-356T-V BNS-OD-C131/A4 Page : 6 of 13 L ITE- O N TECH NO LO G Y CO RP O RATIO N Property of LITE-ON Only ISOLATION SPECIFICATION ACCORDING TO VDE 0884 Parameter Class of environmental test Pollution Maximum Operating Isolation Voltage Partial Discharge Diagram 1 Test Voltage (Between Input and Diagram 2 Output) Maximum Over-voltage Safety Maximum Ratings 1) Case Temperature 2) Input Current 3) Electric Power (Output or Total Power Issipation) Symbol VIORM Conditions DIN IEC68 DIN VDE0110 tp=60s, qc
