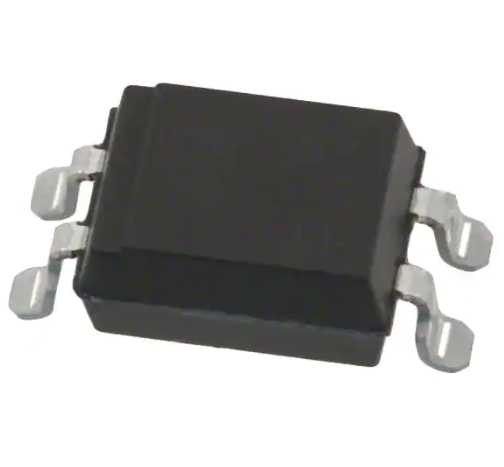

LTV-817S-TA1-D

Photocoupler Product Data Sheet LTV-817 (M, S, S-TA, S-TA1, S-TP) Series Spec No.: DS70-2012-0050 Effective Date: 10/17/2015 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler LTV-8x7 Series 1. DESCRIPTION 1.1 Features   Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms )   Response time ( tr : TYP. 4s at VCE = 2V, IC = 2mA, RL = 100 ) Dual-in-line package : LTV-817 : 1-channel type LTV-827 : 2-channel type LTV-847 : 4-channel type  Wide lead spacing package : LTV-817M : 1-channel type LTV-827M : 2-channel type LTV-847M : 4-channel type  Surface mounting package : LTV-817S : 1-channel type LTV-827S : 2-channel type LTV-847S : 4-channel type  Tape and reel packaging : LTV-817S-TA : 1-channel type LTV-817S-TA1 : 1-channel type LTV-817S-TP : 1-channel type LTV-827S-TA1 : 2-channel type  Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A CQC GB4943.1-2011/ GB8898-2011 (meet Altitude up to 5000m) Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO) BSI    RoHS Compliance All materials be used in device are followed EU RoHS directive (No. 2011/65/EU). ESD pass HBM 8000V/MM2000V MSL class1 1.2 Applications   Hybrid substrates that require high density mounting. Programmable controllers 1/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 2. PACKAGE DIMENSIONS 2.1 LTV-817 2.3 LTV-817S 2.2 LTV-817M Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. “●” for halogen free option. 6. “4”or”V” for VDE option. Dimensions in millimeters(inches). 2/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 2.4 2.6 LTV-827 2.5 LTV-827M LTV-827S Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. “●” for halogen free option. 6. VDE option shall be . Dimensions in millimeters(inches). 3/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 2.7 LTV-847 2.8 LTV-847M 2.9 LTV-847S Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. “●” for halogen free option. 6. VDE option shall be . Dimensions in millimeters(inches). 4/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 3. TAPING DIMENSIONS 3.1 LTV-817S-TA 3.2 LTV-817S-TA1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment 3.3 Quantities Per Reel Package Type TA/TA1 Quantities (pcs) 1000 5/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 3.4 LTV-817S-TP Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) Distance of compartment Distance of compartment to compartment F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 8±0.1 (0.472) 3.5 Quantities Per Reel Package Type TP Quantities (pcs) 2000 6/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 3.6 LTV-827S-TA 3.7 LTV-827S-TA1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment 3.8 Quantities Per Reel Package Type TA/TA1 Quantities (pcs) 1000 7/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 4. RATING AND CHARACTERISTICS 4.1 Absolute Maximum Ratings at Ta=25°C Parameter Input Symbol Rating Unit Forward Current IF 50 mA Reverse Voltage VR 6 V Power Dissipation P 70 mW Peak Forward Current (100μs pulse, 100Hz frequency) IFP 1 A Thermal Resistance Junction-Ambient RthJ-A 325 o C/W Thermal Resistance Junction-Case RthJ-C 200 o C/W Collector - Emitter Voltage VCEO 35 V Emitter - Collector Voltage VECO 6 V Collector Current IC 50 mA Collector Power Dissipation PC 150 mW Total Power Dissipation Ptot 200 mW Isolation Voltage Viso 5000 Vrms Operating Temperature (LTV-827/847) Topr -30 ~ +100 o C Operating Temperature (LTV-817) Topr -50 ~ +110 o C Storage Temperature Tstg -55 ~ +125 o C 260 o C Output 1. Soldering Temperature 1. AC For 1 Minute, Tsol R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. 8/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 4.2 ELECTRICAL OPTICAL CHARACTERISTICS at Ta=25°C Parameter Input Symbol Min. Typ. Max. Unit Forward Voltage VF — 1.2 1.4 V IF=20mA Reverse Current IR — — 10 A VR=4V Terminal Capacitance Ct — 30 250 pF V=0, f=1KHz Collector Dark Current ICEO — — 100 nA VCE=20V, IF=0 BVCEO 35 — — V IC=0.1mA, IF=0 BVECO 6 — — V IE=10A, IF=0 IC 2.5 — 30 mA Collector-Emitter Output Test Condition Breakdown Voltage Emitter-Collector Breakdown Voltage Collector Current IF=5mA, VCE=5V 1. Current Transfer Ratio CTR 50 — 600 % VCE(sat) — 0.1 0.2 V Riso 51010 11011 —  Collector-Emitter IF=20mA, IC=1mA Saturation Voltage Isolation Resistance TRANSFER DC500V, 40 ~ 60% R.H. CHARACTERISTICS Floating Capacitance Cf — 0.6 1 pF Cut-off Frequency fc — 80 — kHz 40 ~ 60% R.H. V=0, f=1MHz VCE=5V, IC=2mA RL=100,-3dB Response Time (Rise) Response Time (Fall) 1. CTR  IC IF tr tf — — 4 3 18 18 s s VCE=2V, IC=2mA RL=100,  100% 9/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 5. RANK TABLE OF CURRENT TRANSFER RATIO LTV-817 LTV-827 LTV-847 CTR Rank Min Max L 50 100 A 80 160 B 130 260 C 200 400 D 300 600 L or A or B or C or D 50 600 No Bin 50 600 B 130 260 C 200 400 D 300 600 BC 130 400 CD 200 600 No Bin 50 600 BC 130 400 CD 200 600 Condition IF=5mA, VCE=5V, Ta=25oC 10/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 6. CHARACTERISTICS CURVES Fig.1 Forword Current vs. Ambient Temperatute 50 Forward current IF(mA) 40 30 20 140 120 40 100 30 20 10 10 0 -30 0 -60 -40 Collector Power dissipation Pc (mW) 50 160 PC - Collecter Power Dissipation - mW 60 IF - Forward Current - mA 60 Fig.2 Collector Power Dissiption vs. Ambient Temperature -20 0 0 20 25 50 40 60 75 80 100 125 o Ambient temperature o Ta ( C) 100 80 60 40 20 200 150 100 50 0 -30 0 120 -60 -40 -20 TA - Ambient Temperature - C 7mA 1mA 3mA 5mA 100 O Ta= 25 C 3 2 1 Forward current IF (mA) 4 10 1 10 15 75 C oC T = 115Ta= 200 TA = 75oC 50 C o 25 C 0C -25 C o A 100 TA = 25oC o TA = 0oC 50 TA = -55oC 20 10 5 0 0.1 0.6 1.0 0.5 0.8 1.5 2.0 2.5 3.0 1 Forward voltage1.2 VF (V) 1.4 Fig.6 Collector Current vs. Collector-emitter Voltage IF = 30mA o IC - Collector Emitter - mA Collector current Ic (mA) 70 VCE = 5V 140 30 80 VCE= 5V Ta= 25 C 160 60 50 120 100 40 80 30 60 20 40 20 TA = 25oC o Ta= 25 C 20mA 25 Pc(MAX.) 20 15 10mA IF = 10mA 10 PC MAX. 5mA IF = 5mA 5 10 0 1 2 1 5 10 20 10 Forward current IF (mA) IF - Forward Current - mA 1.6 VF - Forward Voltage - V 200 Current transfer ratio CTR (%) Normalized Current Transfer Ratio 120 1 5 Normalized to IF = 5mA 180 TA = 25oC 0.1 100 2 Fig.5 Current Transfer Ratio vs. Forward Current 0.01 80 o Forward current IF (mA) 0.1 100 125 60 o o 0 1 75 40 500 0 10 50 20 Fig.4 Forward Current vs. Forward Voltage IF - Forward Current - mA Ic= 0.5mA Collecotr-emitter saturation voltage VCE (sat) (V) 5 25 0 TA - Ambient Temperature - oC Fig.3 Collector-emitter Saturation Voltage vs. Forward Current 6 0 Ambient temperature Ta ( C) 50 100 IF = 1mA 0 0 0 0 2 1 2 3 4 4 5 6 7 6 8 Collector-emitter voltage VCE (V) 9 8 10 VCE(non-sat) - Non-Saturated Collector Emitter Voltage - V 11/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 1 0.8 0.6 0.4 0.2 I F =Normalized 5mA to 5mA, VCEI= F =5V VCE = 5V TA = 25oC 100 50 0 -30 0 0 25 50 75 100 125 o -40 -20 100 120 I F= 20mA Ic= 1mA IF = 5mA, IC = 1mA 0.14 0.12 0.12 0.1 0.10 IF = 10mA, IC = 1mA 0.08 0.08 0.06 0.06 0.04 0.04 IF = 20mA, IC = 1mA 0.02 0.02 0 -25 0 25 50 75 100 125 0 o Ambient temperature Ta ( C) -60 -40 -20 0 20 40 60 80 100 Fig.9 Collector Dark Current vs. Ambient Temperature Fig.10 Response Time vs. Load Resistance -5 500 10 120 TA - Ambient Temperature - oC TA - Ambient Temperature - oC VCE= 20V 200 100 -6 10 Response time ( s) Collector dark current I CEO (A) -60 Ambient Ta 0 20temperature 40 60( C) 80 0.14 0.16 VCE (sat) (V) Relative current transfer ratio (%) 150 -7 10 -8 10 -9 10 -10 10 VCE = 2V Ic= 2mA Ta= 25 C o 50 tr 20 10 td tf 5 ts 2 1 0.5 -11 10 -25 0 25 50 75 100 o 0.2 0.05 0.1 0.2 0.5 1 2 5 10 Test Circuit for Response Time Fig.11 Frequency Response VCE = 2V Ic= 2mA Ta= 25 C o 0 10 RL= 10k 1k 100 Test Circuit for Frequency Response 20 0.5 1 125 Load resistance R L(k ) Ambient temperature Ta ( C) Voltage gain Av (dB) Normalized Current Transfer Ratio 1.2 Fig.8 Collector-emitter Saturation Voltage vs. Ambient Temperature VCE(sat) - Saturated Collector-Emitter Collector-emitter voltage Voltagesaturation -V Fig.7 Relative Current Transfer Ratio vs. Ambient Temperature 2 5 10 20 50 100 500 Frequency f (kHz) 12/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 7. TEMPERATURE PROFILE OF SOLDERING 7.1 IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (TSmin) 150˚C - Temperature Max (TSmax) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL) 217˚C - Time (tL) 60 sec Peak Temperature (TP) 260˚C 3˚C / sec max. Ramp-up rate 3~6˚C / sec Ramp-down rate 20 sec Temperature ( C) Ramp-up TP 260 C TL 217 C Tsmax 200 C Ramp-down 60 sec Tsmin 150 C tL (Soldering) 25 C 60 ~ 120 sec ts (Preheat) 35~70 sec 13/16 Time (sec) Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 7.2 Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature: 260+0/-5˚C Time: 10 sec. Preheat temperature:25 to 140˚C Preheat time: 30 to 80 sec. 7.3 Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature: 380+0/-5˚C Time: 3 sec max. 14/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 8. RRECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD) 8.1 4 PIN 8.2 8 PIN 8.3 16PIN Note : Dimensions in millimeters. 15/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x7 Series 9. Naming rule LTV- 8X7(1)-(2)-( 3 )-G DEVICE PART NUMBER (1) No suffix = Dual-in-Line package M = Wide lead spacing package S = Surface mounting package - (2) TAPING TYPE(TA,TA1,TP or none) LTV-817 and LTV-827 have tape and reel solution (3) CTR RANK (A,B or none) (4) Halogen free option Example : LTV-817S-TA1-A-G, LTV-847S-A-G LTV 8X7(1)(2)(3)-V-G DEVICE PART NUMBER (1) No suffix = Dual-in-Line package M = Wide lead spacing package S = Surface mounting package (2) TAPING TYPE(TA,TA1,TP or none) LTV-817 and LTV-827 have tape and reel solution (3) CTR RANK (A,B or none) (4) VDE order option (5) Halogen free option Example : LTV817STA1A-V-G, LTV847SA-V-G 10. Notes:  LiteOn is continually improving the quality, reliability, function or design and LiteOn reserves the right to make changes without further notices.  The products shown in this publication are designed for the general use in electronic applications such as office automation equipment, communications devices, audio/visual equipment, electrical application and instrumentation.  For equipment/devices where high reliability or safety is required, such as space applications, nuclear power control equipment, medical equipment, etc, please contact our sales representatives.  When requiring a device for any ”specific” application, please contact our sales in advice.  If there are any questions about the contents of this publication, please contact us at your convenience.  The contents described herein are subject to change without prior notice.  Immerge unit’s body in solder paste is not recommended.  The contents described herein are subject to change without prior notice.  Immerge unit’s body in solder paste is not recommended. 16/16 Part No. : LTV-8x7 series BNC-OD-FC002/A4 Rev.: -
