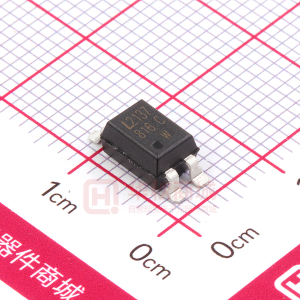

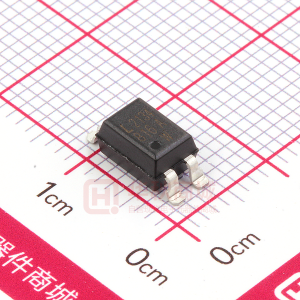

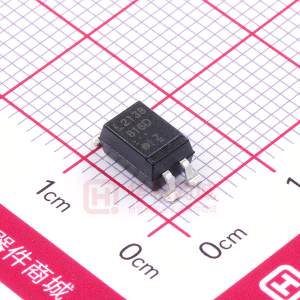

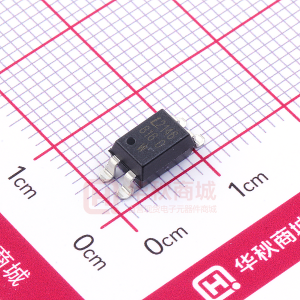

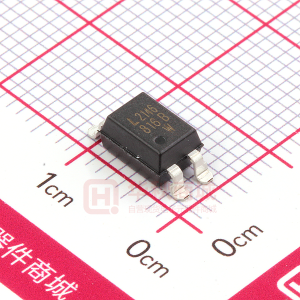

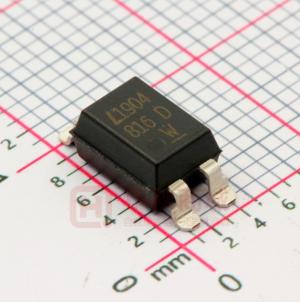

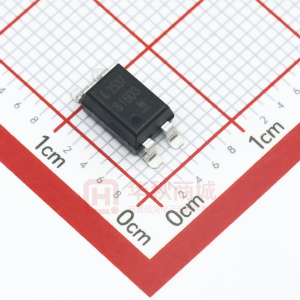

LTV816S-V

L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only FEATURES 1. This specification shall be applied to photocoupler. Model No. LTV-816 as an option. 2. Applicable Models (Business dealing name) * Dual-in-line package : LTV816-V : 1-channel type / LTV826-V : 2-channel type / LTV846-V : 4-channel type * Wide lead spacing package : LTV816M-V : 1-channel type / LTV826M-V : 2-channel type / LTV846M-V : 4-channel type * Surface mounting package : LTV816S-V : 1-channel type / LTV826S-V : 2-channel type / LTV846S-V : 4-channel type * Tape and reel packaging : LTV816STA1-V, LTV826STA1-V 3. The relevant models are the models Approved by VDE according to DIN VDE 0884:1992-06 Approved Model No.: LTV-816 / LTV-826 / LTV-846 / LTV-816M / LTV-826M / LTV-846M / LTV-816S / LTV-826S / LTV-846S VDE approved No.: 094722 (According to the specification DIN VDE 0884:1992-06) * Operating isolation voltage VIORM : 850V (Peak) * Transient voltage VTR : 6000V (Peak) * Pollution : 2 (According to VDE 0110-1 : 1997-04) * Clearances distance (Between input and output) : 7.0mm (MIN.) * Creepage distance (Between input and output) : 7.0mm (MIN.) * Isolation thickness between input and output : 0.4mm (MIN.) * Safety limit values Current (Isi) : 400mA (Diode side) Power (Psi) : 700mW (Phototransistor side) Temperature(Tsi) : 175oC In order to keep safety electric isolation of photocoupler, please set the protective circuit to keep within safety limit values when the actual application equipment troubled. * Indication of VDE 0884 approval prints "4" for 4-pin and " package. " for 8 & 16 pin on sleeve Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 1 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV816-V : LTV826-V : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Rank shall be or shall not be marked. Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 2 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV846-V : LTV816M-V : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Rank shall be or shall not be marked. Page : 3 of 15 Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV826M-V : LTV846M-V : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Rank shall be or shall not be marked. Page : 4 of 15 Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV816S-V : LTV826S-V : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Rank shall be or shall not be marked. Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 5 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV846S-V : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Rank shall be or shall not be marked. Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 6 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only TAPING DIMENSIONS LTV816STA1-V : LTV826STA1-V : Description Tape wide Pitch of sprocket holes Distance of compartment Distance of compartment to compartment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 16 ± 0.3 ( .63 ) 4 ± 0.1 ( .15 ) 7.5 ± 0.1 ( .295 ) 2 ± 0.1 ( .079 ) 12 ± 0.1 ( .472 ) Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 7 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only ABSOLUTE MAXIMUM RATING ( Ta = 25°C ) PARAMETER Forward Current INPUT Reverse Voltage Power Dissipation Collector - Emitter Voltage Emitter - Collector Voltage OUTPUT Collector Current Collector Power Dissipation Total Power Dissipation *1 Isolation Voltage Operating Temperature Storage Temperature *2 Soldering Temperature IC PC Ptot Viso Topr Tstg Tsol 50 150 200 5,000 -30 ~ +100 -55 ~ +125 260 mA mW mW Vrms °C °C °C SYMBOL IF VR P VCEO VECO RATING 50 6 70 80 6 UNIT mA V mW V V *1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. For 10 Seconds Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 8 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only ELECTRICAL - OPTICAL CHARACTERISTICS ( Ta = 25°C ) PARAMETER Forward Voltage INPUT Reverse Current Terminal Capacitance Collector Dark Current Collector-Emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Collector Current * Current Transfer Ratio Collector-Emitter Saturation Voltage Isolation Resistance Floating Capacitance Cut-Off Frequency Response Time (Rise) Response Time (Fall) SYMBOL MIN. TYP. MAX. UNIT VF IR Ct ICEO BVCEO — — — — 80 1.2 — 30 — — 1.4 10 250 100 — V µA pF nA V CONDITIONS IF=20mA VR=4V V=0, f=1KHz VCE=20V, IF=0 IC=0.1mA IF=0 IE=10µA IF=0 IF=5mA VCE=5V IF=20mA IC=1mA DC500V 40 ~ 60% R.H. V=0, f=1MHz VCE=5V, IC=2mA RL=100Ω, -3dB VCE=2V, IC=2mA RL=100Ω OUTPUT BVECO IC CTR VCE(sat) 6 2.5 50 — — — — 0.1 — 30 600 0.2 V mA % V Ω pF kHz µs µs TRANSFER CHARACTERISTICS Riso Cf fc tr tf 5×1010 1×1011 — — — — 0.6 80 4 3 — 1 — 18 18 * CTR = IC × 100% IF Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 9 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only RANK TABLE OF CURRENT TRANSFER RATIO CTR MODEL NO. RANK MARK L A B CTR ( % ) 50 ~ 100 80 ~ 160 130 ~ 260 200 ~ 400 300 ~ 600 50 ~ 600 130 ~ 260 130 ~ 400 200 ~ 400 200 ~ 600 50 ~ 600 LTV816-V C D L or A or B or C or D B B or C or BC LTV826-V LTV846-V C C or D or CD B、BC、C、CD or No mark IF = 5 mA CONDITIONS VCE = 5 V Ta = 25 °C Part No. : LTV816 / 826 / 846 (M, S, STA1)-V BNS-OD-C131/A4 Page : 10 of 15 L ITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only ISOLATION SPECIFICATION ACCORDING TO VDE 0884 Parameter Class of environmental test Pollution Maximum Operating Isolation Voltage Partial Discharge Diagram 1 Test Voltage (Between Input and Diagram 2 Output) Maximum Over-voltage Safety Maximum Ratings 1) Case Temperature 2) Input Current 3) Electric Power (Output or Total Power Issipation) Symbol VIORM Conditions DIN IEC68 DIN VDE0110 tp=60s, qc
