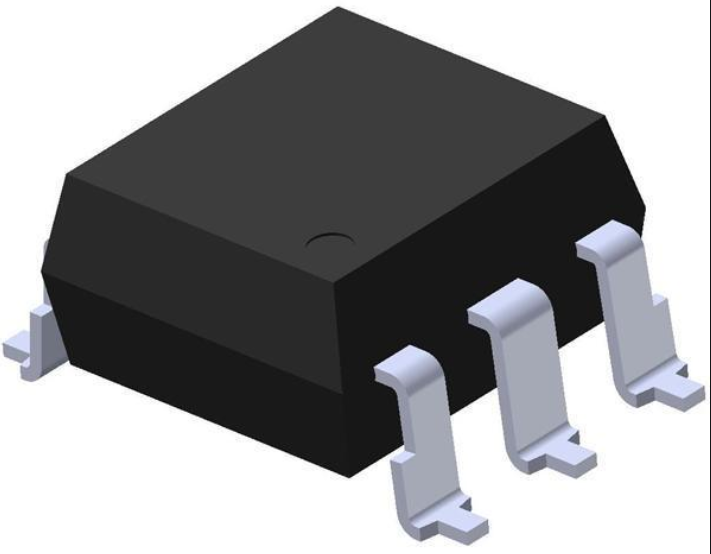

MOC3021S-TA1

Photocoupler Product Data Sheet MOC3020 THRU MOC3023 SERIES Spec No. :DS-70-99-0019 Effective Date: 06/16/2021 Revision: K LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler MOC302X series 1. DESCRIPTION 1.1 Features n n n Isolation voltage between input and output Viso : 5,000Vrms 6pin DIP photocoupler, triac driver output High repetitive peak off-state voltage VDRM : Min. 400V n n n n n High critical rate of rise of off-state voltage( dV/dt : MIN. 1000V / ms ) Dual-in-line package : MOC3020, MOC3021, MOC3022, MOC3023 Wide lead spacing package : MOC3020M, MOC3021M, MOC3022M, MOC3023M Surface mounting package : MOC3020S, MOC3021S, MOC3022S, MOC3023S Tape and reel packaging : MOC3020S-TA, MOC3021S-TA, MOC3022S-TA, MOC3023S-TA MOC3020S-TA1, MOC3021S-TA1, MOC3022S-TA1, MOC3023S-TA1 Safety approval UL 1577 n VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A CQC GB4943.1-2011/ GB8898-2011 (meet Altitude up to 5000m) Nordic Safety (DEMKO) n RoHS Compliance n n All materials be used in device are followed EU RoHS directive (No.2002/95/EC). MSL class1 Halogen free option 1.2 Applications n n n n n n n n AC Motor Drives AC Motor Starters E.M. Contactors Lighting Controls Solenoid/Valve Controls Solid State Relays Static Power Switches Temperature Controls 1/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 2. PACKAGE DIMENSIONS 2.1 MOC302X 2.2 MOC302XM 2.3 MOC302XS Notes : 1. 2-digit year code, example : 2016 = 16 2. 2-digit work week ranging from ‘01’ to ‘53’ 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. VDE option 5. IFT rank * Dimensions are in Millimeters and (Inches). 2/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 3. TAPING DIMENSIONS 3.1 MOC302XS-TA 3.2 MOC302XS-TA1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment 3.3 Quantities Per Reel Package Type MOC302XS series Quantities (pcs) 1000 3/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 4. RATING AND CHARACTERISTICS 4.1 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Rating Unit Forward Current IF 50 mA Reverse Voltage VR 6 V Junction Temperature TJ 125 Power Dissipation P 70 mW VDRM 400 V ITSM 1 A Junction Temperature TJ 125 Collector Power Dissipation PC 300 mW Total Power Dissipation Ptot 330 mW Isolation Voltage Viso 5000 Vrms Operating Temperature Topr -40 ~ +110 o C Storage Temperature Tstg -55 ~ +150 o C 260 o C Input Off-State Output Terminal Voltage o C Peak Repetitive Surge Current Output 1. 2. 1. AC For 1 Minute, ( PW=1ms, 120pps ) Soldering Temperature Tsol o C R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. 2. For 10 Seconds 4/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 4.2 Recommended Operating Conditions (Note) Characteristics Supply Voltage Symbol Min. Typ. Max. Unit VAC - - 120 Vac 22.5 25 30 mA 15 20 30 mA 7.5 10 30 mA -25 - 85 °C MOC3021 Forward Current MOC3022 IF MOC3023 Operating Temperature Topr Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the device. Additionally, each item is an independent guideline respectively. In developing designs using this product, please confirm specified characteristics shown in this document. 5/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 4.3 Electrical Optical Characteristics at Ta=25°C Parameter Symbol Min. Typ. Max. Unit Test Condition Forward Voltage VF — 1.15 1.4 V IF=20mA Reverse Current IR — 0.05 10 mA VR=6V IDRM — 10 100 nA VDRM = 400V VTM — — 3.0 V ITM=100 mA Peak dv/dt 1000 — — V/ms — — 15 — — 10 Input Peak Blocking Current, Either 1 Direction Peak On-State Voltage, Either Output Direction Critical rate of Rise of Off2 Vin=240Vrms State Voltage MOC3021 Led Trigger Current, Current Required to MOC3022 IFT Main Terminal mA Voltage = 3V Latch Output, Couple Either Direction MOC3023 — — 5 — 200 — Holding Current, Either IH mA Direction *1. Test voltage must be applied within dv/dt rating. *2. This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. 6/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 5. CHARACTERISTICS CURVES (TYPICAL PERFORMANCE) Fig.1 Forward Current vs. Ambient Temperature 60 40 30 20 40 30 20 10 10 0 -40 -20 0 -40 -20 0 80 60 40 40 60 80 o 100 0.05 0 -40 -20 0 20 40 60 80 100 120 0 20 40temperature 60 80 120 Ambient Ta ( C)100 0 120 Ambient temperature Ta ( C) 0.10 20 20 40 60 80 100 120 0 20 100 ITM , on-state current (A) 50 Forward current I F (mA) 50 120 ITM - On State Current - (mA) 60 IF - Forward Current - (mA) Fig.2 On-state Current vs. Ambient Temperature -40 -20 o TA - Ambient Temperature - oC TA - Ambient Fig.3 Normalized Minimum Trigger Current Fig.3 Trigger Current vs. Ambient Temperature vs Ambient Temperature 1.4 1.2 1 0.8 0.6 0.4 0.2 IF -Forward Current - mA 1.6 8 6 4 2 0 0 -40 -20 20 0 100 100 VP= 6V RL= 100 VTM=3V Normalized to TA =25 oC Forward current IF (mA) Minimum trigger current IFT (mA) N.IFT - Normalized Trigger LED Current Fig.4 Forward Current vs. Forward Voltage 10 2 1.8 10 1 10 0.4 0.8 0.6 o 0.4 0.2 0 2.2 1.8 1.4 1.0 20 -40 -20 0 40 60 80 20 Ambient 40 temperature 60 80 Ta ( C)100 TA - Ambient Temperature - oC 1.6 VP= 6V 1 120 0.1 0.01 0.1 100 o 2.0 1.4 Normalized to TA =25oC Holding current IH (mA) 0.6 N.IH - Normalized Holding Current On-state voltage VT (V) N.VTM - Normalized On-State Voltage IF=10mA, ITM=100mA =25oC Normalized to TA2.6 1 0.8 0.8 1.2 1.6 1 1.2 Forward voltage VF (V) 1 10 IT= 100mA 1.2 o Fig.6 Normalized Holding Current vs. Current Fig.6 Holding Ambient Temperature vs Ambient Temperature 3.0 1.4 o VF - Forward Voltage - V Fig.5Normalized On-state Voltage vs. Ambient Fig.5 On-state Voltage Temperature vs Ambient Temperature 1.8 1.6 o 60 C 40 C 20 C 1 0.1 100 40 60 80 20 40 60 80 100 120 Ambient temperature ( C) TA=110oC TA=75oC o TA=25o80 C C o oC TA=0100 C TA=-40oC TA - Ambient Temperature - oC 2 Temperature - oC 20 -40 -20 40 60 80 100 0 Ambient 20 Temperature 40 60Ta ( C)80 o 100 120 TA - Ambient Temperature - oC 7/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series Fig.7 Off-state Current vs Ambient Temperature Fig.8 On-state Current vs On-state Voltage 1000 1000 Normalized to TA=25oC ITM - On-State Current - mA N. IDRM - Normalized Peak Off-state Current VDRM=Rated VDRM 100 10 1 0.1 -40 -20 0 20 40 60 80 TA - Ambient Temperature - oC 100 120 IF=Rated IFT TA = 25oC 100 10 1 1 1.5 2 2.5 3 VTM - On-State Voltage - V 8/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 6. TEMPERATURE PROFILE OF SOLDERING 6.1 IR Reflow soldering (JEDEC-STD-020E compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (TSmin) 150˚C - Temperature Max (TSmax) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL) 217˚C - Time (tL) 60 sec Peak Temperature (TP) 260˚C Ramp-up rate 3˚C / sec max. Ramp-down rate 3~6˚C / sec 20 sec Temperature ( C) Ramp-up TP 260 C TL 217 C Tsmax 200 C Ramp-down 60 sec tL (Soldering) Tsmin 150 C 25 C 60 ~ 120 sec ts (Preheat) 35~70 sec 9/12 Time (sec) Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 6.2 Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature: 260+0/-5˚C Time: 10 sec. Preheat temperature:25 to 140˚C Preheat time: 30 to 80 sec. 6.3 Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature: 380+0/-5˚C Time: 3 sec max. 10/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 7. RRECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD) Unit: mm 11/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I Photocoupler MOC302X series 8. NAMING RULE MOC302(X)(1)-(2)-G DEVICE PART NUMBER (MOC302X) Please refer to Electrical Optical Characteristics Table on Page 6 (1) FORM TYPE (S, M or none) (2) TAPING TYPE (TA, TA1) (3) Halogen free Example : MOC3021S-TA1-G MOC302(X)(1)(2)-V-G DEVICE PART NUMBER (MOC302X) Please refer to Electrical Optical Characteristics Table on Page 6 (1) FORM TYPE (S, M or none) (2) TAPING TYPE (TA, TA1) (3) VDE option (4) Halogen free Example : MOC3021STA1-V-G 9. NOTES n LiteOn is continually improving the quality, reliability, function or design and LiteOn reserves the right to make changes without further notices. n The products shown in this publication are designed for the general use in electronic applications such as office automation equipment, communications devices, audio/visual equipment, electrical application and instrumentation. n For equipment/devices where high reliability or safety is required, such as space applications, nuclear power control equipment, medical equipment, etc, please contact our sales representatives. n When requiring a device for any ”specific” application, please contact our sales in advice. n If there are any questions about the contents of this publication, please contact us at your convenience. n The contents described herein are subject to change without prior notice. n Immerge unit’s body in solder paste is not recommended. 12/12 Part No. : MOC302X Series BNS-OD-FC002/A4 Rev. : I
