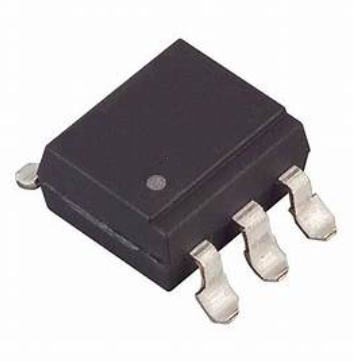

MOC3083S-TA1

Photocoupler Product Data Sheet MOC3083 SERIES Spec No.: DS70-2001-027 Effective Date: 11/30/2016 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler MOC308X series 1. DESCRIPTION 1.1 Features   Isolation voltage between input and output Viso : 5,000Vrms 6pin DIP zero-cross optoisolators triac driver output        High repetitive peak off-state voltage VDRM : Min. 800V High critical rate of rise of off-state voltage( dV/dt : MIN. 1000V / s ) Dual-in-line package : MOC3081 / MOC3082 / MOC3083 Wide lead spacing package : MOC3081M / MOC3082M / MOC3083M Surface mounting package : MOC3081S / MOC3082S / MOC3083S Tape and reel packaging : MOC3081S-TA1 / MOC3082S-TA1 / MOC3083S-TA1 Safety approval UL 1577 cUL CA5A VDE DIN EN60747-5-5 (VDE 0884-5) RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC). MSL class1   1.2 Applications         AC Motor Drives AC Motor Starters E.M. Contactors Lighting Controls Solenoid/Valve Controls Solid State Relays Static Power Switches Temperature Controls 1/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 2. PACKAGE DIMENSIONS 2.1 MOC308X 2.3 MOC308XS 2.2 MOC308XM Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. VDE option 5. IFT rank * Dimensions are in Millimeters and (Inches). 2/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 3. TAPING DIMENSIONS 3.1 MOC308XS-TA 3.2 MOC308XS-TA1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment 3.3 Quantities Per Reel Package Type MOC308XS series Quantities (pcs) 1000 3/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 4. RATING AND CHARACTERISTICS 4.1 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Rating Unit Forward Current IF 50 mA Reverse Voltage VR 6 V Junction Temperature TJ 125 Power Dissipation P 120 mW Off-State Output Terminal Voltage VDRM 800 V On-State RMS Current ID(RMS) 100 mA ITSM 1 A Junction Temperature TJ 125 Collector Power Dissipation PC 150 mW Total Power Dissipation Ptot 250 mW Isolation Voltage Viso 5000 Vrms Operating Temperature Topr -40 ~ +110 o C C C Input o C Peak Repetitive Surge Current Output ( PW=1ms, 120pps ) 1. 2. 1. AC For 1 Minute, o Storage Temperature Tstg -55 ~ +150 o Soldering Temperature Tsol 260 o C R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. 2. For 10 Seconds 4/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 4.2 ELECTRICAL OPTICAL CHARACTERISTICS at Ta=25°C Symb Parameter Min. Typ. Max. Unit Test Condition ol Forward Voltage VF — 1.2 1.4 V IF=20mA Reverse Current IR — 0.05 10 A VR=6V IDRM — — 500 nA VDRM = 800V VTM — — 3.0 V ITM=100 mA Peak dv/dt 1000 — — V/s Vin=240Vrms — — 15 — — 10 mA Main Terminal Voltage = 3V — — 5 — 400 — Input Peak Blocking Current, Either 1 Direction Peak On-State Voltage, Either Output Direction Critical rate of Rise of Off-State 2 Voltage Led Trigger Current, MOC3081 Current Required to 3 Couple Latch Output, Either Direction MOC3082 IFT MOC3083 Holding Current, Either Direction IH A IF=Rated IFT, MT1-MT2 Inhibit Voltage VINH — 5 20 Volts ZERO Voltage above which device will not trigger. CROSSING Leakage in Inhibited State IDRM2 — — 500 A IF = Rated IFT, Rated VDRM, Off State *1. Test voltage must be applied within dv/dt rating. *2. This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. *3. All devices are guaranteed to trigger at an I F value less than or equal to max IFT. Therefore, recommended operating IF lies between max IFT, 15 mA for MOC3081, 10 mA for MOC3082, 5 mA for MOC3083, and absolute max IF (50mA). 5/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 5. CHARACTERISTICS CURVES (TYPICAL PERFORMANCE) Fig.1 Forward Current vs. Ambient Temperature Fig.2 On-state Current vs. Ambient Temperature 50 ITM , on-state current (A) Forward current I F (mA) 60 40 30 20 10 0 -40 -20 0 0.10 0.05 0 -40 -20 20 40 60 80 100 120 o 20 40 60 80 100 120 Ambient temperature Ta ( C) Fig.3 Minimum Trigger Current vs. Ambient Temperature Fig.4 Forward Current vs. Forward Voltage 10 100 VP= 6V RL= 100 8 Forward current I F (mA) Minimum trigger current I FT (mA) 0 o Ambient temperature Ta ( C) 6 4 2 0 o o 60 C o 40 oC 20 C 80 C o 100 C 10 1 20 40 60 80 100 0.4 o 0.8 1.2 1.6 Fig.5 On-state Voltage vs. Ambient Temperature Fig.6 Holding Current vs. Ambient Temperature 3.0 1 VP= 6V I TM= 100mA 2.6 Forward current I H (mA) On-state voltage VTM(V) 2.0 Forward voltage VF (V) Ambient temperature ( C) 2.2 1.8 1.4 1.0 0.1 0.01 20 40 60 80 100 o Ambient temperature Ta ( C) 20 40 60 80 100 o Ambient Temperature Ta ( C) 6/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 7/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 6. TEMPERATURE PROFILE OF SOLDERING 6.1 IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (TSmin) 150˚C - Temperature Max (TSmax) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL) 217˚C - Time (tL) 60 sec Peak Temperature (TP) 260˚C 3˚C / sec max. Ramp-up rate 3~6˚C / sec Ramp-down rate 20 sec Temperature ( C) Ramp-up TP 260 C TL 217 C Tsmax 200 C Ramp-down 60 sec Tsmin 150 C tL (Soldering) 25 C 60 ~ 120 sec ts (Preheat) 35~70 sec 8/11 Time (sec) Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 6.2 Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature: 260+0/-5˚C Time: 10 sec. Preheat temperature:25 to 140˚C Preheat time: 30 to 80 sec. 6.3 Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature: 380+0/-5˚C Time: 3 sec max. 9/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 7. RRECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD) Unit: mm 10/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : - Photocoupler MOC308X series 8. NAMING RULE MOC308(X)(1)-(2) DEVICE PART NUMBER (MOC308X) Please refer to Electrical Optical Characteristics Table on Page P5 (1) FORM TYPE (S, M or none) (2) TAPING TYPE (TA, TA1) Example : MOC3081S-TA1 MOC308(X)(1)(2)-V DEVICE PART NUMBER (MOC308X) Please refer to Electrical Optical Characteristics Table on Page P5 (1) FORM TYPE (S, M or none) (2) TAPING TYPE (TA, TA1) (3) VDE option Example : MOC3081STA1-V 9. NOTES  LiteOn is continually improving the quality, reliability, function or design and LiteOn reserves the right to make changes without further notices.  The products shown in this publication are designed for the general use in electronic applications such as office automation equipment, communications devices, audio/visual equipment, electrical application and instrumentation.  For equipment/devices where high reliability or safety is required, such as space applications, nuclear power control equipment, medical equipment, etc, please contact our sales representatives.  When requiring a device for any ”specific” application, please contact our sales in advice.  If there are any questions about the contents of this publication, please contact us at your convenience.  The contents described herein are subject to change without prior notice.  Immerge unit’s body in solder paste is not recommended. 11/11 Part No.:MOC308X series BNC-OD-FC002/A4 Rev. : -
