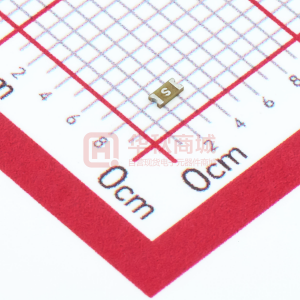

0467004.

Surface Mount Fuses Lead-Free Thin-Film RoHS Pb SlimLine™ Lead-Free 0603 Very Fast-Acting Fuse 467 Series NEW ® ® • RoHS compliant and Lead-Free. • Product is compatible with lead-free solders and higher temperature profiles. • High performance materials provide improved performance in elevated ambient temperature applications. • Product is marked on top surface with code to allow amperage rating identification without testing. • Low profile for height sensitive applications. • Flat top surface for pick-and-place operations. • Element covering material is resistant to industry standard cleaning operations. • Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products. • Alloy based element construction provides superior inrush withstand characteristics (I2t) over ceramic or glass based 0603 fuse products. Reference Dimensions: 1.60 (.063") .127 (.005") Sn .305 (.012") ELECTRICAL CHARACTERISTICS: % of Ampere Rating 100% 200% 300% Opening Time at 25°C 4 hours, Minimum 5 seconds, Maximum 0.2 seconds, Maximum .279 (.011") Sn Cu Coating MARKING CODE VARIES WITH AMPERAGE RATING (SEE CHART) .18 .813 (.032") Sn R (.007") REF. AGENCY APPROVALS: Recognized under the Components Program of Underwriters Laboratories and Certified by CSA. AGENCY FILE NUMBERS: UL E10480, CSA LR 29862 INTERRUPTING RATINGS: 0.25 – 1A 1.25 – 5A 50A at 32V AC/DC 35A at 32V AC/DC 1.09 (.043") 1.02 (.040") 3.20 (.126") 2.54 (.100") 1.02 (.040") .762 (.030") PHYSICAL SPECIFICATIONS: Materials: Body: Advanced High Temperature Substrate Terminations: 100% Copper/Nickel/Tin Element Cover Coat: Conformal Coating 1.09 (.043") WAVE SOLDER 1.09 (.043") REFLOW SOLDER Soldering Parameters(see page 3 for typical soldering profile): Wave Solder — 260°C, 10 seconds max Reflow Solder — 260°C, 30 seconds max 370 w w w. l i t t e l f u s e . c o m Surface Mount Fuses Lead-Free Thin-Film RoHS Pb SlimLine™ Lead-Free 0603 Very Fast-Acting Fuse 467 Series Average Time Current Curves ENVIRONMENTAL SPECIFICATIONS: Operating Temperature: -550C - + 900C * For operation above 90°C contact Littelfuse Vibration: Per MIL-STD-202F Insulation Resistance (After Opening): Greater than 10,000 ohms. 100 Resistance to Soldering Heat: Withstands 60 seconds above 2000C up to 2600C, maximum Thermal Shock: Withstands 5 cycles of -550 to 1250C PACKAGING SPECIFICATIONS: 8mm Tape and Reel per EIA-RS481-2 (IEC 286, part 3); 5,000 per reel, add package suffix, NR. 10 TIME IN SECONDS Patents: Patended Ordering Information: Catalog Number 0467.250 0467.375 0467.500 0467.750 0467 001. 0467 1.25 0467 01.5 0467 1.75 0467 002. 0467 02.5 0467 003. 0467 03.5 0467 004. 0467 005. 1 2 1 Measured at 10% of rated current, 25°C. Measured at rated voltage. w w w. l i t t e l f u s e . c o m 371 SURFACE MOUNT FUSES Ampere Rating .25 .375 .5 .75 1 1.25 1.5 1.75 2 2.5 3 3.5 4 5 Marking Code D E F G H J K L N O P R S T Nominal Voltage Rating 32 32 32 32 32 32 32 32 32 32 32 32 32 32 Nominal Resistance1 (Ω) 0.435 0.275 0.180 0.112 0.062 0.050 0.040 0.028 0.024 0.020 0.016 0.013 0.011 0.0085 Melting I 2t (A2 Sec.)2 0.0030 0.0053 0.0087 0.0171 0.0212 0.0518 0.0766 0.0903 0.1103 0.1440 0.2403 0.4306 0.5760 0.9000 0.1 0.01 3/4A 1A 1 1/4A 1 1/2A 1 3/4A 2A 2 1/2A 3A 3 1/2A 4A 5A 1/4A 3/8A 1/2A 0.001 0.1 1 10 CURRENT IN AMPERES 100 10
