0498200.M

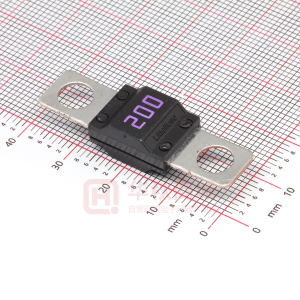

Preliminary Bolt-down Fuses Clear MIDI® Style Bolt-down Fuse Rated 32V Specifications Interrupting Rating: Voltage Rating : Operating Temperature Range: Packaging: 1000A @ 32 VDC 32 VDC - 40˚C to + 125˚C Series Serien 0498xxx.M Pack Size 1000 Time-Current Characteristics / Schmelzzeit-Grenzwerte Bolt-down Fuses % of Rating % des Nennstromes This MIDI style fuse offers a bolt-on space saving fuse for high current wiring protection and providees time delay characteristics with “Diffusion Pill Technology”. The MIDI® was designed and patented by Littelfuse. Diese MIDI® -Sicherung bietet eine platz sparende Schraubsicherung zum Schutz von Hochstrom-Verdrahtungen und eine definierte Verzögerungscharakteristik basiert auf unserer speziellen Diffusionstechnologie (Diffusionspille). Die MIDI® Sicherung wurde von Littelfuse entwickelt und patentiert. ® Opening Time Min / Max (s) Schmelzcharakteristik Min / Max (s) 30-125A –/– 360,000 s / – 14,400 s / – 90 s / 3,600 s 5 s / 100 s 0.5 s / 3 s 0.1 s / 1 s 150-200A – / 360,000 s –/– –/– –/– 1 s / 15 s 0.3 s / 3 s 0.1 s / 1 s 75 100 110 150 200 300 500 Part Number Artikel-Nr. 0498030.M 0498040.M 0498050.M 0498060.M 0498070.M 0498080.M 0498100.M 0498125.M 0498150.M 0498175.M 0498200.M Current Rating Nennstrom 30 A 40 A 50 A 60 A 70 A 80 A 100 A 125 A 150 A 175 A 200 A Color Kennfarbe Typ. Voltage Drop Typ. Spannungsfall 65 mV 65 mV 65 mV 68 mV 70 mV 58 mV 60 mV 71 mV 77 mV* 77 mV* 77 mV* Cold Resistance Kaltwiderstand 2.06 m 1.398 m 1.025 m 0.865 m 0.72 m 0.541 m 0.457 m 0.394 m 0.323 m 0.285 m 0.261 m I2 t 4200 10000 13000 21700 24000 24600 51300 73200 81900 100000 125000 * Parts with asterik are short circuit protectors only. © 2008 Littelfuse • Automotive Circuit Protection Products www.littelfuse.com 37 Bolt-down Fuses Preliminary Clear MIDI® Style Bolt-down Fuse Rated 32V 1000 100 TIME IN SECONDS 10 1 Bolt-down Fuses Dimensions in mm / Maße in mm 0.1 0.01 10 100 1000 10000 PART NUMBER 0498030.MXT 0498040.MXT 0498050.MXT 0498060.MXT 0498070.MXT 0498080.MXT 0498100.MXT 0498125.MXT 0498150.MXT 0498175.MXT 0498200.MXT AMP RATING 30 40 50 60 70 80 100 125 150 175 200 D.C.VOLT RATING 32 32 32 32 32 32 32 32 32 32 32 Color of Printing TOP BOTTOM ORANGE GREEN RED YELLOW BROWN WHITE BLUE PINK BLACK DARK GREEN VLOLET ORANGE GREEN RED YELLOW BROWN WHITE BLUE PINK GREY DARK GREEN VLOLET “A” mm (inches) .41 (.016) .41 (.016) .41 (.016) .41 (.016) .41 (.016) .41 (.016) 0.63 (.025) 0.63 (.025) 0.63 (.025) 0.63 (.025) 0.63 (.025) 30A 40A 50A 60A 70A 80A 100A 125A 150A 175A 200A “B” mm (inches) 4.0 (.157) 4.0 (.157) 4.0 (.157) 4.0 (.157) 4.0 (.157) 4.0 (.157) 4.3 (.169) 4.3 (.169) 4.3 (.169) 4.3 (.169) 4.3 (.169) “C” mm (inches) 8.0 (.315) 8.0 (.315) 8.0 (.315) 8.0 (.315) 8.0 (.315) 8.0 (.315) 8.3 (.327) 8.3 (.327) 8.3 (.327) 8.3 (.327) 8.3 (.327) 38 www.littelfuse.com © 2008 Littelfuse • Automotive Circuit Protection Products
