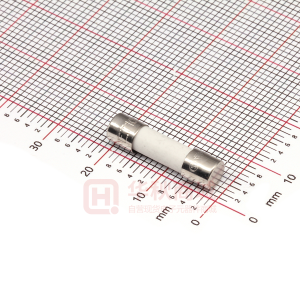

Next Previous Axial Lead and Cartridge Fuses Designed to IEC Standard 5 x 20 mm Time Lag Fuse (Slo-Blo ® Fuse) 215/221 Series ® ® D V E • Designed to International (IEC) Standards for use globally. • Meets the IEC 60127-2, Sheet 5 specification for Time Lag Fuses. • Available in Cartridge and Axial Lead Form. • Available in ratings of .2 to 10 amperes. • High breaking capacity. ELECTRICAL CHARACTERISTICS: % of Ampere Rating 150% 210% 275% 400% Ampere Rating 1– 3.15 4 – 6.3 1– 3.15 4 – 6.3 1– 3.15 4 – 6.3 1– 3.15 4 – 6.3 .2 – .4 .5 – 3.15 4 – 6.3 Opening Time 60 minutes, Minimum 60 minutes, Minimum 30 minutes, Maximum 30 minutes, Maximum 1 sec., Min.; 80 sec. Max. 1 sec., Min.; 80 sec. Max. .095 sec., Min.; 5 sec. Max. .150 sec., Min.; 5 sec. Max. .010 sec., Min.; .15 sec., Max. .010 sec., Min.; .1 sec., Max. .020 sec., Min.; .1 sec. Max. 215 000 215 000 XE 221 000 1 215 000 XW .635 (.025) 20±0.5 1000% 5 (.197) 20 (.787) 5.25 (.207) 22.5 MAX (.886) 40 (1.58) 5.02 ±0.5 10 ±2 25±0.5 AGENCY APPROVALS: Sheet V IEC 60127-2:* SEMKO approved 1A-6.3A. BSI and VDE approved 1.0-6.3 amps. METI approved 1-10A. Recognized under the Components Program of Underwriters Laboratories and recognized by CSA. INTERRUPTING RATING: 1500 amperes. ORDERING INFORMATION: Cartridge Catalog Number 215.200 215.250 215.315 215.400 215.500 215.630 215.800 215 001 215 1.25 215 01.6 215 002 215 02.5 215 3.15 215 004 215 005 215 06.3 215 008 215 010 Axial Lead Catalog Number 221.200 221.250 221.315 221.400 221.500 221.630 221.800 221 001 221 1.25 221 01.6 221 002 221 02.5 221 3.15 221 004 221 005 221 06.3 221 008 221 010 Ampere Rating .200* .250* .315* .400* .500* .630* .800* 1 1.25 1.6 2 2.5 3.15 4 5 6.3 8* 10* Voltage Rating 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 Nominal Resistance Cold Ohms 1.750 1.170 0.873 0.560 1.080 0.660 0.436 0.110 0.085 0.0588 0.043 0.0312 0.0220 0.0163 0.0125 0.0099 0.0078 0.0060 Nominal Melting I2t A2 Sec. 0.37 0.56 1.08 1.45 0.34 0.56 0.954 1.05 2.05 3.90 6.95 10.65 21.2 38.7 82.85 132.5 209.5 360.5 Average Time Current Curves 1A 1.25A 1.6A 2A 2.5A 3.15A 4A 5A 6.3A 8A 10A 100 10 8 AXIAL LEAD AND CARTRIDGE FUSES 1 10 CURRENT IN AMPERES 100 500 TIME IN SECONDS 1 1 0.1 0.01 *IEC Standards for 5 x 20mm fuses do not include ratings above 6.3 amperes, but are under consideration. IEC 60127-2, Sheet 5 does not include ratings below 1 ampere (under consideration by IEC). 0.001 0.05 0.1 221 Series is used for North American ordering. w w w. l i t t e l f u s e . c o m 297
