298

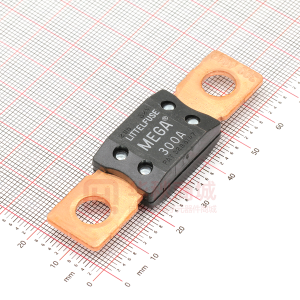

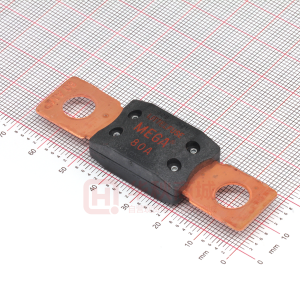

Blade Terminal & Special Purpose Fuses Low Voltage RoHS MEGA® Slo-Blo® Fuse Designed for high current circuit protection up to 250 amperes. Ideal for battery and UPS systems requiring ultra-high current protection. ELECTRICAL CHARACTERISTICS: % of Ampere Rating 100% 135% 200% 350% 600% Opening Time 4 Hours, Minimum 120 sec., Min.; 1800 sec., Max. 1 sec., Min.; 15 sec., Max. 0.3 sec., Min.; 5 sec., Max. 0.1 sec., Min.; 1 sec., Max. PHYSICAL SPECIFICATIONS: Materials: Body: Plastic Terminations: Copper PATENTED INTERRUPTING RATING: 2000A @ 32 VDC 50.8 (2.0") 19.05 (.75") (1.15") 68.58 (2.70") 10.67 (.42") 8.64 (.34") 16.26 (.64") 11.94 (.47") 1.02 (.04") ORDERING INFORMATION: Catalog Number 298 040 298 060 298 080 298 100 298 125 298 150 298 175 298 200 298 225 298 250 Ampere Rating (A) 40 60 80 100 125 150 175 200 225 250 Voltage Rating (VDC) 32 32 32 32 32 32 32 32 32 32 Stamp Color Code TBD TBD TBD Yellow Green Orange White Blue Tan Pink Nominal Cold Resistance (milliOhms) TBD TBD TBD 0.55 0.43 0.35 0.27 0.26 0.23 0.19 Minimum Melting I 2 t (A2 Sec.) TBD TBD TBD 31100 57800 100000 168000 204000 257000 389000 Average Time Current Curves 40A 60A 80A 100A 125A 150A 175A 200A 225A 250A 1000 100 MEGA® Fuse Holder ORDERING INFORMATION: Catalog Number 0298 1001 0298 2001 Version Single Holder Assembly Dual Holder Assembly 12 BLADE TERMINAL AND SPECIAL PURPOSE FUSES 10 100 1000 10000 CURRENT IN AMPERES TIME IN SECONDS 10 1 0.1 0.01 w w w. l i t t e l f u s e . c o m 455
