382

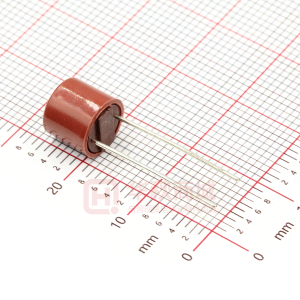

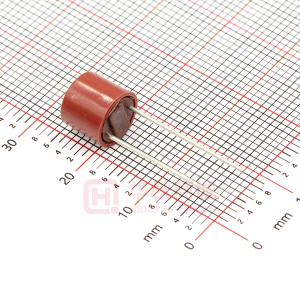

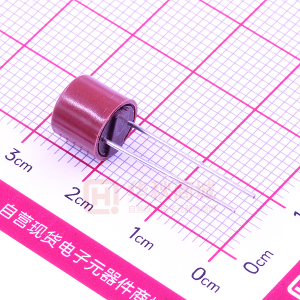

UBMINIATURE SUBMINIATURE FUSES No. 382 / TR5 ® 60127-3/IV, V, IEC 60127-3/IV, 250 V, T lead free T ime-Current Time Lag (T) Specifications Packaging Materials 000: Tape/Ammopack (1000 pcs.) 041: Short Leads - Bulk (1000 pcs.) Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V0 Round Pins: Copper, Sn plated -40 ºC to +85 ºC (consider de-rating) -40 ºC/+85 ºC/21 days (IEC 60068-1,-2-1,-2-2,-2-78) +10 ºC to +60 ºC relative humidity ≤ 75 % yearly average, without dew, maximum value for 30 days-95 % 24 cycles at 15 min. each (EN 60068-6) 10 - 60 Hz at 0.75 mm amplitude 60 - 2000 Hz at 10 g acceleration 10N (IEC 60068-2-21) Characteristic Standard IEC 60127-3/IV VDE SEMKO cULus Recognized METI-T-Mark METI-PSE CCC Lead Free 100A breaking capacity Reduced PCB space requirements Direct solderable or plug-in versions Internationally approved Low internal resistance Shocksafe casing Vibration resistant Halogen free Approvals Temperature Operating Temperature Climatic Category Stock Conditions Dimensions (mm) ∅ 8,5 max. 8 Features Vibration Resistance 0,5 min L ∅ 0,6 1 +0,1 5,08 WebLinks Lead Pull Strength Solderability Further info see: www.wickmanngroup.com www.wickmanngroup.com/download/ fuseology.pdf Holes in PCB Further application info see fuseology: 260 ºC, ≤ 3 s (Wave) 350 ºC, ≤ 3 s (Soldering Iron) 260 ºC, 10 s (IEC 60068-2-20) Soldering Heat Resistance Marking , 382, 250 V, T, Current Rating, Approvals Long Leads (L=18.8mm) Short Leads (L=4.3mm) Unit Weight 0.82 g (approx.) Time Limits for Pre-arcing Time Rated Current 1.00 A ... 6.30 A 1.5 x IN >1h 2.1 x IN < 2 min 2.75 x IN 4 x IN 10 x IN 400 ms ... 10 s 150 ms ... 3 s 20 ms ... 150 ms METI-TMark METI-PSE SEMKO cURus VDE 1.00 A 1.25 A 1.60 A 2.00 A 2.50 A 3.15 A 4.00 A 5.00 A 6.30 A* 1100 1125 1160 1200 1250 1315 1400 1500 1630 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 100A / 250 V AC 1 50-60Hz cos ϕ = 1.0 100 95 90 85 80 75 70 65 65 400 465 490 670 750 900 1200 1250 1400 3.0 4.5 9.0 12 22 32 58 90 105 • • • • • • • G G • • • • • • • • • • • • • • • • • • • • • • • • • • 1 Breaking capacity at UL: 50A at 250V G Expert Report * Conducting path min. 0.2mm2 Order Information 0 50114 Qty. Qty. OrderOrderNumber Series 382 Amp Code Packaging Specifications are subject to change without notice China Tel: +86 21 6432 5146 E-mail: sales@wickmann.cn WebSite Europe Tel: +49 2302 662-107 www.wickmanngroup.com E-mail: sales@wickmann.com Americas Tel: +1 404 699-7820 E-mail: service@wickmannusa.com Asia Tel: +852 26 14-1108 E-mail: sales@wickmann.com.hk CCC Permissible continuous operating current is ≤ 100 % at ambient temperature of 23 ºC (73.4 ºF). 100 Rated Amp Voltage Breaking Voltage Drop Power Dissipation Melting Integral Current Code Rating Capacity 1.0 x IN 1.5 x IN 10 x IN max. (mV) max. (mW) min. (A2s) Approvals • • • • • • • • • UBMINIATURE SUBMINIATURE FUSES TR5® / No. 382 I-t Characteristics (Min-Max Limit) IEC 60127-3/IV Time (sec.) 0 50114 WebSite Europe Tel: +49 2302 662-107 www.wickmanngroup.com E-mail: sales@wickmann.com 00 0,0 10 ,0 10 00 00 1,0 0 10 10 1 0 .1 1 0.0 01 0.0 1 1.5 2 I Fault / I Rated 3 4 5 6 7 8 9 10 15 Contact WICKMANN for individual I-t curves Americas Tel: +1 404 699-7820 E-mail: service@wickmannusa.com Asia Tel: +852 26 14-1108 E-mail: sales@wickmann.com.hk China Tel: +86 21 6432 5146 E-mail: sales@wickmann.cn
