MHS

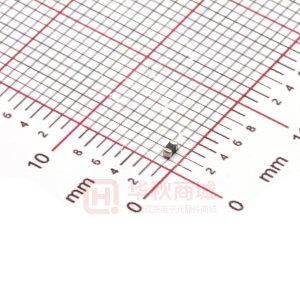

Surface Mount Varistors Multilayer High Speed Transient Voltage Surge Suppressor MHS Varistor Series The Multilayer High-Speed MHS Series is a very-low capacitance extension to the Littelfuse ML family of Transient Voltage Surge Suppression devices available in an 0402 and 0603-size surface mount chip. The MHS series provides protection from ESD and EFT in high-speed data-line and other high frequency applications. The low capacitance of the MHS Series permits usage in analog or digital circuits where it will not attenuate or distort the desired signal or data. Their small size is ideal for high-density printed circuit boards, being typically applied to protect intergrated circuits and other sensitive components. They are particularly well suited to suppress ESD events including those specified in IEC 61000-4-2 or other standards used for ElectroMagnetic Compliance (EMC) testing. The MHS series is manufactured from semiconducting ceramics and is supplied in a leadless, surface mount package. The MHS Series is also compatible with modern reflow and wave soldering processes. Littelfuse Inc. manufactures other Multilayer Varistor Series products, see the ML, MLE, MLN and AUML series data sheets. Features • 3pF & 12pF Capacitance Versions Suitable for High Speed Data-Rate Lines • ESD Rated to IEC 61000-4-2 (Level 4) • EFT/B Rated to IEC 61000-4-4 (Level 4) • Low Leakage Currents • -55oC to +125oC Operating Temperature Range • Inherently Bi-directional Applications • Data, Diagnostic I/O Ports • Universal Serial Bus (USB) • Video & Audio Ports • Portable/Hand-Held Products • Mobile Communications • Computer/DSP Products • Industrial Instruments Including Medical Absolute Maximum Ratings Continuous: For ratings of individual members of a series, see device ratings and specifications table. MHS SERIES UNITS V V O C O C Steady State Applied Voltage: DC Voltage Range (VM(DC)):V0402/0603MHS03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 42 V0402/0603MHS12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 18 Operating Ambient Temperature Range (TA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55 to + 125 Storage Temperature Range (TSTG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55 to + 150 1 Surface Mount Varistors Multilayer High Speed Transient Voltage Surge Suppressor MHS Varistor Series Device Ratings and Specifications MAX RATINGS (125°C) MAXIMUM NONREPETITIVE SURGE ENERGY (10/1000µS) PART NUMBER MAXIMUM CLAMPING VOLTAGE AT 1A (8X20µs) PERFORMANCE SPECIFICATIONS (25°C) MAXIMUM ESD CLAMP VOLTAGE (NOTE 1) (Note 2) 8kV CONTACT (Note 3) 15kV AIR MAXIMUM LEAKAGE CURRENT AT SPECIFIED DC VOLTAGE TYPICAL CAPACITANCE AT 1MHz (1V p-p) (NOTE 4) C (pF) 3 3 12 12 TYPICAL INDUCTANCE (from Impedance Analysis) 3.5V P (µA) 0.1 0.1 0.1 0.1 5.5V IL (µA) 0.15 0.15 0.15 0.15 9V IL (µA) 0.25 0.25 1.00 1.00 15V IL (µA) 0.50 0.50 5.00 5.00 WTM (J) (Vc) 110 110 55 55 Clamp (V) 300 300 125 125 Clamp (V) 400 400 160 160 L (nH)
