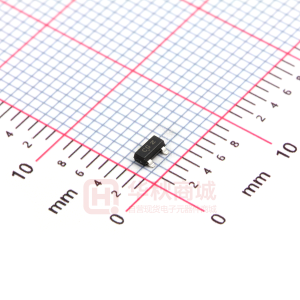

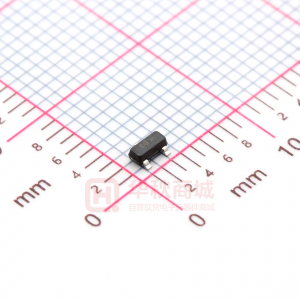

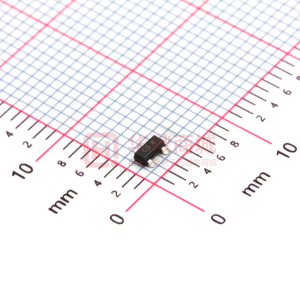

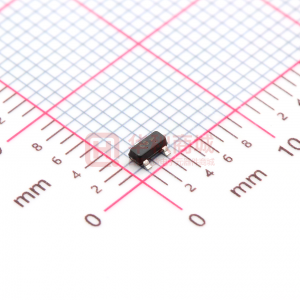

BAS70-04LT1

LESHAN RADIO COMPANY, LTD. Dual Series Schottky Barrier Diode These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. BAS70-04LT1 3 1 2 CASE 318–08, STYLE 11 SOT–23 (TO–236AB) * 70V SCHOTTKY BARRIER DIODES ANODE 1 CATHODE 2 • Extremely Fast Switching Speed • Low Forward Voltage — 0.75 Volts (Typ) @ IF = 10 mAdc 3 CATHODE/ANODE MAXIMUM RATINGS (TJ = 150°C unless otherwise noted) Rating Reverse Voltage Forward Power Dissipation @ TA = 25°C Derate above 25°C Operating Junction and Storage Temperature Range Symbol VR PF Value 70 225 1.8 TJ, Tstg –55 to +150 Unit Volts mW mW/°C °C ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) Characteristic Reverse Breakdown Voltage (IR = 10 µA) Total Capacitance (VR = 1.0 V, f = 1.0 MHz) Reverse Leakage (V R = 50 V) (VR = 70V) Forward Voltage (IF = 1.0 mAdc) Forward Voltage (IF = 10 mAdc) Forward Voltage (IF = 15 mAdc) Symbol V(BR)R CT IR VF VF VF Min 70 — — — — — — Max — 2.0 0.1 10 410 750 1.0 Unit Volts pF µAdc mVdc mVdc Vdc BAS70-04LT1–1/2 LESHAN RADIO COMPANY, LTD. BAS70–04LT1 100 100 IR, REVERSE CURRENT (µ A) 10 IF, FORWARD CURRENT (mA) 10 1.0 0.1 1.0 0.01 0.1 0.001 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 0 5.0 10 15 20 25 30 35 40 45 50 VF, FORWARD VOLTAGE (V) VR, REVERSE VOLTAGE (V) Figure 1. Typical Forward Current Figure 2. Reverse Current Versus Reverse Voltage 1.4 1.2 1.0 CT, CAPACITANCE (pF) 0.8 0.6 0.4 0.2 0 0 5.0 10 15 20 25 30 35 40 45 50 VR, REVERSE VOLTAGE (V) Figure 3. Typical Current BAS70-04LT1–2/2
