LESHAN RADIO COMPANY, LTD.
Schottky Barrier Diodes
These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.
BAT54HT1
30 VOLT SILICON HOT–CARRIERDETECTOR AND SWITCHING DIODES
1
• Extremely Fast Switching Speed • Low Forward Voltage – 0.35 Volts (Typ) @ I = 10 mAdc
F
2
1 CATHODE
2 ANODE

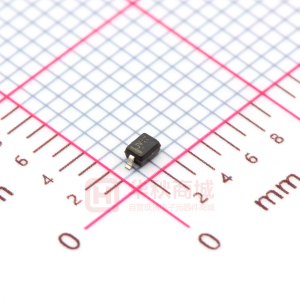

SOD– 323,CASE 477
MARKING DIAGRAM
ORDERINGINFORMATION
Device BAT54HT1 Package SOD–323 Shipping 3000/Tape & Reel
1
2
JV
Preferred: devices are recommended choices for future use and best overall value.
MAXIMUM RATINGS
Rating Reverse Voltage Symbol VR Value 30 Unit V
THERMAL CHARACTERISTICS
Characteristic Total Device Dissipation FR–5 Board,* TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Junction and Storage Temperature Range *FR–5 Minimum Pad Symbol PD Max 200 1.57 635 150 Unit mW mW/°C °C/W °C
RθJA TJ, Tstg
ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) (EACH DIODE)
Characteristic Reverse Breakdown Voltage (I R = 10 µA) Total Capacitance (V R = 1.0 V, f = 1.0 MHz) Reverse Leakage (V R = 25 V) Forward Voltage (I F = 0.1 mAdc) Forward Voltage (I F = 30 mAdc) Forward Voltage (I F = 100 mAdc) Reverse Recovery Time (I F = I R = 10 mAdc, I R(REC) = 1.0 mAdc, Figure 1) Forward Voltage (I F = 1.0 mAdc) Forward Voltage (I F = 10 mAdc) Forward Current (DC) Repetitive Peak Forward Current Non–Repetitive Peak Forward Current (t < 1.0 s) Symbol V(BR)R CT IR VF VF VF trr VF VF IF IFRM IFSM Min 30 — — — — — — — — — — — Typ — 7.6 0.5 0.22 0.41 0.52 — 0.29 0.35 — — — Max — 10 2.0 0.24 0.5 1.0 5.0 0.32 0.40 200 300 600 Unit Volts pF µ Adc Vdc Vdc Vdc ns Vdc Vdc mAdc mAdc mAdc
BAT54HT1–1/2
LESHAN RADIO COMPANY, LTD.
BAT54HT1
+10 V 820 Ω 2.0 k 0.1µF tr tp 10% t IF t rr t
100 µH
IF
0.1 µF
50 Ω OUTPUT PULSE GENERATOR
D.U.T.
50 Ω INPUT SAMPLING OSCILLOSCOPE
90% V INPUT SIGNAL
R
i
R(REC)
= 1.0 mA
IR
OUTPUT PULSE (I F = I R = 10 mA; MEASURED at i R(REC) = 1.0 mA)
Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (I F ) of 10mA. Notes: 2. Input pulse is adjusted so I R(peak) is equal to 10mA. Notes: 3. t p » t rr
Figure 1. Recovery Time Equivalent Test Circuit
100
1000
T A = 1 50°C
IF , FORWARD CURRENT (mA) IR , REVERSE CURRENT (µA)
100
10
150°C
T A = 1 25°C
10
1.0
125°C
1.0
T A = 8 5°C
0.1
85°C
25°C
– 40°C
–55°C
0.01
T A = 2 5°C
0.001 0 5 10 15 20 25 30
0.1 0 0.1 0.2 0.3 0.4 0.5 0.6
VF , FORWARD VOLTAGE (VOLTS)
VR , REVERSE VOLTAGE (VOLTS)
Figure 2. Forward Voltage
Figure 3. Leakage Current
14 12
CT TOTAL CAPACITANCE (pF)
10 8 6 4 2 0 0 5 10 15 20 25 30
VR , REVERSE VOLTAGE (VOLTS)
Figure 4. Total Capacitance
BAT54HT1–2/2
