BAT54LT1

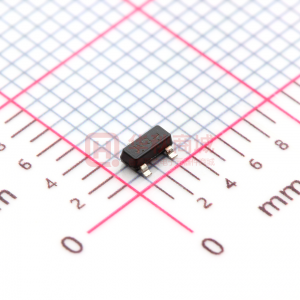

LESHAN RADIO COMPANY, LTD. Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. • Extremely Fast Switching Speed • Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc BAT54LT1 30 VOLTS SILICON HOT-CARRIER DETECTOR AND SWITCHING DIODES 3 1 2 ORDERING INFORMATION Device BAT54LT1 Package SOT–23 Shipping 3000/Tape & Reel CASE 318, STYLE 8 SOT–23 (TO–236AB) Preferred: devices are recommended choices for future use and best overall value. 1 CATHODE 3 ANODE DEVICE MARKING BAT54LT1 = JV3 MAXIMUM RATINGS (T J = 125°C unless otherwise noted) Rating Reverse Voltage Forward Power Dissipation @ T A = 25°C Derate above 25°C Forward Current(DC) Junction Temperature Storage Temperature Range Symbol VR PF Max 30 200 2.0 200Max 125Max –55 to +150 Unit Volts mW mW/°C mA °C °C IF TJ T stg ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) Characteristic Reverse Breakdown Voltage (I R = 10 µA) Total Capacitance (V R = 1.0 V, f = 1.0 MHz) Reverse Leakage (V R = 25 V) Forward Voltage (I F = 0.1 mAdc) Forward Voltage (I F = 30 mAdc) Forward Voltage (I F = 100 mAdc) Reverse Recovery Time (I F = I R = 10 mAdc, I R(REC) = 1.0 mAdc, Figure 1) Forward Voltage (I F = 1.0 mAdc) Forward Voltage (I F = 10 mAdc) Forward Current (DC) Repetitive Peak Forward Current Non–Repetitive Peak Forward Current (t < 1.0 s) Symbol V(BR)R CT IR VF VF VF trr VF VF IF IFRM IFSM Min 30 — — — — — — — — — — — Typ — 7.6 0.5 0.22 0.41 0.52 — 0.29 0.35 — — — Max — 10 2.0 0.24 0.5 0.8 5.0 0.32 0.40 200 300 600 Unit Volts pF µAdc Vdc Vdc Vdc ns Vdc Vdc mAdc mAdc mAdc BAT54LT1–1/2 LESHAN RADIO COMPANY, LTD. BAT54LT1 +10 V 820 Ω 2.0 k 0.1µF tr tp 10% t IF t rr t 100 µH IF 0.1 µF 50 Ω OUTPUT PULSE GENERATOR D.U.T. 50 Ω INPUT SAMPLING OSCILLOSCOPE 90% V R INPUT SIGNAL IR i R(REC) = 1.0 mA OUTPUT PULSE (I F = I R = 10 mA; MEASURED at i R(REC) = 1.0 mA) Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (I F ) of 10mA. Notes: 2. Input pulse is adjusted so I R(peak) is equal to 10mA. Notes: 3. t p » t rr Figure 1. Recovery Time Equivalent Test Circuit 100 1000 T A = 150°C IR , REVERSE CURRENT (µA) IF , FORWARD CURRENT (mA) 100 10 150°C T A = 125°C 10 1.0 125°C 1.0 T A = 85°C 0.1 85°C 25°C – 40°C –55°C 0.01 T A = 25°C 0.001 0 5 10 15 20 25 30 0.1 0 0.1 0.2 0.3 0.4 0.5 0.6 VF , FORWARD VOLTAGE (VOLTS) VR , REVERSE VOLTAGE (VOLTS) Figure 2. Forward Voltage Figure 3. Leakage Current 14 12 CT TOTAL CAPACITANCE (pF) 10 8 6 4 2 0 0 5 10 15 20 25 30 VR , REVERSE VOLTAGE (VOLTS) Figure 4. Total Capacitance BAT54LT1–2/2
