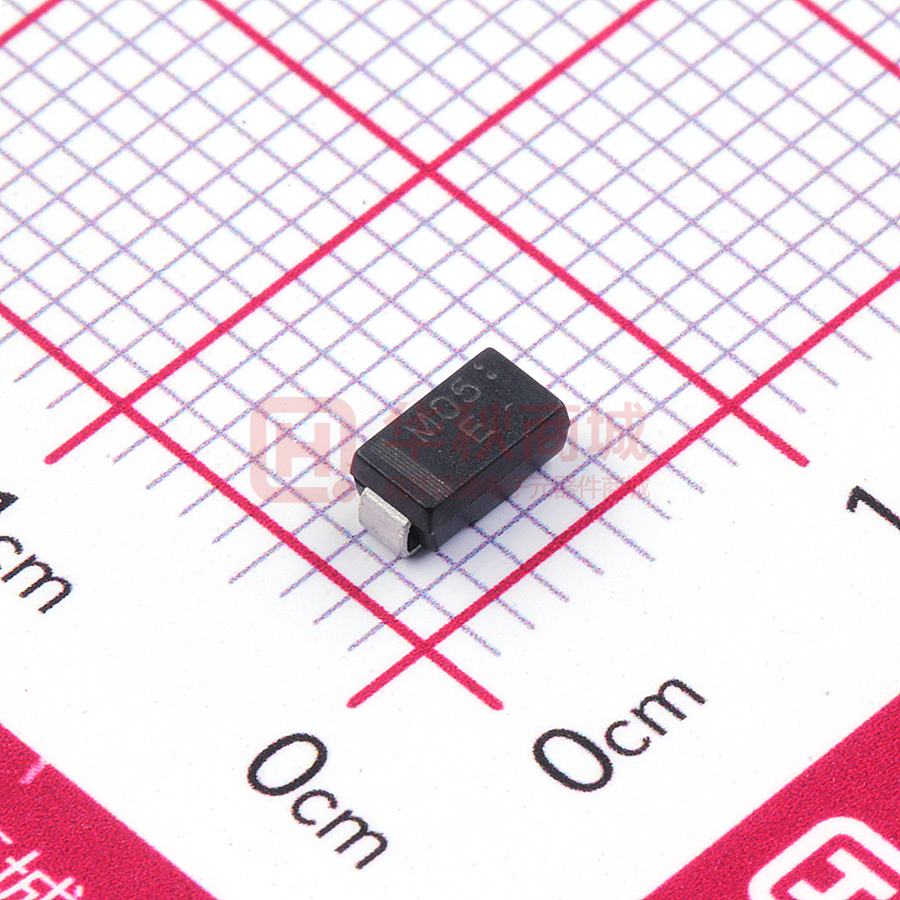

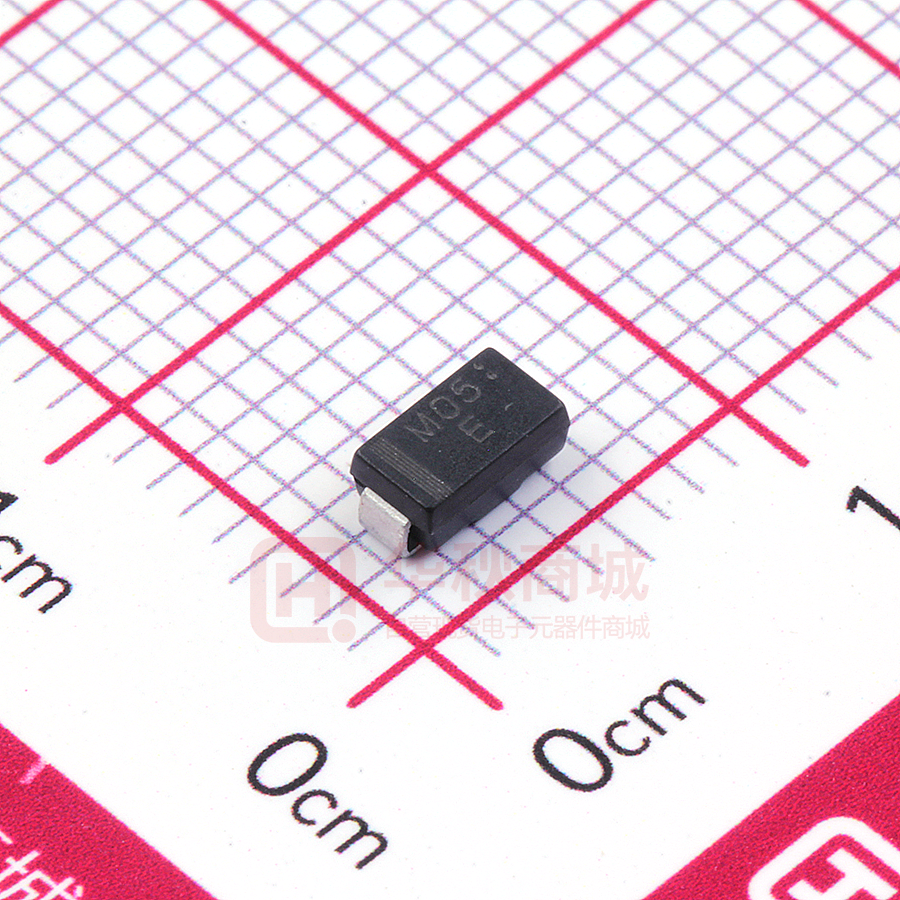

FM405

LESHAN RADIO COMPANY, LTD. FM401 – FM407 1A 1A GLASS PASSIVATED SMA DIODES Marking VRRM(V) Package Dimensions TYPE IF (A) V F (V) IRMI(µA) IP8M(A) Trr(ns) FM401 FM402 FM403 FM404 FM405 FM406 FM407 M01 M02 M03 M04 M05 M06 M07 50 100 200 400 600 800 1000 1.0 1.10 5.0 30 – DO – 214AC G B A H A .110(2.8) .086(2.2) E F D C B .067(1.7) .051(1.3) C .008 MAX (.2) D .091(2.3) .067(1.7) E .051(1.3) .008(0.2) F .059(1.5) .035(0.9) G .209(5.3) .185(4.7) H .059(1.5) .035(0.9) DO – 214AC 47A–1/2 LESHAN RADIO COMPANY, LTD. FM401 – FM407 1A RATING & CHARACTERISTIC CURVES OF 1A SMA DIODES FIG. 1 - TYPICAL FORWARD CURRENT DERATING CURVE 1.0 AVERAGE FORWARD CURRENT,(A) FIG. 2 - TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 10 TJ =25ºC INSTANTANEOUS FORWARD CURRENT,(A) 0.8 0.6 1 0.4 Single Phase Half Wave 60Hz Resistive or Inductive Load 0 25 50 75 100 125 150 175 0.2 0 0.1 AMBIENT TEMPERATURE, (ºC) Pulse Width=300µs 1% Duty Cycle 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 3 - MAXINUM NON-REPETITIVE FOWARD SURGE CURRENT 50 PEAK FORWARD SURGE CURRENT,(A) INSTANTANEOUS FORWARD VOLTAGE,(V) 40 8.3ms Single Half Sine-Wave (JEDEC Method) FIG. 4 - TYPICAL REVERSE CHARACTERISTICS 30 10 INSTANTANEOUS FORWARD CURRENT,(µA) 20 TJ =100ºC 10 1.0 0 1 2 4 6 8 10 20 40 NUMBER OF CYCLES AT 60Hz 60 80100 0.1 TJ =25ºC FIG. 5 - TYPICAL JUNCTION CAPACITANCE 200 100 JUNCTION CAPACITANCE,(pF) 0.01 TJ =25ºC 0 20 40 60 80 100 120 140 60 40 20 10 6 4 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) 2 1 .1 .2 .4 1.0 2 4 10 20 40 100 REVERSE VOLTAGE,(V) 47A–2/2
