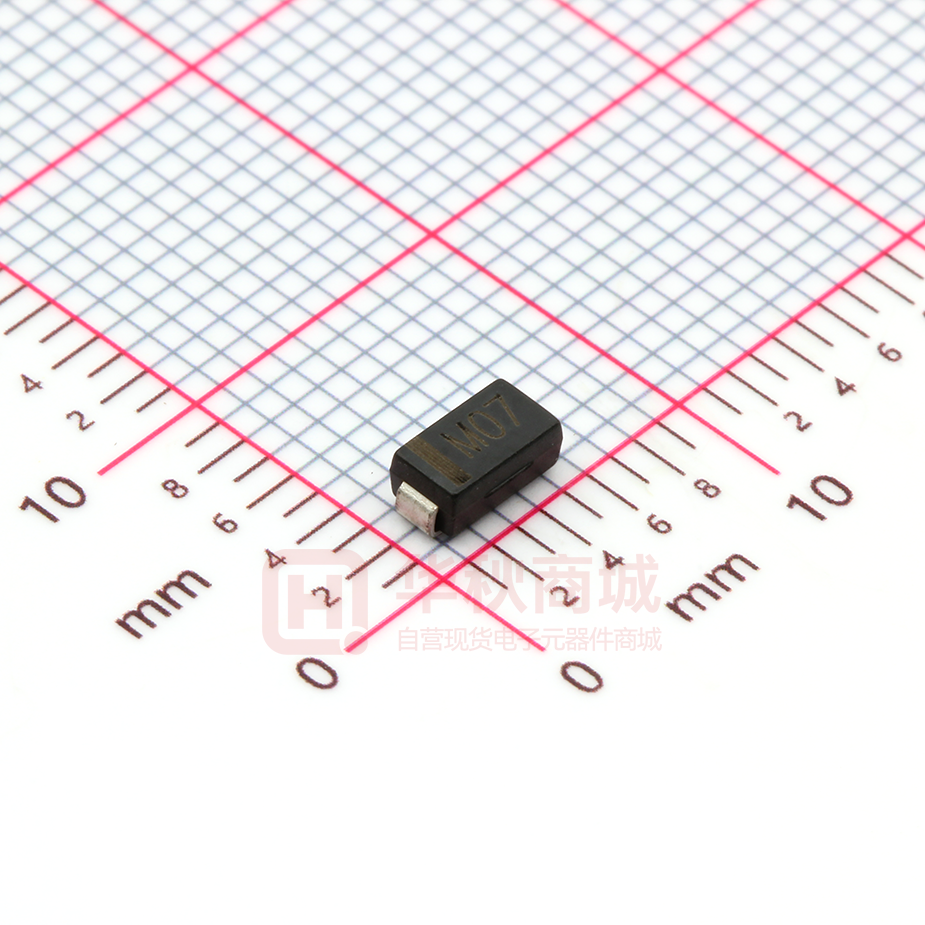

FM407

FM401 thru FM407 Surface Mount Glass Passivated Junction Rectifiers Reverse Voltage 50 to 1000V Forward Current 1.0A FEATURES * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * High temperature metallurgically bonded construction * Cavity-free glass passivated junction * Capable of meeting environmental standards of MIL-S-19500 * 1.0 A operation at TA=75°C with no thermal runaway * Typical IR less than 1.0µA * High temperature soldering guaranteed: 260°C/10 seconds Mechanical Data Case: JEDEC DO-214AC, molded plastic over glass body We declare that the material of product compliance Terminals: Plated axial leads, solderable per with ROHS requirements MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.0023 oz., 0.065 g Handling precautin:None Electrical Characteristic 1.Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol Device marking code FM 401 M01 FM 402 M02 FM 403 M03 FM 404 M04 FM 405 M05 FM 406 M06 FM 407 M07 Unit Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RSM voltage VRSM 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current 0.375" (9.5mm) lead length at TA = 75°C IF(AV) 1.0 A IFSM 30 A Peak forward surge current 8.3ms single half sinewave superimposed on rated load (JEDEC Method) Typical thermal resistance (Note 1) RθJA(C.T) 75 (20) Operating junction and storage temperature range TJ, TSTG –50 to +150 °C/W °C Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA = 25°C at rated DC blocking voltage TA = 125°C Typical junction capacitance at 4.0V, 1MHz NOTES: 1. 8.0mm2 (.013mm thick) land areas symbol VF IR CJ FM 401 FM 402 FM 403 FM FM 404 405 0.7 ~ 1.1 5.0 50 8.0 FM 406 FM 407 Unit V µA PF FM401 thru FM407 2.Ratings and Characteristic Curves ( TA = 25°C unless otherwise noted ) 1.0 0.5 0.375" (9.5mm) Lead Length 0 100 0.1 100 0.8 1.0 1.2 1.4 Instantaneous Forward Voltage (V) 40 30 20 10 0 100 Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.01 1.6 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig 6. – Typical Junction Capacitance 10 1.0 0.1 0.1 1.0 10 t,Pulse duration,sec 10 Number of Cycles at 60Hz 100 Fig 5. –typical transient thermal impedance 0.01 TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) Fig 4. – Typical Reverse Characteristics 1.0 0.01 0.6 Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current 1 Fig 3. – Typical Instantaneous Forward Characteristics TJ = 25°C Pulse width = 300µs 1% Duty Cycle 10 50 25 50 75 100 125 150 175 Ambient Temperature, °C Instantaneous Reverse Current (µA) Instantaneous Forward Current (A) 0 Transient thermal impedance(°C/W) Average Forward Rectified Current (A) 60 Hz Resistive or Inductive Load Junction Capacitance (pF) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 100 20 10 1.0 0.1 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 1 10 Reverse Voltage (V) FM401 thru FM407 3. dimension: Title : DOC NO.： Power Diode SMD Package Pa cking Spec Version: 5 WI-258 Modification: 0 Page: 2 5.1 、SMD Packing Reel Spec & Packing Quantity 5.1.1 Reel Packing A. Reel Spec unit：mm SPEC SMA 7" reel SMA13" reel TO277 13" reel SMA-FL 7" reel SOD123FL 7" reel SOD323HE 7" reel SMB-FL 13" reel A 177.0±2.0 330.0±2.0 330.0±2.0 177.0±2.0 177.0±2.0 177.0±2.0 330.0±2.0 B 54.0±0.5 75.0±0.5 75.0±0.5 54.0±0.5 50.0±0.5 50.0±0.5 75.0±0.5 C 13.0±0.5 13.0±0.5 13.0±0.5 13.0±0.5 13.0±0.5 13.0±0.5 13.0±0.5 W 13.2±0.2 13.2±0.2 13.2±0.2 13.2±0.2 9.4±1.5 9.4±1.5 13.2±0.2 Quantity/Reel 2K 5K 5K 3K 3K 3K 5K B. 13" reel packing box unit：mm A 335±5.0 size B 335±2.0 as per above packing Spec SMA13" reel TO277 13" reel SMB-FL 13" reel Q'ty/Box 10K 10K 10K C 40±1.0 Title : Power Diode SMD Package Packing Spec DOC NO.： WI-258 DOC NO.： WI-258 Page: 3 C. 7" reel packing box unit：mm A 188±2.0 B 188±2.0 C 138±2.0 186±2.0 139±2.0 as per above packing Q'ty/Box 16K SMA SOD123FL 30K SOD323HE 30K SMA-FL 30K 185±2.0 SMA SMAFL SOD123FL SOD323HE D. reel packing carton unit：mm A 350±2.0 size B 340±2.0 C 350±2.0 as per above packing Spec SMA 7" reel SMA13"reel SMA-FL13"reel TO277 13" reel SMB-FL 13" reel Q'ty/Carton 80K 80K 80K 80K 80K unit：mm SMA-FL SOD123FL SOD323HE A B C 455±2.0 400±2.0 410±2.0 as per above packing Spec SOD123-FL 7" reel SOD323HE 7" reel SMA-FL 7" reel 5.1.2 Tape Spec A. Cover Tape unit：mm A SMA /SMA-FL SMB-FL /TO277 B 9.5±0.10 SOD123FL 5.4±0.10 SOD323HE 0.062±0.007 Q'ty/Carton 360K 360K 360K Title : DOC NO.： Power Diode SMD Package Packing Spec Version: 5 WI-258 Modification: 0 Page: 4 B. Carrier Tape Do P2 Po t P1 A D1 A' Bo W F E B' B SEC.:B-B' Cathode(tape hole side） Ko Ao SEC.:A-A' Item W P1 E F D0 D1 P0 P2 10P0 A0 B0 K0 SOD323HE 8±0.3 4±0.1 1.75±0.1 3.5±.05 1.55±0.05 1.1±0.1 4±0.1 2±0.05 40±0.2 1.45±0.1 2.75±0.1 0.80±0.1 SOD123FL 8±0.3 4±0.1 1.75±0.1 3.5±.05 1.55±0.05 1.1±0.1 4±0.1 2±0.05 40±0.2 1.95±0.1 3.95±0.1 1.30±0.1 SMA 12±0.3 4±0.1 1.75±0.1 5.5±.05 1.55±0.05 1.5±0.1 4±0.1 2±0.05 40±0.2 2.79±0.1 5.33±0.1 2.36±0.1 T 0.25±0.05 0.25±0.05 0.25±0.05 SMA-FL 12±0.3 4±0.1 1.75±0.1 5.5±.05 1.55±0.05 1.5±0.1 4±0.1 2±0.05 40±0.2 2.83±0.1 4.75±0.1 1.42±0.1 SMB-FL TO277 12±0.3 12±0.3 8±0.1 8±0.1 1.75±0.1 1.75±0.1 5.5±0.05 5.5±.05 1.55±0.05 1.55±0.05 1.55±0.05 1.5±0.1 4±0.1 4±0.1 2±0.05 2±0.05 40±0.2 40±0.2 4.3±0.1 3.8±0.1 5.75±0.1 6.8±0.1 1.35±0.1 1.4±0.1 0.25±0.05 0.25±0.05 0.25±0.05 Title : DOC NO.： Power Diode SMD Package Packing Spec Version: 5 WI-258 Modification: 0 Page: 5 5.2、SMD Power Diode General Packing Spec A. 7" reel all labels will be at cathode side of reel ； Ｂ C A C side front A:LRC label; B:Environment Label C:Halide free label B. 13" reel A Ｂ C Ｂ C A A:LRC label; B:Environment Labe C:Halide free label C.Tape lead: face anode side of the reel,upper side is the tape lead position. All labels are at cathode side of the reel. 标题: DOC NO.： Power Diode SMD Package Packing Spec Version: 5 Modification: 0 Page: C. Label Content ： LRC Label WI-258 6 Two-dimension code Manufacturing it P/N ` Lot No. Date code Maker Quantity lot: 140106049X: 140106---2014/1/6；049----lot number:49；X：product code Environment Label Halide-free Label Green FM401 thru FM407 4. Update Record 版次 更新记录 更新作者 更新日期 1 第一版 周杰 2010-4-13 2 增加包装规范 周杰 2011-9-13
