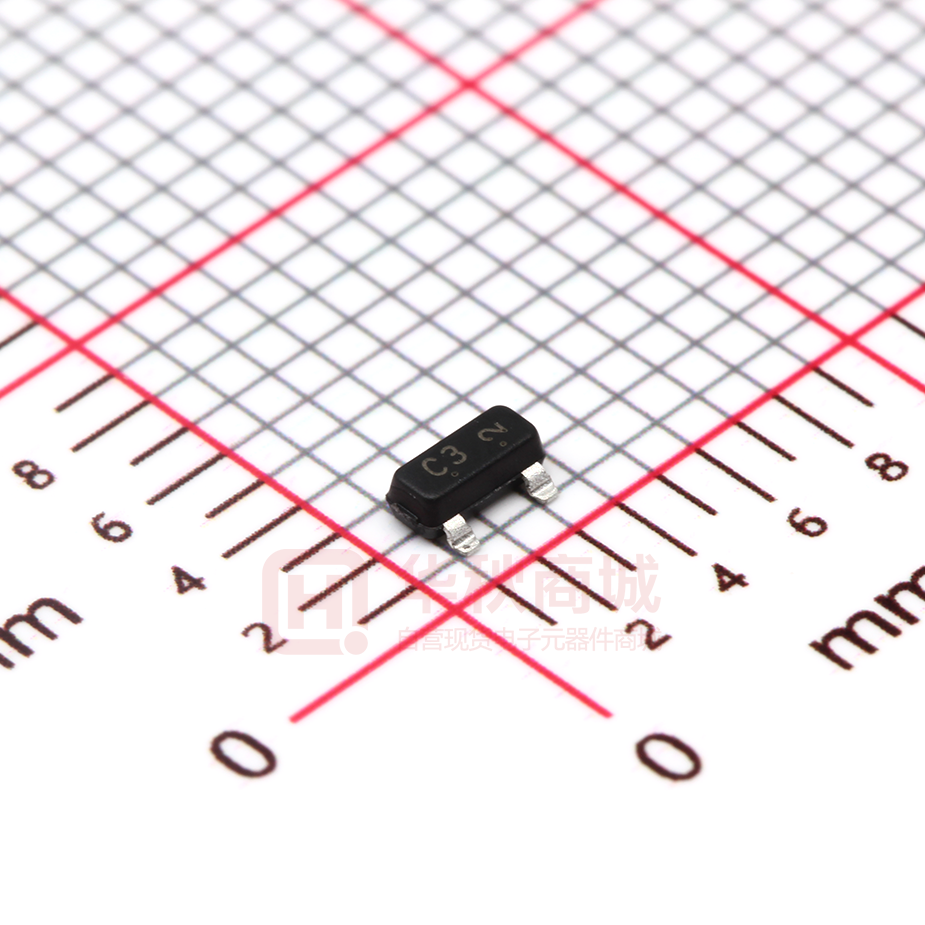

L1SS226LT1G

LESHAN RADIO COMPANY, LTD. Ultra High Speed Switching Application L1SS226LT1G Featrues z Low forward voltage : VF (3) = 0.9V (typ.) z Fast reverse recovery time : trr = 1.6ns (typ.) 3 z Small total capacitance : CT = 0.9pF (typ.) 1 z We declare that the material of product 2 compliance with RoHS requirements. SOT –23 ANODE 1 1 3 CATHODE 1 / ANODE 2 2 CATHODE 2 Maximum Ratings (TA = 25°C) Characteristic Maximum (peak) reverse voltage Reverse voltage Maximum (peak) forward current Average forward current Surge current (10ms) Power dissipation Junction temperature Storage temperature range Symbol VRM VR IFM IO IFSM P Tj Tstg Rating 85 80 300 * 100 * 2* 150 125 -55~+125 Unit V V mA mA A mW °C °C * : Unit rating. Total rating = Unit rating × 0.7. Electrical Characteristics (TA = 25°C) Characteristic Symbol Test Circuit Test Condition Min Typ. Max IF = 1mA IF = 10mA IF = 100mA VR = 30V VR = 80V VR = 0, f = 1MHz – – – – – – 0.60 0.72 0.90 – – 0.9 – – 1.20 0.1 0.5 3.0 pF IF = 10mA (Fig.1) – 1.6 4.0 ns Forward voltage VF (1) VF (2) VF (3) Reverse current IR (1) IR (2) Total capacitance CT – – – – – – Reverse recovery time trr – Unit V µA Ordering Information Device Marking Shipping L1SS226LT1G C3 3000/Tape&Reel L1SS226LT3G C3 10000/Tape&Reel Rev.O 1/3 LESHAN RADIO COMPANY, LTD. L1SS226LT1G Electrical characteristic curves 10 Ta=100 1 75 25 100n -25 50 25 10n 0 0.2 0.4 0.6 0.8 1.0 1.2 1n 0 20 40 60 80 Fig.2 REVERSE VOLTAGE VR(V) Fig.1 FORWARD VOLTAGE VF(V) 50 f=1MHz Ta=25 1.6 Ta=25 Fig.5 30 1.2 10 5 0.8 3 0.4 1 0 0.5 0.3 1 3 10 30 100 0.1 Fig.3 REVERSE VOLTAGE VR(V) 0.3 1 3 10 30 50 Fig.4 FORWARD CURRENT I F(mA) OUTPUT WAVEFORM 0.01 F DUT 0 INPUT OUTPUT OSCILLOSCOPE (R IN=50 ) -6V IF=10mA 0 E 0.1IR IR 50ns PULSE GENERATOR (ROUT=50 ) trr Fig.5 Reverse recovery time (trr ) test circuit Rev.O 2/3 LESHAN RADIO COMPANY, LTD. L1SS226LT1G SOT-23 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M,1982 2. CONTROLLING DIMENSION: INCH. A L 3 1 V 2 DIM B S G C D H K J MIN 0.1102 0.0472 0.0350 0.0150 0.0701 0.0005 0.0034 0.0140 0.0350 0.0830 0.0177 A B C D G H J K L S V INCHES MAX 0.1197 0.0551 0.0440 0.0200 0.0807 0.0040 0.0070 0.0285 0.0401 0.1039 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 3/3
