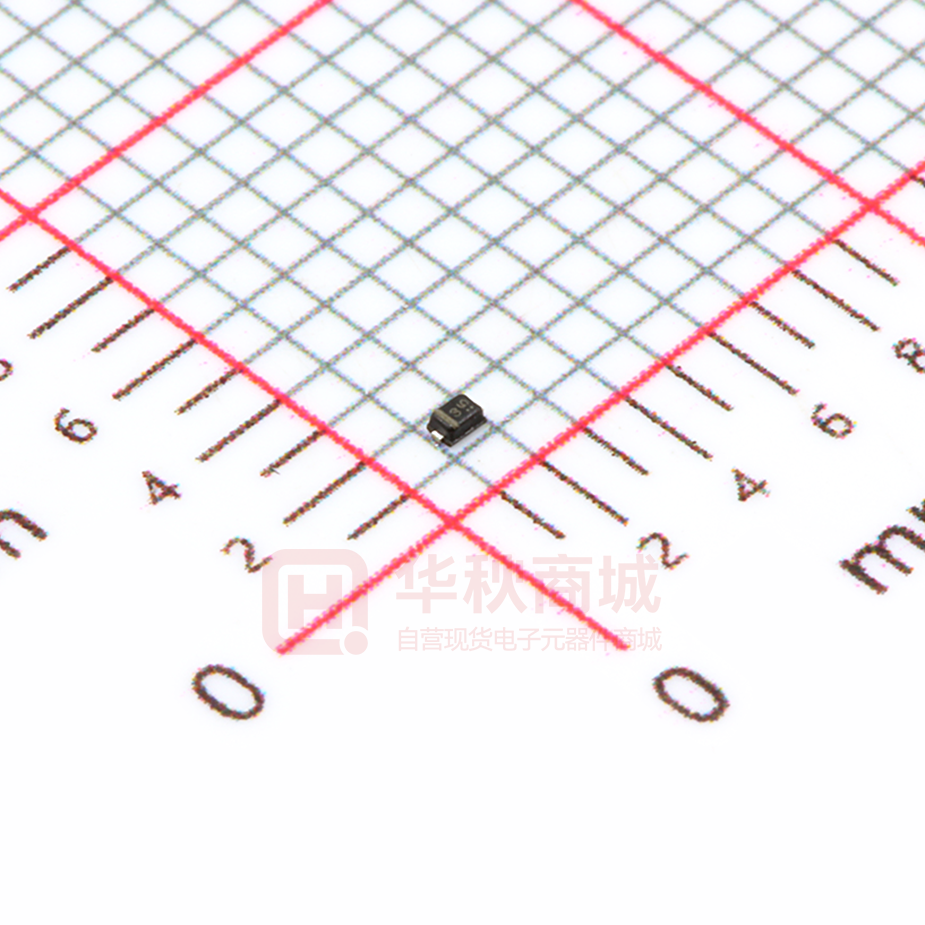

L1SS400CST5G S-L1SS400CST5G Switching diode 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ● Extremely small surface mounting type. ● High Speed. ● High reliability. 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking L1SS400CST5G 3 Shipping 8000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Symbol Unit DC reverse voltage VR Peak forward current IFM Limits 90 80 225 IO 100 mA mA Peak reverse voltage VRM Mean rectifying current V V mA Isurge 500 Junction temperature Tj 125 °C Storage temperature Tstg -55~+125 °C Surge current (1s) 4. ELECTRICAL CHARACTERISTICS Characteristic Forward voltage (IF =100mA) Reverse current (VR =80V) Capacitance between terminals (VR =0.5V , f=1MHz) Reverse recovery time (VR =6V , IF =10mA , RL =100Ω) Leshan Radio Company, LTD. Symbol VF IR CT trr Rev.A Oct. 2017 Min. Typ. Max. - - 1.2 Unit V μA - - 0.1 pF - 0.72 3 nS - - 4 1/3 L1SS400CST5G, S-L1SS400CST5G Switching diode 5.ELECTRICAL CHARACTERISTICS CURVES 1000 1000 150℃ 100 100 IR,Reverse Current(uA) IF, Forward Current(mA) 150℃ 85℃ 25℃ 10 -55℃ 1 85℃ 10 1 25℃ 0.1 -55℃ 0.01 0.1 0.001 0 0.2 0.4 0.6 0.8 VF, Forward Voltage(V) 1 1.2 Forward Characteristics 0 20 40 60 80 VR, Reverse Voltage(V) 100 Reverse Characteristics 0.6 f=1MHz C,Capacitor(pF) 0.5 0.4 0.3 0.2 0.1 0 0 10 20 30 40 VR, Reverse Voltage(V) 50 Capacitor Characteristics Leshan Radio Company, LTD. Rev.A Oct. 2017 2/3 L1SS400CST5G, S-L1SS400CST5G Switching diode 6.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.34 NOM MAX MIN NOM MAX 0.37 0.40 0.013 0.015 0.016 b 0.15 0.20 0.25 0.006 0.008 0.010 c 0.07 0.12 0.17 0.003 0.005 0.007 D 0.75 0.80 0.85 0.030 0.031 0.033 E 0.55 0.60 0.65 0.022 0.024 0.026 0.95 1.00 1.05 0.037 0.039 0.041 HE L L2 0.19REF 0.05 0.10 0.007REF 0.15 0.002 0.004 0.006 7.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Oct. 2017 3/3
