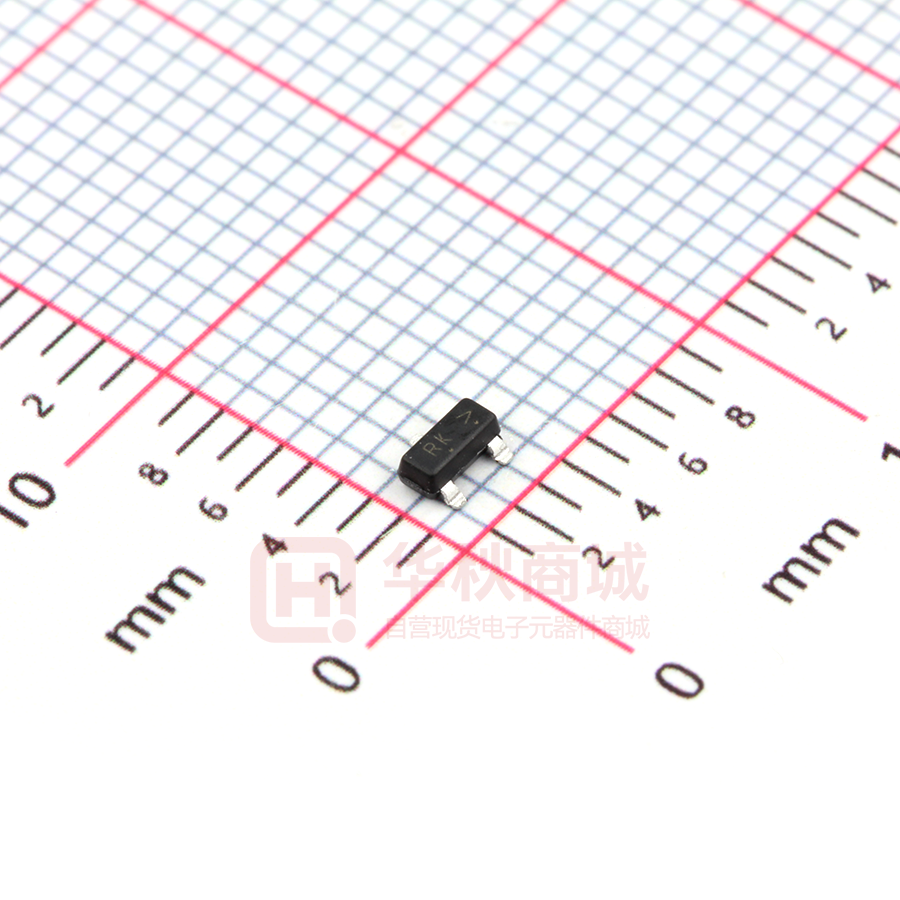

L2N7002KLT1G

LESHAN RADIO COMPANY, LTD. Small Signal MOSFET 380 mAmps, 60 Volts N–Channel SOT–23 L2N7002KLT1G S-L2N7002KLT1G ●FEATURES 1)ESD Protected 2)Low RDS(on) 3)Surface Mount Package 4)This is a Pb−Free Device 5)We declare that the material of product compliant with RoHS requirements and Halogen Free. 6) S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. ●APPLICATIONS 1)Low Side Load Switch 2)Level Shift Circuits 3)DC−DC Converter 4)Portable Applications i.e. DSC, PDA, Cell Phone, etc. 3 1 2 SOT–23 V(BR)DSS RDS(on) MAX ID MAX (Note 1) 60 V 2.3 W @ 10 V 380 mA 2.7 W @ 5.0 V ●DEVICE MARKING AND ORDERING INFORMATION Device L2N7002KLT1G Marking RK Simplified Schematic Shipping 3000/Tape&Reel ●MAXIMUM RATINGS(Tj= 25℃ unless otherwise stated)) Symbol Value Rating Unit VDSS Drain−to−Source Voltage 60 Vdc VGS Gate−to−Source Voltage ±20 Vdc Drain Current – Steady State ID TA = 25°C TA = 85°C TA = 25°C –t
