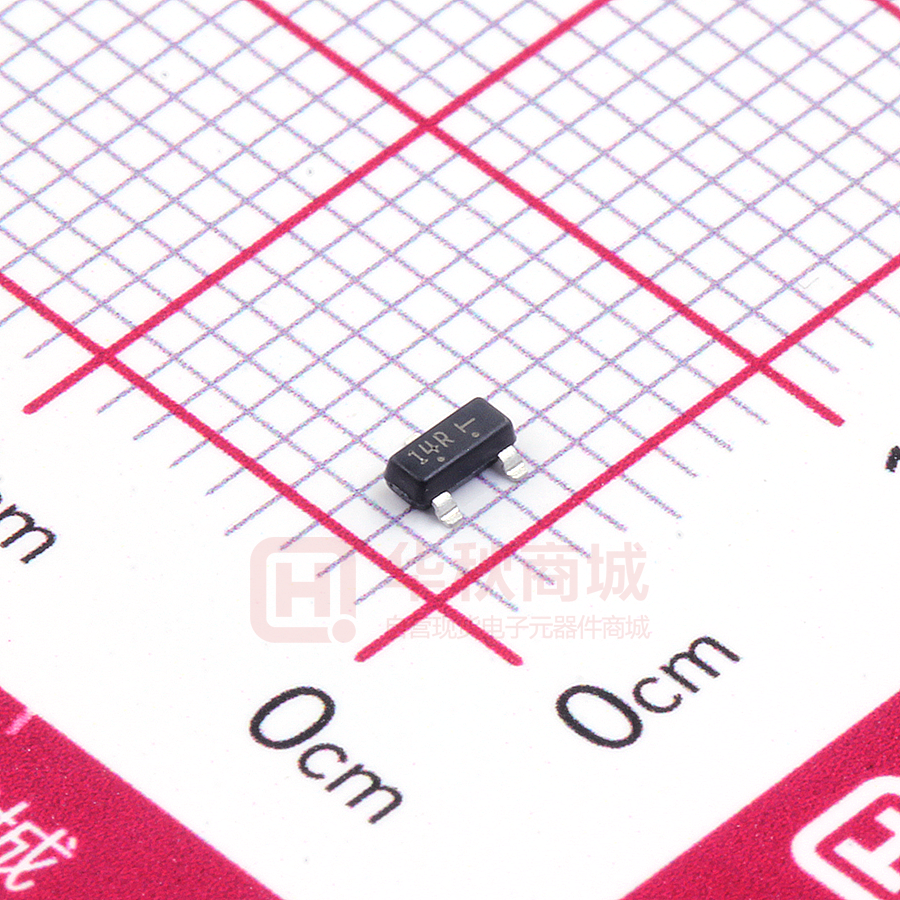

L9014RLT1G

LESHAN RADIO COMPANY, LTD. General Purpose Transistors NPN Silicon FEATURE ƽComplementary to L9014. ƽ We declare that the material of product compliance with RoHS requirements. ƽ S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. L9014QLT1G Series S-L9014QLT1G Series DEVICE MARKING AND ORDERING INFORMATION Device Marking 3 Shipping L9014QLT1G S-L9014QLT1G 14Q 3000/Tape&Reel L9014QLT3G S-L9014QLT3G 14Q 10000/Tape&Reel L9014RLT1G S-L9014RLT1G 14R 3000/Tape&Reel L9014RLT3G S-L9014RLT3G 14R 10000/Tape&Reel L9014SLT1G S-L9014SLT1G 14S 3000/Tape&Reel L9014SLT3G S-L9014SLT3G 14S 10000/Tape&Reel L9014TLT1G S-L9014TLT1G 14T 3000/Tape&Reel L9014TLT3G S-L9014TLT3G 14T 10000/Tape&Reel 1 2 SOT– 23 COLLECTOR 3 1 BASE 2 EMITTER MAXIMUM RATINGS Rating Symbol Value Unit Collector-Emitter Voltage VCEO 45 V Collector-Base Voltage VCBO 50 V Emitter-Base Voltage VEBO 5 V IC 100 mA Collector current-continuoun THERMAL CHARATEERISTICS Characteristic Total Device Dissipation FR-5 Board, (1) Symbol Unit PD o TA=25 C o Derate above 25 C Thermal Resistance, Junction to Ambient Max R©JA 225 mW 1.8 mW/ oC 556 o 300 mW 2.4 mW/ oC C/W PD Total Device Dissipation o Alumina Substrate, (2) TA=25 C o Derate above 25 C Thermal Resistance, Junction to Ambient R©JA 417 Junction and Storage Temperature TJ ,Tstg -55 to +150 o C /W o C 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. Rev.O 1/4 LESHAN RADIO COMPANY, LTD. L9014QLT1G Series S-L9014QLT1G Series ELECTRICAL CHARACTERISTICS (TA=25oC unless otherwise noted) OFF CHARACTERISTICS Characteristic Symbol Min Typ Max Unit V(BR)CEO 45 - - V V(BR)EBO 5 - - V V(BR)CBO 50 - - V Collector Cutoff Current (VCB=40V) ICBO - - 100 nA Emitter Cutoff Current (VEB=3V) IEBO 100 nA Collector-Emitter Breakdown Voltage (IC=1.0mA) Emitter-Base Breakdown Voltage (IE=100­A) Collector-Base Breakdown Voltage (IC=100­A) ON CHARACTERISTICS DC Current Gain (IC=1mA, VCE=5V) HFE 150 - 1000 VCE - - 0.3 Collector-Emitter Saturation Voltage (IC=100mA,IB=5mA) NOTE: * Q R S T HFE 150~300 200~400 300~600 400~1000 V Rev.O 2/4 LESHAN RADIO COMPANY, LTD. L9014QLT1G Series S-L9014QLT1G Series STATIC CHARACTERISTIC DC CURRENT GAIN BASE-EMITTER SATURATION VOLTAGE COLLECTOR-EMITTER SATURATION VOLTAGE CURRENT GAIN-BANDWIDTH PRODUCT Rev.O 3/4 LESHAN RADIO COMPANY, LTD. L9014QLT1G Series S-L9014QLT1G Series SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI L Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 4/4
