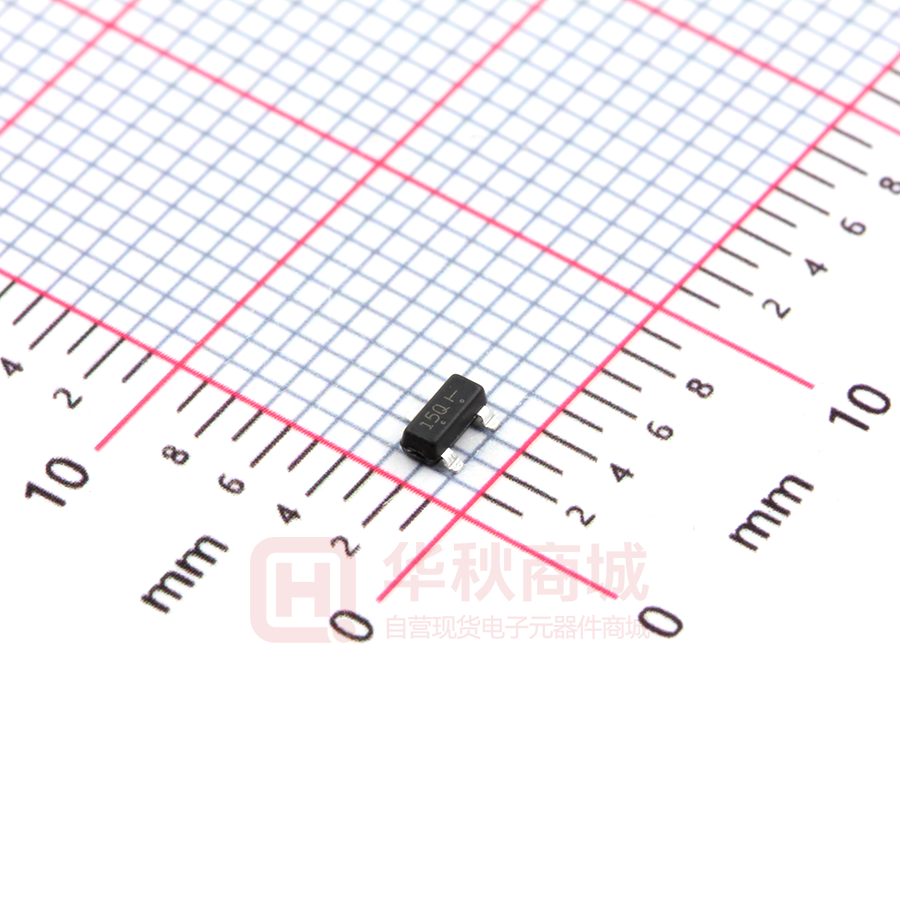

L9015QLT1G

LESHAN RADIO COMPANY, LTD. General Purpose Transistors PNP Silicon L9015QLT1G FEATURE ƽComplementary to L9014. Series ƽ We declare that the material of product compliance with RoHS requirements. ƽ S- Prefix for Automotive and Other Applications Requiring Unique Site S-L9015QLT1G Series and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. DEVICE MARKING AND ORDERING INFORMATION 3 Device Marking Shipping L9015QLT1G S-L9015QLT1G L9015QLT3G S-L9015QLT3G L9015RLT1G S-L9015RLT1G L9015RLT3G S-L9015RLT3G L9015SLT1G S-L9015SLT1G 15Q 3000/Tape&Reel 15Q 10000/Tape&Reel 15R 3000/Tape&Reel 15R 10000/Tape&Reel 15S 3000/Tape&Reel L9015SLT3G S-L9015SLT3G 15S 10000/Tape&Reel 1 2 SOT– 23 COLLECTOR 3 MAXIMUM RATINGS 1 BASE Symbol Value Collector-Emitter Voltage VCEO -45 V Collector-Base Voltage VCBO -50 V Emitter-Base Voltage VEBO -5 V IC -100 mA Rating Collector current-continuoun 2 EMITTER Unit THERMAL CHARATEERISTICS Symbol Characteristic Total Device Dissipation FR-5 Board.(1) TA=25 C o Derate above 25 C Total Device Dissipation Unit 225 mW 1.8 mW/oC PD o Thermal Resistance, Junction to Ambient Max RJA 556 o C/W PD o Alumina Substrate, (2) TA=25 C o Derate above 25 C Thermal Resistance, Junction to Ambient Junction and Storage Temperature 300 mW 2.4 mW/oC RJA 417 TJ ,Tstg -55 to +150 o C/W o C 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. Rev.O 1/4 LESHAN RADIO COMPANY, LTD. L9015QLT1G Series S-L9015QLT1G Series ELECTRICAL CHARACTERISTICS (TA=25oC unless otherwise noted) OFF CHARACTERISTICS Characteristic Collector-Emitter Breakdown Voltage Symbol Min Typ Max Unit V(BR)CEO -45 - - V V(BR)EBO -5 - - V V(BR)CBO -50 - - V (IC=-1.0mA) Emitter-Base Breakdown Voltage (IE=-100µA) Collector-Base Breakdown Voltage (IC=-100µA) Collector Cutoff Current (VCB=-40V) I CBO Emitter Cutoff Current (VEB=-3V) I EBO - - -100 nA -100 nA ON CHARACTERISTICS DC Current Gain (IC=-1mA, VCE=-5V) H FE 150 - 600 V CE - - -0.3 Collector-Emitter Saturation Voltage (IC=-100mA,IB=-5mA) NOTE: * Q R S HFE 150~300 200~400 300~600 V Rev.O 2/4 LESHAN RADIO COMPANY, LTD. L9015QLT1G Series S-L9015QLT1G Series STATIC CHARACTERISTIC BASE-EMITTER VOLTAGE DC CURRENT GAIN CURRENT GAIN-BANDWIDTH PRODUCT BASE-EMITTER SATURATION VOLTAGE COLLECTOR-EMITTER SATURATION VOLTAGE COLLECTOR OUTPUT CAPACITANCE Rev.O 3/4 LESHAN RADIO COMPANY, LTD. L9015QLT1G Series S-L9015QLT1G Series SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI L Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 4/4
