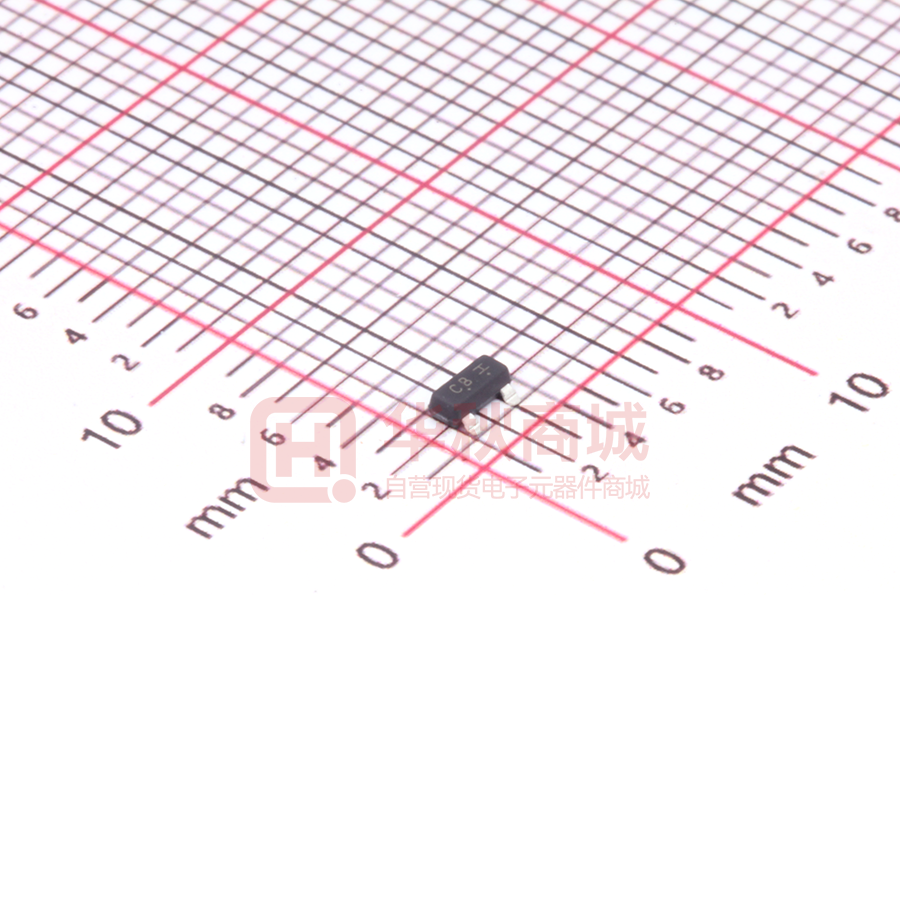

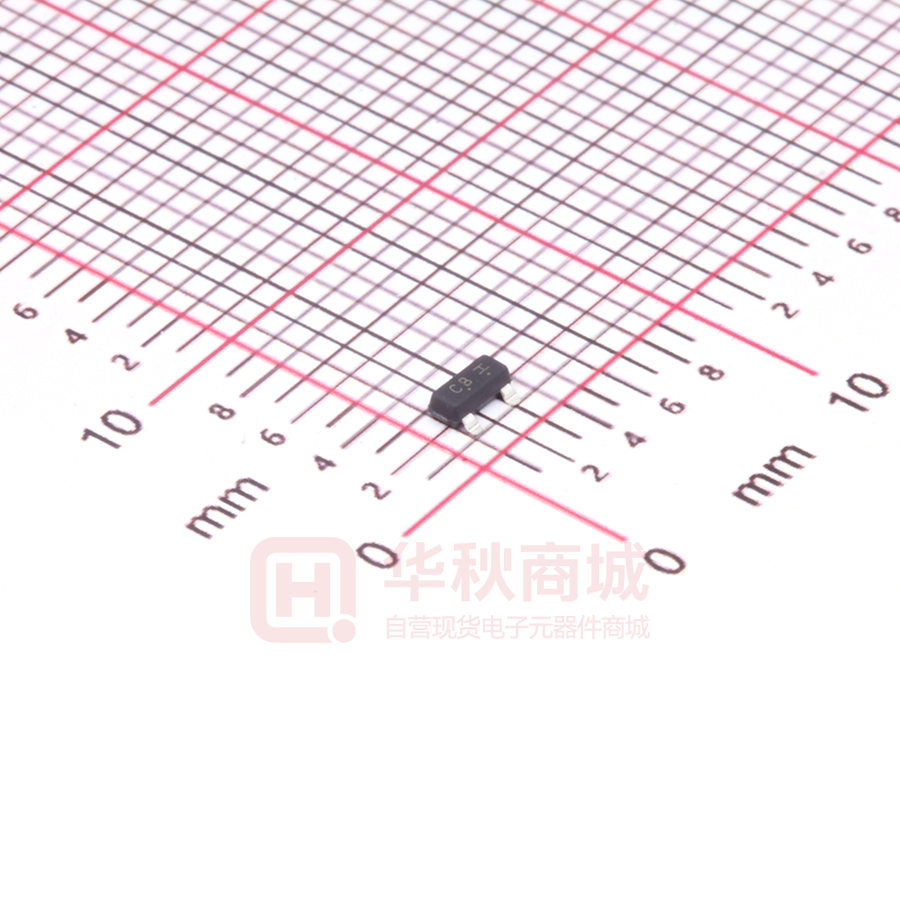

LBAS40-04LT1G

LESHAN RADIO COMPANY, LTD. SCHOTTKY BARRIER DIODE LBAS40XLT1G Features 3 Low forward current Guard ring protected Low diode capacitance. 1 2 APPLICATIONS SOT- 23 Ultra high-speed switching Voltage clamping Protection circuits. 1 Anode Blocking diodes. 3 Cathode BAS40 single diode. DESCRIPTION Planar Schottky barrier diodes with an integrated guard ring for stress protection. We declare that the material of product compliance with RoHS requirements. ORDERING INFORMATION Device Marking Shipping LBAS40LT1G B1 3000 Tape & Reel LBAS40LT3G B1 10000 Tape & Reel LBAS40-04LT1G CB 3000 Tape & Reel LBAS40-04LT3G CB 10000 Tape & Reel LBAS40-05LT1G 455 3000 Tape & Reel LBAS40-05LT3G 455 10000 Tape & Reel LBAS40-06LT1G L2 L2 3000 Tape & Reel LBAS40-06LT3G 10000 Tape & Reel 3 Cathode/Anode 1 Anode 2 Cathode BAS40-04 double diode. 3 Cathode 1 Anode 2 Anode BAS40-05 double diode. 3 Anode 1 Cathode 2 Cathode BAS40-06 double diode. 1/4 LESHAN RADIO COMPANY, LTD. LBAS40XLT1G MAXIMUM RATINGS (TA = 25°C) Parameter Continuous reverse voltage Continuous forward current Repetitive Peak forward surge current Non-repetitive peak forward current Storage temperature Junction temperature Operating ambient temperature Symbol VR IF IFSM IFSM Tstg Tj Tamb Min. -65 -65 Max. 40 120 120 200 +150 150 +150 Unit V mA mA mA °C °C °C Conditions tp
