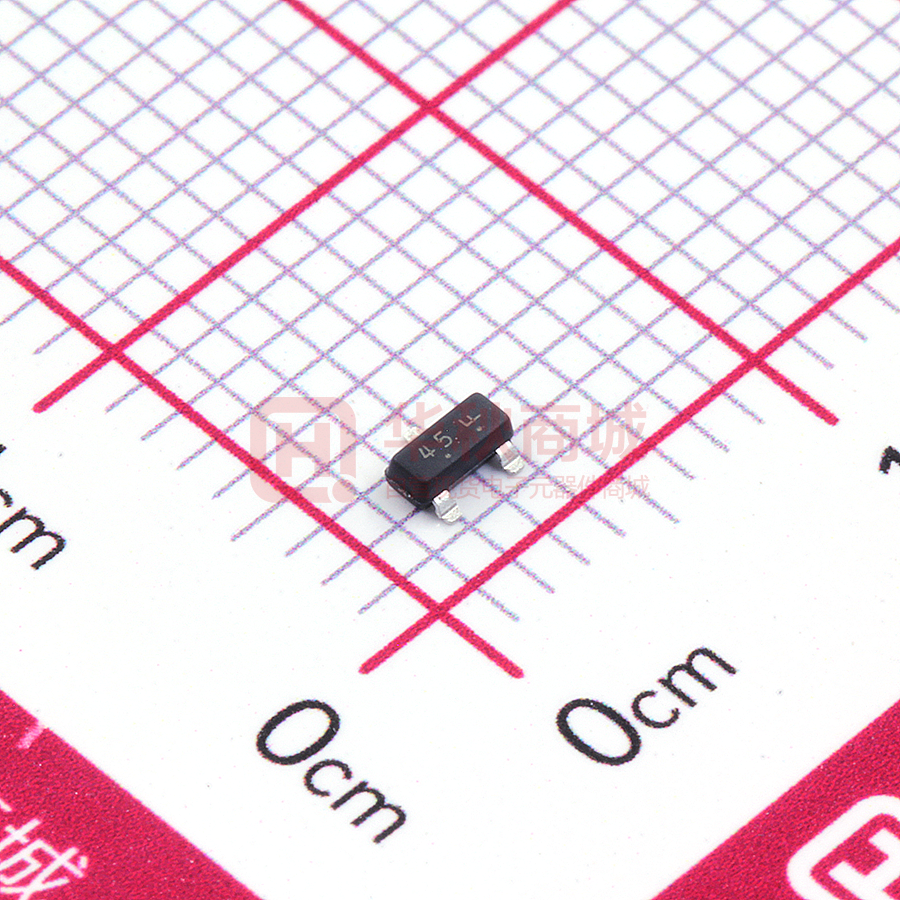

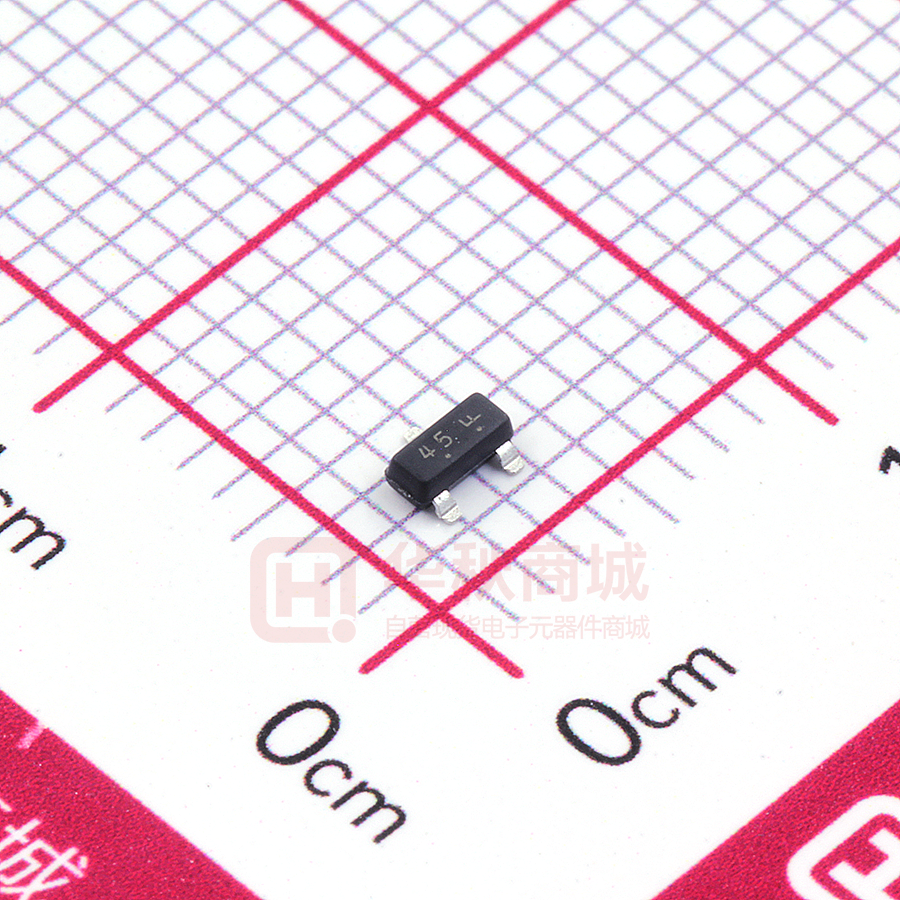

LBAS40-05LT1G

LESHAN RADIO COMPANY, LTD. SCHOTTKY BARRIER DIODE LBAS40LT1G Series S-LBAS40LT1G Series FEATURES Low forward current Guard ring protected Low diode capacitance. APPLICATIONS 3 Ultra high-speed switching Voltage clamping Protection circuits. 1 2 Blocking diodes. SOT- 23 DESCRIPTION Planar Schottky barrier diodes with an integrated guard ring for stress protection. We declare that the material of product compliance with RoHS requirements. 1 Anode 3 Cathode LBAS40LT1G single diode. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;AEC-Q101 3 Cathode/Anode Qualified and PPAP Capable. 1 Anode ORDERING INFORMATION Device LBAS40-04LT1G double diode. Marking Shipping LBAS40LT1G B1 3000 Tape & Reel LBAS40LT3G B1 10000 Tape & Reel LBAS40-04LT1G CB 3000 Tape & Reel LBAS40-04LT3G CB 10000 Tape & Reel LBAS40-05LT1G 455 3000 Tape & Reel LBAS40-05LT3G 455 10000 Tape & Reel LBAS40-06LT1G L2 L2 3000 Tape & Reel LBAS40-06LT3G 2 Cathode 3 Cathode 1 Anode 2 Anode LBAS40-05LT1G double diode. 10000 Tape & Reel 3 Anode 1 Cathode 2 Cathode LBAS40-06LT1G double diode. Rev.O 1/4 LESHAN RADIO COMPANY, LTD. LBAS40LT1G Series,S-LBAS40LT1G Series MAXIMUM RATINGS (TA = 25°C) Parameter Continuous reverse voltage Continuous forward current Repetitive Peak forward surge current Non-repetitive peak forward current Storage temperature Junction temperature Operating ambient temperature Symbol VR IF IFSM IFSM Tstg Tj Tamb Min. -65 -65 Max. 40 120 120 200 +150 150 +150 Unit V mA mA mA °C °C °C Conditions tp
