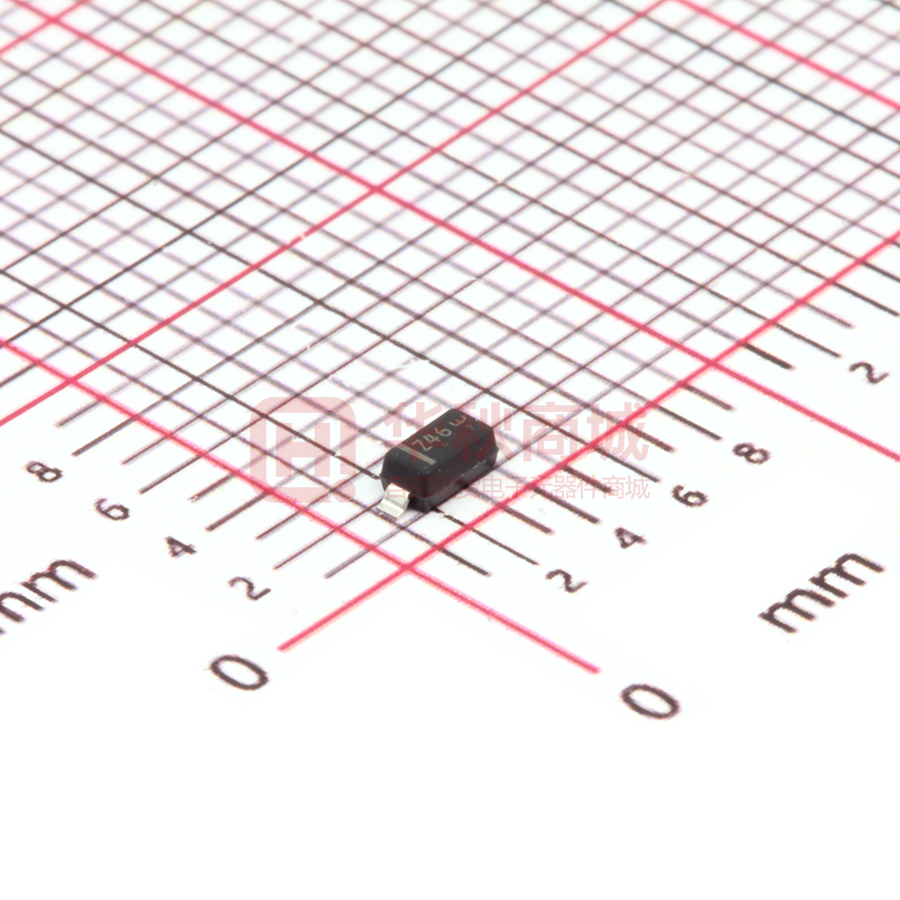

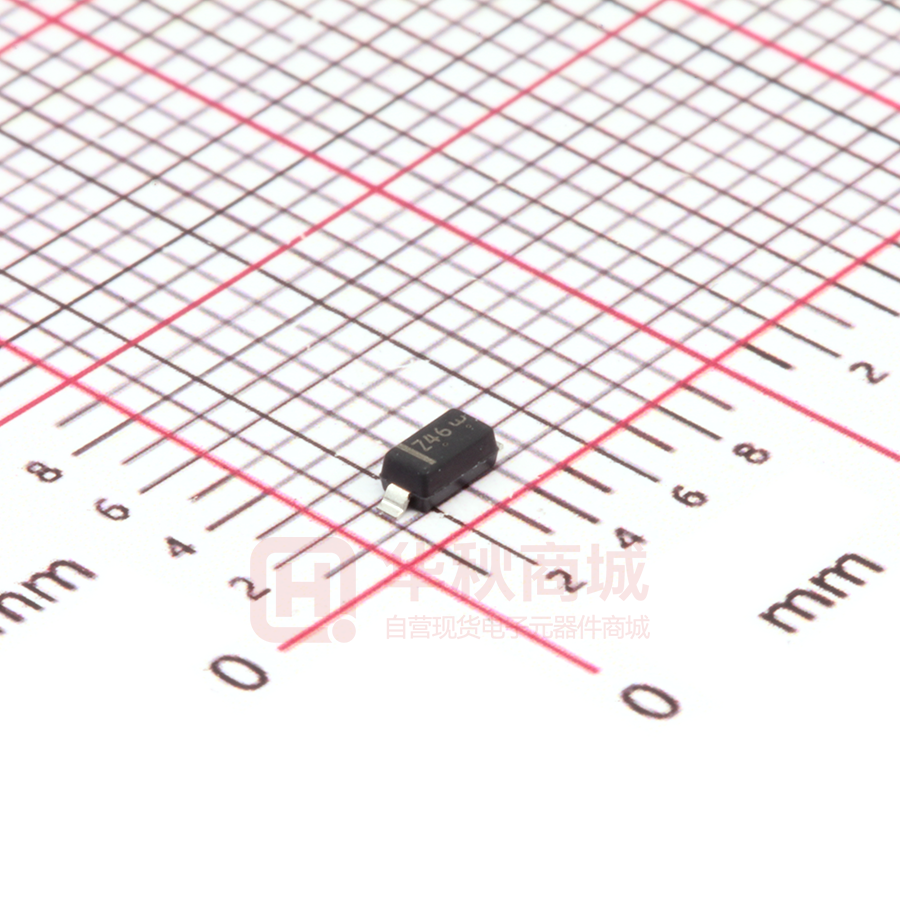

LBAT46T1G
S-LBAT46T1G
Schottky Power Rectifier
1. FEATURES
●
Very small conduction losses
●
Negligible switching losses
●
Low forward voltage drop
●
Surface mount device
●
Lead and Mounting Surface Temperature for Soldering Purposes:
SOD123
260°C Max. for 10 Seconds
●
We declare that the material of product compliance with
1
Cathode
RoHS requirements and Halogen Free.
●
S- prefix for automotive and other applications requiring
2
Anode
unique site and control change requirements; AEC-Q101
qualified and PPAP capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
LBAT46T1G
Z46
3000/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Repetitive peak reverse voltage
Symbol
VRRM
Limits
100
Unit
V
IF
150
mA
IFSM
1
A
Power Dissipation
PD
250
mW
Storage temperature range
Tstg
-55~+150
℃
Maximum operating junction temperature(Note 1)
Tj
150
℃
Maximum soldering temperature(Note 1)
TL
260
℃
Continuous forward current
Surge Non repetitive forward current
1. Pulse test: tp = 380 µs, δ < 2 %
4. THERMAL CHARACTERISTICS
Parameter
Symbol
RθJA
Thermal resistance from junction to ambient
2.On epoxy printed circuit board with recommended pad layout
Leshan Radio Company, LTD.
Rev.B Jun. 2018
Limits
500
Unit
℃/W
1/4
LBAT46T1G, S-LBAT46T1G
Schottky Power Rectifier
5. ELECTRICAL CHARACTERISTICS (Ta= 25°C)
Characteristic
Symbol
Min.
Typ.
Max.
(VR=1.5V)
-
-
0.5
(VR=10V)
-
-
0.8
(VR=50V)
-
-
2
-
-
5
(VR=1.5V)
-
-
5
(VR=10V)
-
-
7.5
(VR=50V)
-
-
15
(VR=75V)
-
-
20
-
-
0.25
-
-
0.45
-
-
1
-
11
-
-
6
-
Unit
Reverse Leakage Current(Tj = 25°C)
(VR=75V)
Reverse Leakage Current(Tj = 60°C)
IR(Note 3)
µA
Forward Voltage(Tj = 25°C)
(IF=0.1mA)
(IF=10mA)
VF
(IF=250mA)
V
Diode Capacitance
(VR =0V, f=1.0MHz)
(VR =1V, f=1.0MHz)
Cd
pF
3. Pulse test: tp = 5 ms, δ < 2 %
4. Pulse test: tp = 380 µs, δ < 2 %
Leshan Radio Company, LTD.
Rev.B Jun. 2018
2/4
LBAT46T1G, S-LBAT46T1G
Schottky Power Rectifier
6.ELECTRICAL CHARACTERISTICS CURVES
1
1.00E-02
150℃
1.00E-03
150℃
0.01
IR,Reverse Current(A)
IF,Forward Current(A)
0.1
-55℃
25℃
85℃
1.00E-05
25℃
1.00E-06
1.00E-07
85℃
0.001
1.00E-04
1.00E-08
0.0001
0
0.2
0.4
0.6
0.8
1
-55℃
1.00E-09
VF,Forward Voltage(V)
IF vs. VF
0
20
40
60
80
VR,Reverse Voltage(V)
100
IR vs. VR
12
f=1MHz
Ta=25℃
Cj,Capacitor(pF)
10
8
6
4
2
0
0
10
20
30
40
VR,Reverse Voltage(V)
50
Capacitance
Leshan Radio Company, LTD.
Rev.B Jun. 2018
3/4
LBAT46T1G, S-LBAT46T1G
Schottky Power Rectifier
7.OUTLINE AND DIMENSIONS
Notes:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD
FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM
THICKNESS OF BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS.
MILLIMETERS
INCHES
DIM MIN
A 0.94
NOM
MAX
MIN
NOM
MAX
1.17
1.35
0.037 0.046 0.053
A1
0.00
0.05
0.10
0.000 0.002 0.004
b
0.51
0.61
0.71
0.020 0.024 0.028
c
---
---
0.15
D
1.40
1.60
1.80
0.055 0.063 0.071
E
HE
2.54
2.69
2.84
0.100 0.106 0.112
3.56
3.68
3.86
0.140 0.145 0.152
L
0.25
---
---
θ
0°
---
10°
---
---
0.006
0.010
---
---
0°
---
10°
8.SOLDERING FOOTPRINT
Leshan Radio Company, LTD.
Rev.B Jun. 2018
4/4
