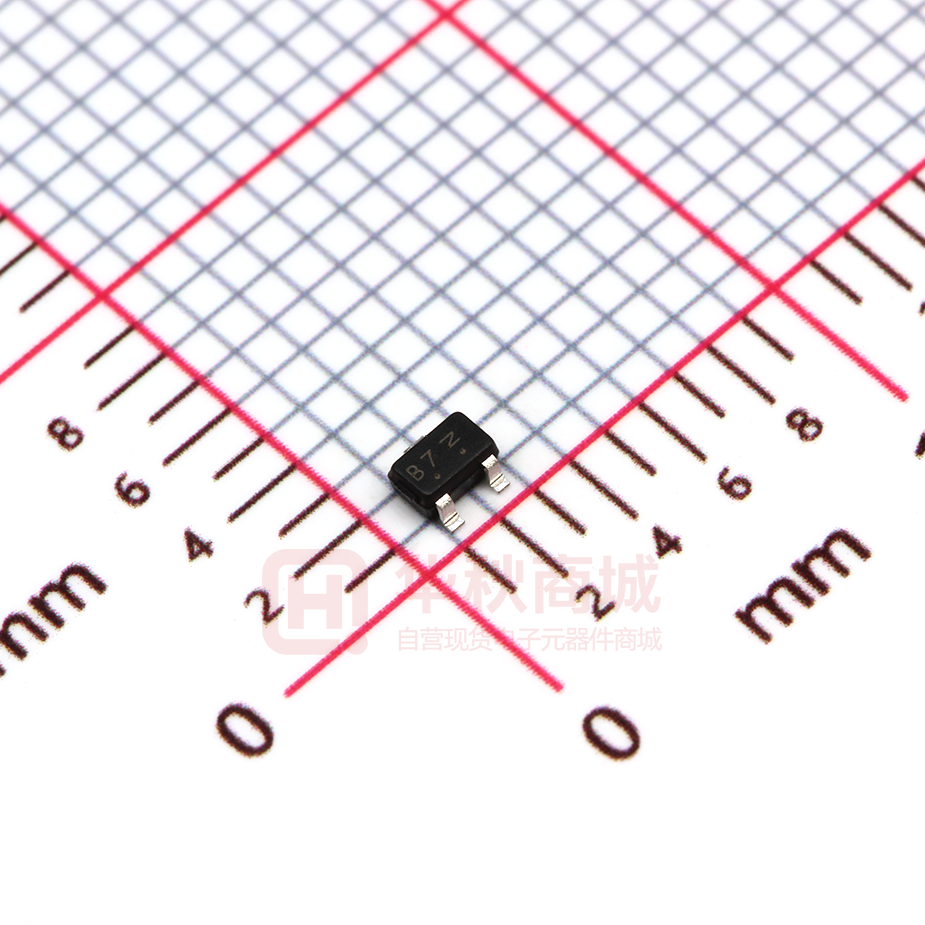

LBAT54AWT1G

LBAT54AWT1G S-LBAT54AWT1G Dual Series Schottky Barrier Diodes 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- Prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. SC70(SOT-323) 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LBAT54AWT1G B7 3000/Tape&Reel LBAT54AWT3G B7 10000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Symbol Limits VR 30 Unit V PF 200 mW 1.6 Reverse Voltage Forward Power Dissipation @ TA = 25°C Derate above 25°C Forward Current(DC) IF 200 mW/℃ mA Junction Temperature TJ 125 ℃ Tstg -55~+150 ℃ Storage Temperature Range 4. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Symbol Reverse Breakdown Voltage V(BR)R (IR = 10 µA) Total Capacitance CT (VR = 1.0 V, f = 1.0 MHz) Reverse Leakage IR (VR = 25 V) Min. Typ. Max. 30 - - - - 10 - 0.5 2 - 0.22 0.29 0.24 0.32 - 0.35 0.4 - 0.41 0.5 0.52 1 - - 5 - - 200 300 600 Unit V pF µA Forward Voltage (IF = 0.1 mA) (IF = 1.0 mA) VF (IF = 10 mA) (IF = 30 mA) (IF = 100 mA) Reverse Recovery Time trr (IF = IR = 10 mA, IR(REC) = 1.0 mA) IF Forward Current (DC) Repetitive Peak Forward Current IFRM Non–Repetitive Peak Forward Current (t < 1.0 s) IFSM Leshan Radio Company, LTD. Rev.O Apr. 2017 V nS mA mA mA 1/3 LBAT54AWT1G,S-LBAT54AWT1G Dual Series Schottky Barrier Diodes 5.ELECTRICAL CHARACTERISTICS CURVES 1000 1000 125℃ 100 85℃ 125℃ IR, Reverse Current(uA) IF, Forward Current(mA) 100 85℃ 10 25℃ 1 10 1 25℃ 0.1 0.01 -55℃ 0.001 -55℃ 0.0001 0.1 0 0.1 0.2 0.3 0.4 VF, Forward Voltage(V) 0.5 0.6 Forward Characteristics 0 5 10 15 20 VR, Reverse Voltage(V) 25 30 Reverse Characteristics 18 f=1MHz 16 14 12 10 8 6 4 2 0 0 5 10 15 20 VR, Reverse Voltage(V) 25 30 Capacitor Characteristics Leshan Radio Company, LTD. Rev.O Apr. 2017 2/3 LBAT54AWT1G,S-LBAT54AWT1G Dual Series Schottky Barrier Diodes 6.OUTLINE AND DIMENSIONS SC70 DIM MIN NOR MAX A 0.80 0.95 1.00 A1 0.00 0.05 0.7 REF 0.10 0.30 0.35 0.40 A2 b c 0.10 0.15 0.25 D 1.80 2.05 2.20 E 1.15 1.30 1.35 e 1.20 1.30 1.40 e1 0.65 BSC L 0.20 0.35 0.56 He 2.00 2.10 2.40 ALL Dimension in mm 7.SOLDERING FOOTPRINT SC70 Leshan Radio Company, LTD. Rev.O Apr. 2017 DIM MIN A 1.90 B 0.65 C 0.65 X 0.70 Y 0.90 3/3
