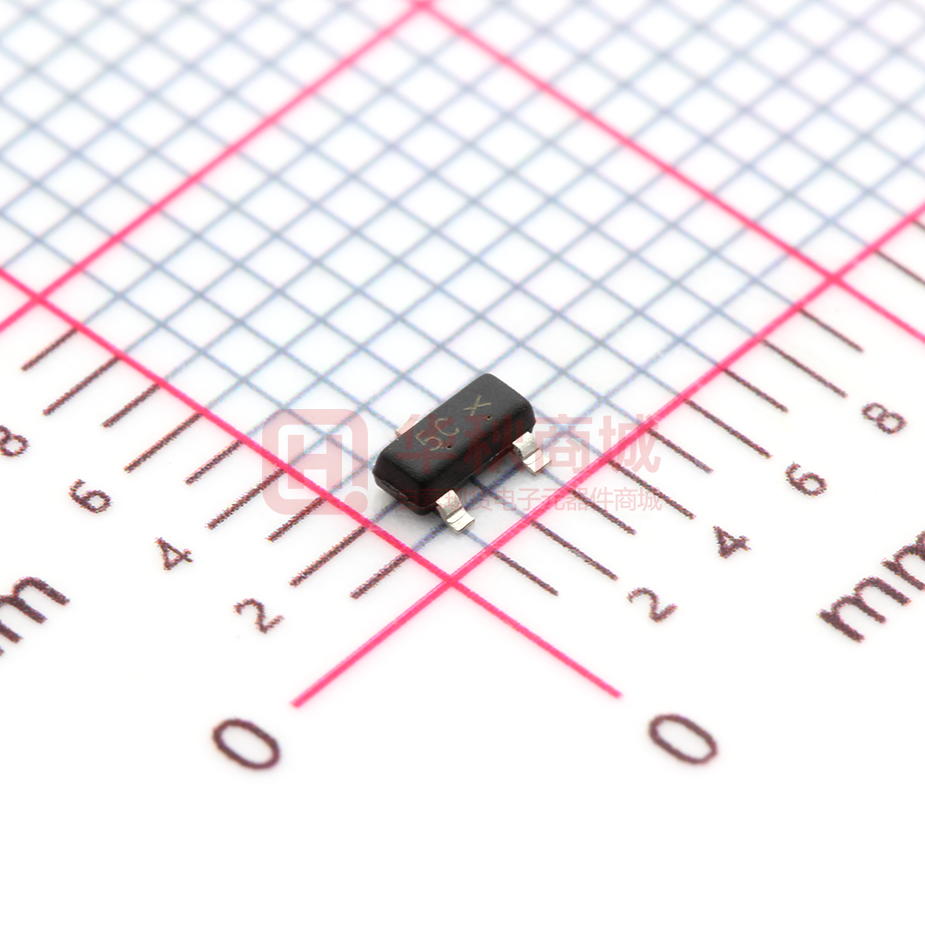

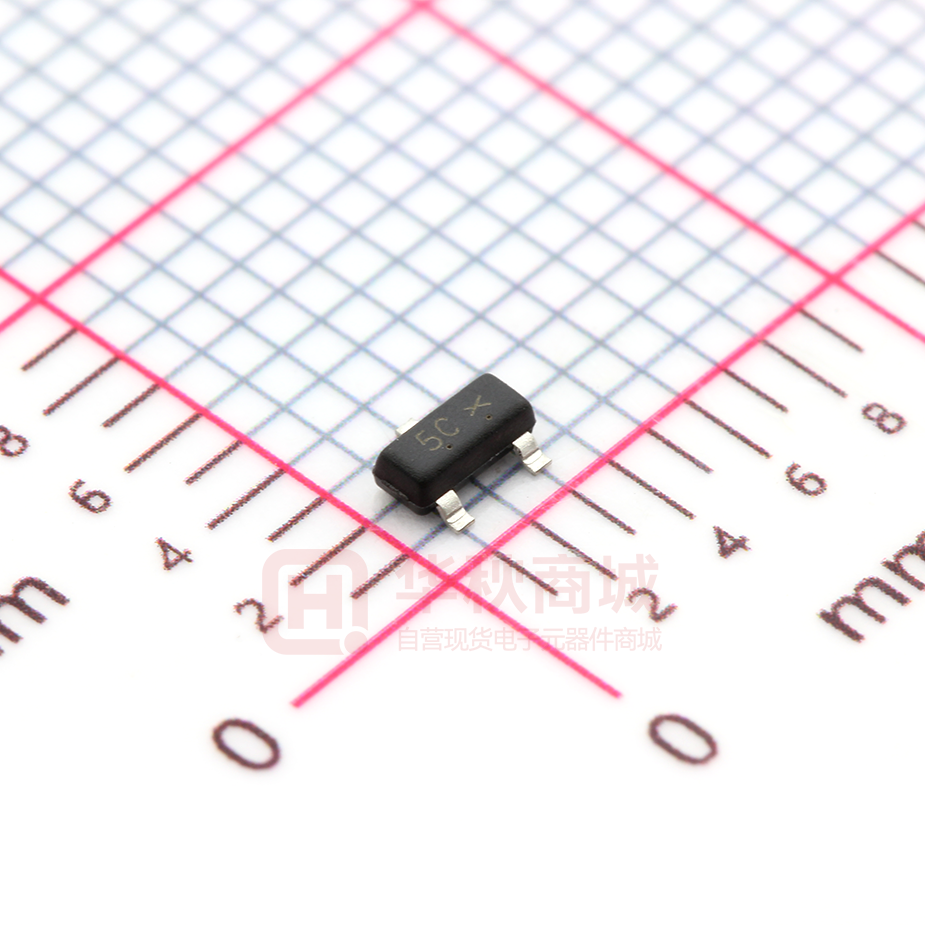

LBAT54CLT1G

LESHAN RADIO COMPANY, LTD. DUAL SERIES SCHOTTKY BARRIER DIODE These Schottky barrier diodes are designed for high speed applications, circuit protection, and voltage clamping. low forward voltage reduces conduction loss. Miniature package is excellent for hand held and portable applications space is limited. LBAT54CLT1G S-LBAT54CLT1G ●FEATURES 1)Extremely Fast Switching Speed 2) Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc 3)We declare that the material of product compliant with RoHS requirements and Halogen Free. 4)S- Prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ●DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping 3000/Tape&Reel LBAT54CLT1G 5C 10000/Tape&Reel LBAT54CLT3G 5C ●MAXIMUM RATINGS(Ta = 25℃) Rating DC reverse voltage Forward Power Dissipation @TA = 25°C Derate above 25°C DC forward current Junction temperature Storage temperature Symbol VR PF IF TJ Tstg Limits 30 225 mW 1.8 mW/°C 200Max mA 125Max ℃ −55∼+150 ℃ ●ELECTRICAL CHARACTERISTICS (Ta= 25℃) Parameter Symbol Min. Typ. Reverse Breakdown V(BR)R 30 – Voltage CT Total Capacitance – – IR Reverse current – 0.5 VF Forward voltage – 0.22 VF Forward voltage – 0.29 VF Forward voltage – 0.35 VF Forward voltage – 0.41 VF Forward voltage – 0.52 Reverse Recovery trr – – Time Repetitive Peak IFRM – – Forward Current Non–Repetitive IFSM – – Peak Forward May,2015 Unit V Max. Unit – V I R = 10 μA 10 2 0.24 0.32 0.4 0.5 1 pF V V V V V VR = 1.0 V, f = 1.0 MHz VR=25V IF=0.1mA IF=1mA IF=10mA IF=30mA IF=100mA 5 ns I F = I R = 10mA,I R(REC) = 1.0 mA 300 mA 600 mA μA Conditions (t < 1.0 s) Rev.C 1/3 LESHAN RADIO COMPANY, LTD. LBAT54CLT1G,S-LBAT54CLT1G ELECTRICAL CHARACTERISTIC CURVES 10000 100 1000 10 IR(uA) IF(mA) 100 1 10 1 0.1 0.1 0 0.1 0.2 -55℃ 50℃ 125℃ 0.3 0.4 VF(V) -25℃ 75℃ 0.5 0.6 25℃ 100℃ 0.01 0 10 -55℃ 50℃ 125℃ FIG.1 Forward Characteristics 20 VR(V) -25℃ 75℃ 30 40 25℃ 100℃ FIG.2 Reverse Characteristics f=1MHz 12 10 Ct(pF) 8 6 4 2 0 0 10 20 VR(V) 30 40 FIG.3 Capacitance May,2015 Rev.C 2/3 LESHAN RADIO COMPANY, LTD. LBAT54CLT1G,S-LBAT54CLT1G SOT-23 Dimension Outline: NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 Soldering Footprint: 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 May,2015 inches mm Rev.C 3/3
