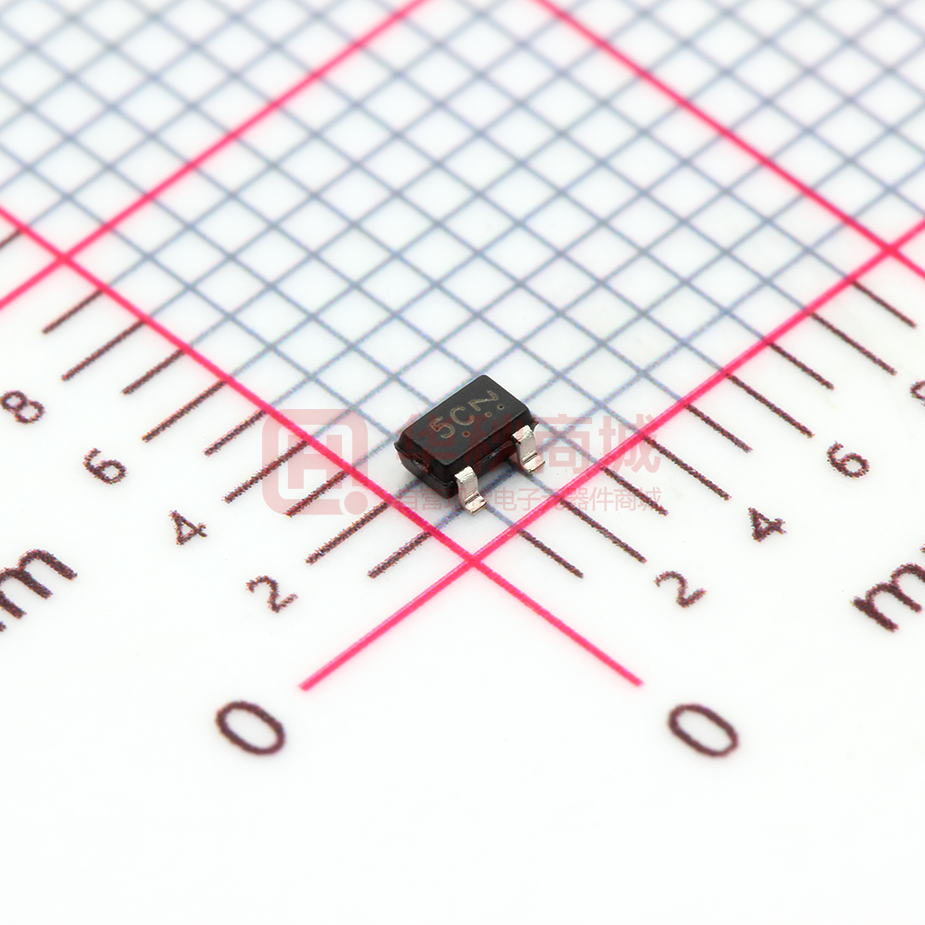

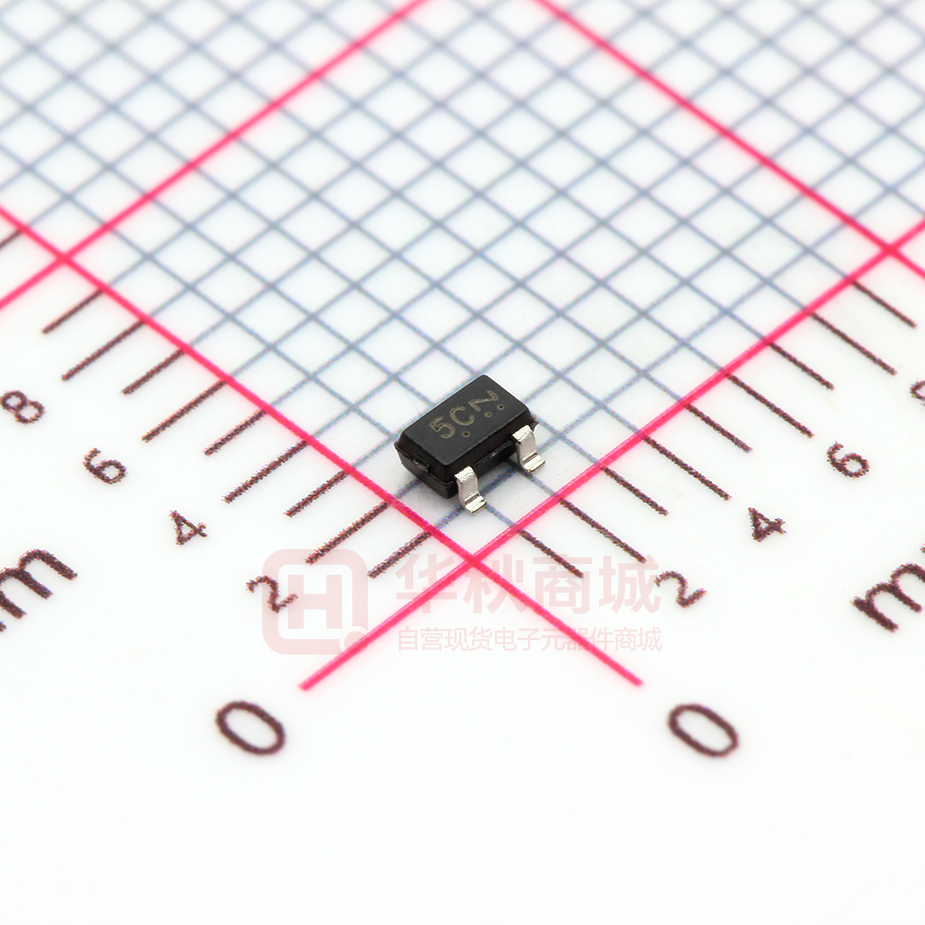

LBAT54CWT1G

LESHAN RADIO COMPANY, LTD. DUAL SERIES SCHOTTKY BARRIER DIODE These Schottky barrier diodes are designed for high speed applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface package is excellent for hand held and portable applications space is limited. LBAT54CWT1G S-LBAT54CWT1G ●FEATURES 1)Extremely Fast Switching Speed 2) Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc 3)We declare that the material of product compliant with RoHS requirements and Halogen Free. 4)S- Prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 3 1 2 SC-70 ANODE ANODE 1 ●DEVICE MARKING AND ORDERING INFORMATION 2 3 CATHODE Device LBAT54CWT1G LBAT54CWT3G Marking 5C 5C Shipping 3000/Tape&Reel 10000/Tape&Reel ●MAXIMUM RATINGS(Ta = 25℃) Parameter DC reverse voltage Total Device Dissipation FR-5 Board,TA = 25°C Derate above 25°C DC forward current Junction temperature Storage temperature Symbol VR PD IF Tj Tstg Limits 30 Unit V 225 1.8 200 125 −55∼+150 mW mW/°C mA ℃ ℃ ●ELECTRICAL CHARACTERISTICS (Ta= 25℃) Parameter Symbol Min. V(BR)R Reverse Breakdown Voltage 30 VF Forward voltage – VF Forward voltage – VF Forward voltage – VF Forward voltage – VF Forward voltage – IR Reverse current – Repetitive Peak Forward Current IFRM – Non–Repetitive Peak Forward Current (t < 1.0 s) IFSM – Typ. – 0.22 0.29 0.35 0.41 0.52 0.5 – Max. – 0.24 0.32 0.4 0.5 1 2 300 Unit V V V V V V – 600 mA μA mA Total Capacitance CT – – 10 pF Reverse Recovery Time trr – – 5 ns May,2015 Conditions IR = 10 μA IF=0.1mA IF=1mA IF=10mA IF=30mA IF=100mA VR=25V V R = 1.0 V, f = 1.0 MHz IF = I R = 10 mAdc, I R(REC) = 1.0 mAdc Rev.C 1/3 LESHAN RADIO COMPANY, LTD. LBAT54CWT1G,S-LBAT54CWT1G ELECTRICAL CHARACTERISTIC CURVES 10000 100 1000 100 IF(mA) IR(uA) 10 10 1 1 0.1 0.01 0.1 0 0.2 0.4 0.6 0 10 20 VR(V) -55℃ 50℃ 125℃ -25℃ 75℃ VF(V) -55℃ 50℃ 125℃ -25℃ 75℃ 25℃ 100℃ 30 40 25℃ 100℃ FIG.2 Reverse Characteristics FIG.1 Forward Characteristics f=1MHz 12 10 Ct(pF) 8 6 4 2 0 0 10 20 VR(V) 30 40 FIG.3 Capacitance May,2015 Rev.C 2/3 LESHAN RADIO COMPANY, LTD. LBAT54CWT1G,S-LBAT54CWT1G SC-70 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. A DIM L A B C D G H J K L N S 3 B S 1 2 D G C 0.05 (0.002) J N INCHES MILLIMETERS MIN MA X MIN MA X 0.071 0.087 1.80 2.20 0.045 0.053 1.15 1.35 0.032 0.040 0.80 1.00 0.012 0.016 0.30 0.40 0.047 0.055 1.20 1.40 0.000 0.004 0.00 0.10 0.004 0.010 0.10 0.25 0.017 REF 0.425 REF 0.026 BSC 0.650 BSC 0.028 REF 0.700 REF 0.079 0.095 2.00 2.40 K H 0.025 0.65 0.025 0.65 0.075 1.9 0.035 0.9 0.028 0.7 inches mm May,2015 Rev.C 3/3
