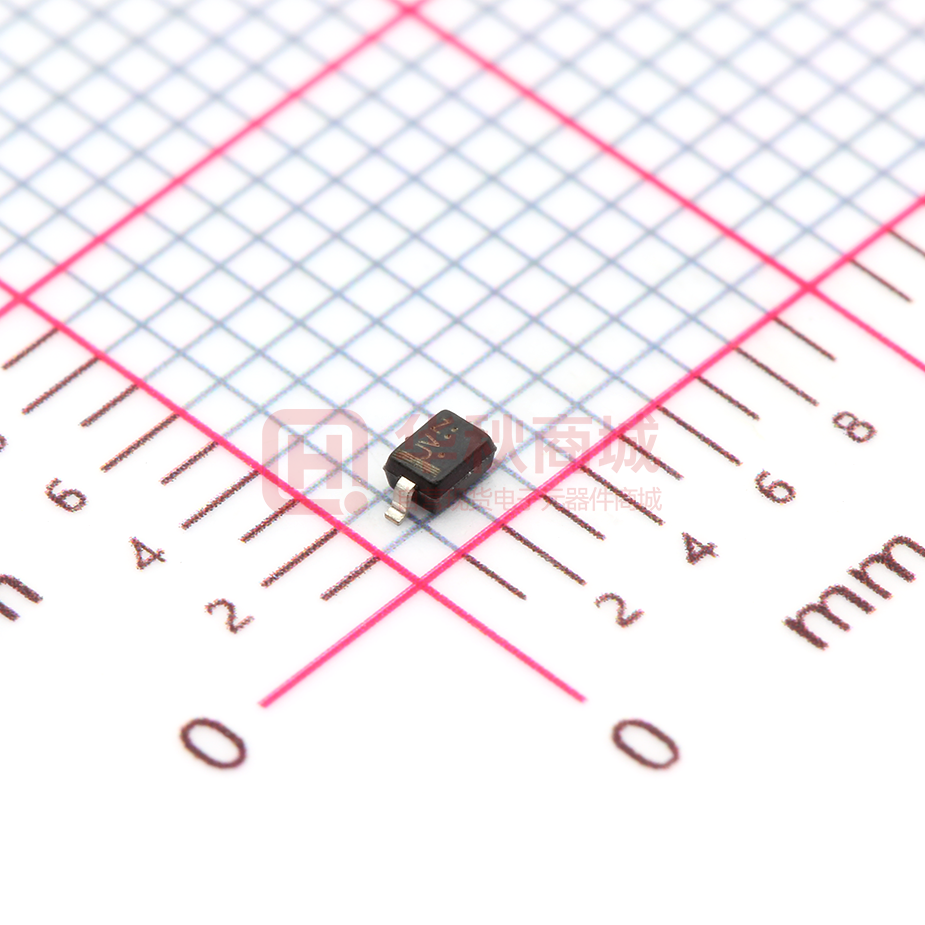

LBAT54HT1G

LESHAN RADIO COMPANY, LTD. Schottky Barrier Diodes LBAT54HT1G These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. • Extremely Fast Switching Speed • Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc • Device Marking: JV 1 2 We declare that the material of product compliance with RoHS requirements. SOD-323 ORDERING INFORMATION Marking Shipping LBAT54HT31G Device JV 3000/Tape & Reel LBAT54HT33 G JV 10000/Tape & Reel 1 CATHODE 2 ANODE MAXIMUM RATINGS (TJ =125°C unless otherwise noted ) Rating Reverse Voltage Symbol VR Value 30 Unit V Characteristic Total Device Dissipation FR-5 Board,* Symbol PD Max Unit 200 mW 1.57 635 mW/°C °C/W TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient RθJA Junction Temperature Storage Temperature Range TJ T stg 125Max –55 to +150 °C °C * FR-4 Minimum Pad ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) (EACH DIODE) Characteristic Reverse Breakdown Voltage (I R = 10 µA) Total Capacitance (V R = 1.0 V, f = 1.0 MHz) Reverse Leakage (V R = 25 V) Forward Voltage (I F = 0.1 mAdc) Forward Voltage (I F = 0.15 mAdc) Forward Voltage (I F = 0.15 mAdc, Tj =-25°C) Forward Voltage (I F = 0.15 mAdc, Tj =85°C) Forward Voltage (I F = 30 mAdc) Forward Voltage (I F = 100 mAdc) Reverse Recovery Time (I F = I R = 10 mAdc, I R(REC) = 1.0 mAdc, Figure 1) Forward Voltage (I F = 1.0 mAdc) Forward Voltage (I F = 10 mAdc) Forward Current (DC) Repetitive Peak Forward Current Non–Repetitive Peak Forward Current (t < 1.0 s) Symbol V(BR)R CT IR VF VF VF VF VF VF Min 30 — — — — — — — — Typ — — 0.5 0.22 0.24 0.33 0.16 0.41 0.52 Max — 10 2.0 0.24 0.26 0.35 0.18 0.5 1.0 Unit Volts pF µAdc Vdc Vdc Vdc Vdc Vdc Vdc trr — — 5.0 ns VF VF IF IFRM IFSM — — — — — 0.29 0.35 — — — 0.32 0.40 200 300 600 Vdc Vdc mAdc mAdc mAdc Rev.A 1/3 LESHAN RADIO COMPANY, LTD. LBAT54HT1G 2.0 k 820 Ω +10 V 100 µH IF 0.1 µF tp tr 0.1µF IF t t rr 10% t 90% DUT 50 Ω OUTPUT PULSE GENERATOR 50 Ω INPUT SAMPLING OSCILLOSCOPE i IR INPUT SIGNAL V R(REC) = 1.0 mA OUTPUT PULSE (I F = I R = 10 mA; MEASURED at i R(REC) = 1.0 mA) R Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (I F ) of 10mA. Notes: 2. Input pulse is adjusted so I R(peak) is equal to 10mA. Notes: 3. t p » t rr Figure 1. Recovery Time Equivalent Test Circuit TYPICAL CHARACTERISTICS 1000 I R , REVERSE CURRENT (µA) – 40°C 10 150°C 125°C 1.0 85°C 25°C –25°C –55°C 100 10 1.0 0.1 0.01 0.001 0.1 0.0 0.1 0.2 0.3 0.4 0.5 0 0.6 5 10 15 20 25 V F , FORWARD VOLTAGE (VOLTS) V R , REVERSE VOLTAGE (VOLTS) Figure 2. Forward Voltage Figure 3. Leakage Current 14 C T , TOATAL CAPACITANCE (pF) I F , FORWARD CURRENT (mA) 100 12 10 8 6 4 2 0 0 5 10 15 20 25 30 V R , REVERSE VOLTAGE (VOLTS) Figure 4. Total Capacitance Rev.A 2/3 30 LESHAN RADIO COMPANY, LTD. LBAT54HT1G SOD-323 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 A3 A C NOTE 3 L NOTE 5 A1 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 SOLDERING FOOTPRINT* 0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 Rev.A 3/3
