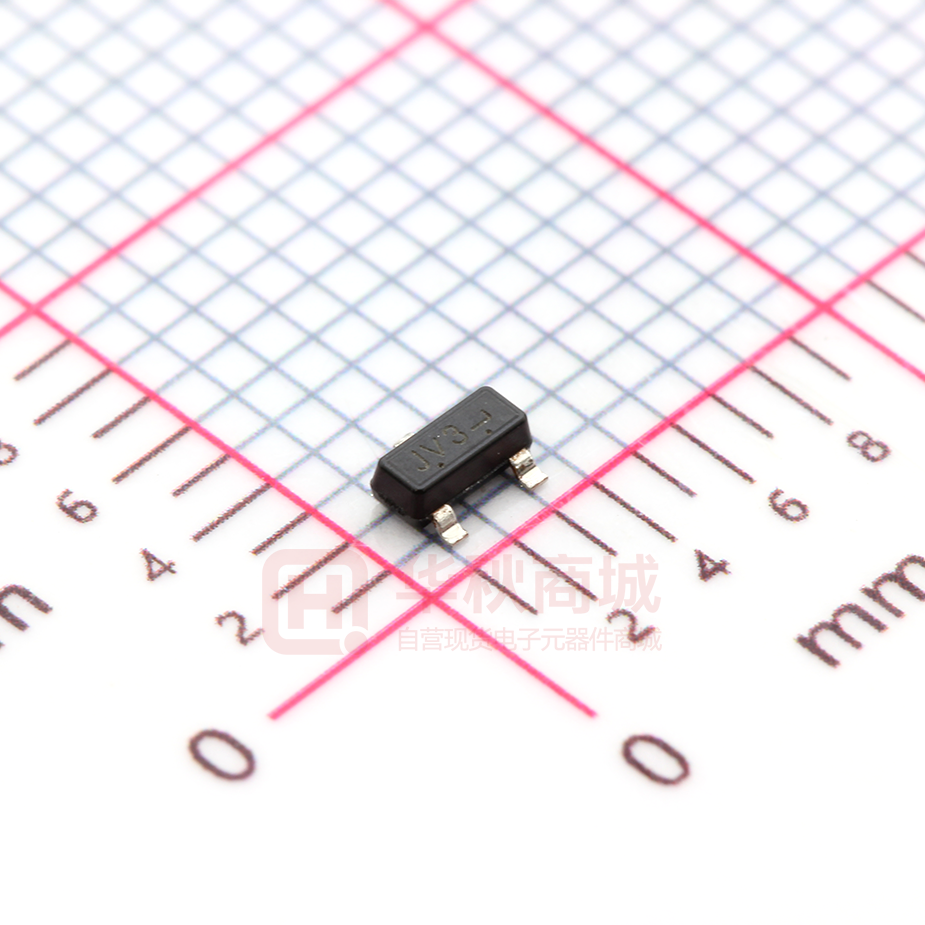

LBAT54LT1G

LESHAN RADIO COMPANY, LTD. Dual Series Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface package is excellent for hand held and portable applications where space is limited. LBAT54LT1G S-LBAT54LT1G ●FEATURES 1)Extremely Fast Switching Speed 2)Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc 3)We declare that the material of product compliant with RoHS requirements and Halogen Free. 4)S- Prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 3 1 2 SOT-23 ANODE 1 CATHODE 3 ●DEVICE MARKING AND ORDERING INFORMATION Shipping Device Marking 3000/Tape&Reel LBAT54LT1G JV3 10000/Tape&Reel LBAT54LT3G JV3 ●MAXIMUM RATINGS(Ta = 25℃) Rating Symbol Limits Unit VR DC reverse voltage 30 V Forward Power Dissipation 225 mW PF @TA = 25°C Derate above 25°C 1.8 mW/°C IF DC forward current 200Max mA Junction temperature TJ 125Max °C Storage temperature Tstg −55∼+150 °C ●ELECTRICAL CHARACTERISTICS (Ta= 25℃) Parameter Symbol Min. Typ. Reverse Breakdown V(BR)R 30 – Voltage CT – – Total Capacitance Reverse current Forward voltage Forward voltage Forward voltage Forward voltage Forward voltage Reverse Recovery Time Repetitive Peak Forward Current Non–Repetitive Peak Forward Current May,2015 Max. Unit Conditions – V I R = 10 μA pF V R = 1.0 V, f = 1.0 MHz μA VR=25V IF=0.1mA IF=1mA IF=10mA IF=30mA IF=100mA I F = I R = 10mAdc, I R(REC) = 1.0 mAdc IR VF VF VF VF VF – – – – – – – 0.22 0.29 0.35 0.41 0.52 10 2.0 0.24 0.32 0.4 0.5 1.0 trr – – 5.0 ns IFRM – – 300 mA IFSM – – 600 mA V V V V V (t < 1.0 s) Rev.C 1/3 LESHAN RADIO COMPANY, LTD. LBAT54LT1G,S-LBAT54LT1G ELECTRICAL CHARACTERISTIC CURVES 100 10000 1000 100 IR(uA) IF(mA) 10 1 10 1 0.1 0.1 0 0.1 0.2 -55℃ 50℃ 125℃ 0.3 0.4 VF(V) -25℃ 75℃ 0.5 0.6 0.01 0 10 -55℃ 50℃ 125℃ 25℃ 100℃ FIG.1 Forward Characteristics 20 VR(V) -25℃ 75℃ 30 40 25℃ 100℃ FIG.2 Reverse Characteristics f=1MHz 12 10 Ct(pF) 8 6 4 2 0 0 10 20 VR(V) 30 40 FIG.3 Capacitance May,2015 Rev.C 2/3 LESHAN RADIO COMPANY, LTD. LBAT54LT1G,S-LBAT54LT1G SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 May,2015 inches mm Rev.C 3/3
