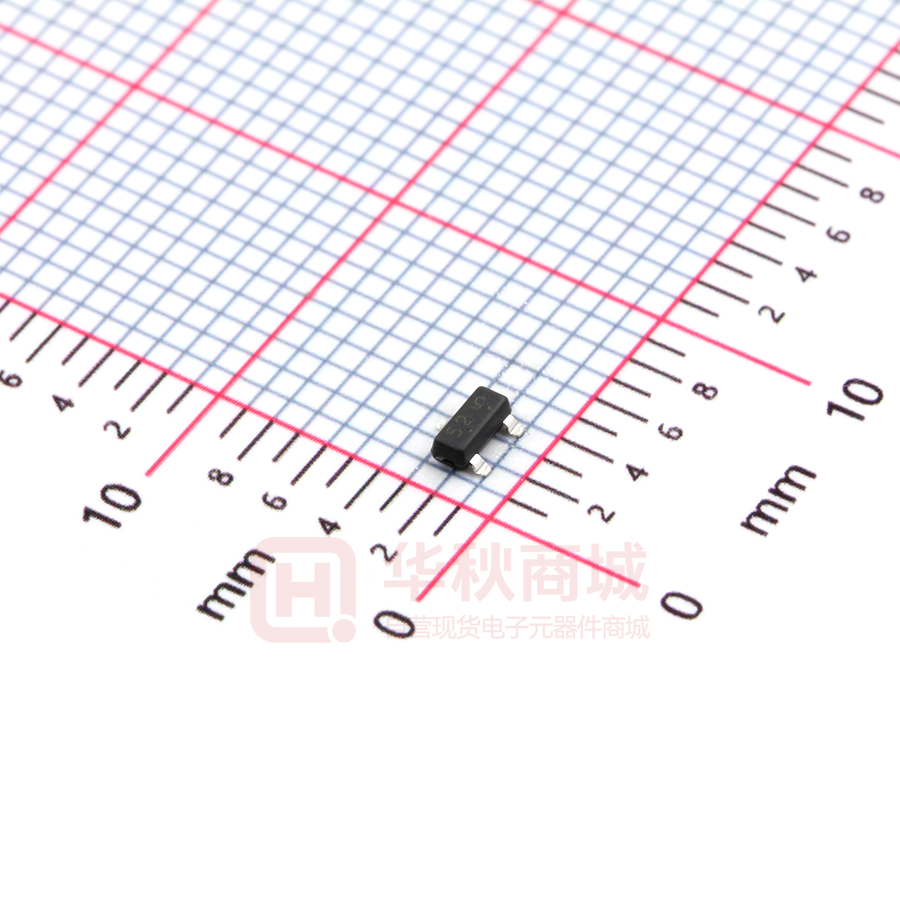

LBAV199LT1G

LESHAN RADIO COMPANY, LTD. Surface Mount Low Leakge Diode LBAS116LT1G LBAW156LT1G LBAV170LT1G FEATURE . · · · · · Ultra-Small Surface Mount Package Very Low Leakage Current LBAV199LT1G Lead Free/RoHS Compliant (Note 2) Qualified to AEC-Q101 Standards for High Reliability We declare that the material of product compliance with RoHS requirements. 3 MECHANICAL DATA · · Case: SOT-23 · · · Moisture sensitivity: Level 1 per J-STD-020C · Weight: 0.002 grams (approx.) 1 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 2 SOT–23 Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). DEVICE MARKING ORDERING INFORMATION Device Marking Shipping LBAS116LT1G K50 3000 Tape & Reel LBAS116LT3G K50 10000 Tape & Reel LBAW156LT1G 53 3000 Tape & Reel LBAW156LT3G 53 10000 Tape & Reel LBAV170LT1G 51 3000 Tape & Reel LBAV170LT3G 51 10000 Tape & Reel LBAV199LT1G 52 3000 Tape & Reel LBAV199LT3G 52 10000 Tape & Reel LBAW156LT1G LBAS116LT1G LBAV199LT1G LBAV170LT1G Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol Value Unit VRRM VRWM VR 85 V VR(RMS) 60 V IFM 215 125 mA Repetitive Peak Forward Current IFRM 500 mA Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 1.0ms @ t = 1.0s IFSM 4.0 1.0 0.5 A Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Single Diode Double Diode Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Pd 150 mW RqJA 833 °C/W Tj , TSTG -65 to +150 °C Notes: 1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. No purposefully added lead. Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LBAS116LT1G, LBAW156LT1G, LBAV170LT1G, LBAV199LT1G Electrical Characteristics @ TA = 25°C unless otherwise specified Characteristic Symbol Min Typ Max Unit V(BR)R 85 ¾ ¾ V IR = 100mA Forward Voltage VF ¾ ¾ 0.90 1.0 1.1 1.25 V IF = 1.0mA IF = 10mA IF = 50mA IF = 150mA Leakage Current (Note 3) IR ¾ ¾ 5.0 80 nA nA VR = 75V VR = 75V, Tj = 150°C Total Capacitance CT ¾ 2 ¾ pF VR = 0, f = 1.0MHz Reverse Recovery Time trr ¾ ¾ 3.0 ms IF = IR = 10mA, Irr = 0.1 x IR, RL = 100W Reverse Breakdown Voltage (Note 3) 3. Short duration test pulse used to minimize self-heating effect. 200 150 100 50 0 0 25 50 75 100 125 150 1000 100 10 1.0 0.1 0.01 0 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Power Derating Curve 0.4 0.8 1.2 1.6 2.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 10 160 VR = 75V TA, AMBIENT TEMPERATURE (°C) 140 IR, REVERSE CURRENT (nA) PD, POWER DISSIPATION (mW) 250 IF, INSTANTANEOUS FORWARD CURRENT (mA) Notes: Test Condition 1 0.1 0 50 100 150 TA, AMBIENT TEMPERATURE (°C) Fig. 3 Typical Reverse Characteristics 200 120 100 IF = 1mA IF = 150mA 80 IF = 10mA 60 IF = 50mA 40 20 0 0.00 0.20 0.40 0.60 0.80 1.00 1.20 1.40 VF(AVE), AVERAGE FORWARD VOLTAGE (V) Fig. 4 Typical Forward Voltage vs Ambient Temperature Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LBAS116LT1G, LBAW156LT1G, LBAV170LT1G, LBAV199LT1G SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. ANODE 2. CAHODE 3. CAHODE/ANODE 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 3/3
