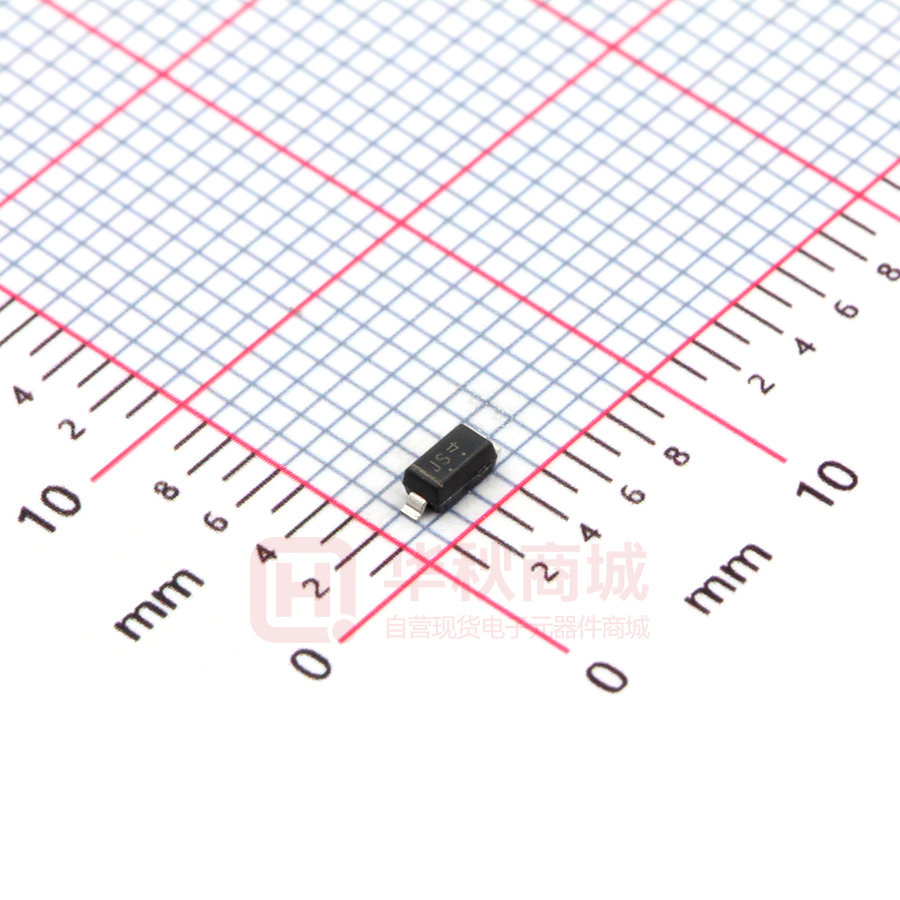

LBAV21T1G

LESHAN RADIO COMPANY, LTD. HIGH VOLTAGE SWITCHING DIODE LBAV21T1G S-LBAV21T1G • We declare that the material of product compliance with RoHS requirements. • S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. SOD–123 ORDERING INFORMATION Device LBAV21T1G Marking Shipping JS 3000/Tape&Reel JS 10000/Tape&Reel 1 CATHODE 2 ANODE S-LBAV21T1G LBAV21T3G S-LBAV21T3G MAXIMUM RATINGS Rating Continuous Reverse Voltage Peak Forward Current Peak Forward Surge Current Symbol VR IF IFM(surge) Value 250 200 625 Unit Vdc mAdc mAdc Symbol PD Max 250 Unit mW RθJA 2 500 mW/°C °C/W TJ, Tstg –55 to+150 °C THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR–5 Board,* TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Junction and Storage Temperature Range *FR–5 Minimum Pad ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Max Unit – – 0.1 100 250 – – – 1000 1250 CD – 5.0 pF trr – 50 ns OFF CHARACTERISTICS Reverse Voltage Leakage Current (VR = 200 Vdc) (VR = 200 Vdc, TJ = 150°C) Reverse Breakdown Voltage (IBR = 100 µAdc) Forward Voltage (IF = 100 mAdc) (IF = 200 mAdc) Diode Capacitance (VR = 0, f = 1.0 MHz) Reverse Recovery Time (IF = IR = 30 mAdc, RL = 100 Ω) µAdc IR V(BR) VF Vdc mV Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LBAV21T1G,S-LBAV21T1G 820 Ω +10 V 2k 100 µH 0.1 µF tp tr IF 0.1 µF IF t trr 10% t DUT 50 Ω OUTPUT PULSE GENERATOR 50 Ω INPUT SAMPLING OSCILLOSCOPE 90% iR(REC) = 3.0 mA IR VR OUTPUT PULSE (IF = IR = 30 mA; measured at iR(REC) = 3.0 mA) INPUT SIGNAL Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (IF) of 30 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 30 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit 1200 7000 IR, REVERSE CURRENT (n A) 6000 VF, FORWARD VOLTAGE (mV) 1000 800 600 400 5000 4000 3000 6 5 4 3 2 200 1 0 1 1 10 100 1000 1 2 5 10 20 50 100 IF, FORWARD CURRENT (mA) VR, REVERSE VOLTAGE (V) Figure 1. Forward Voltage Figure 2. Reverse Leakage 200 300 Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LBAV21T1G,S-LBAV21T1G PACKAGE DIMENSIONS SOD–123 A ÂÂÂ ÂÂÂ NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. C H 1 K DIM A B C D E H J K B E 2 D INCHES MIN MAX 0.055 0.071 0.100 0.112 0.037 0.053 0.020 0.028 0.004 ––– 0.000 0.004 ––– 0.006 0.140 0.152 MILLIMETERS MIN MAX 1.40 1.80 2.55 2.85 0.95 1.35 0.50 0.70 0.25 ––– 0.00 0.10 ––– 0.15 3.55 3.85 STYLE 1: PIN 1. CATHODE 2. ANODE J RECOMMENDED FOOTPRINT FOR SOD–123 ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 1.22 0.048 mm inches SOD–123 Rev.O 3/3
