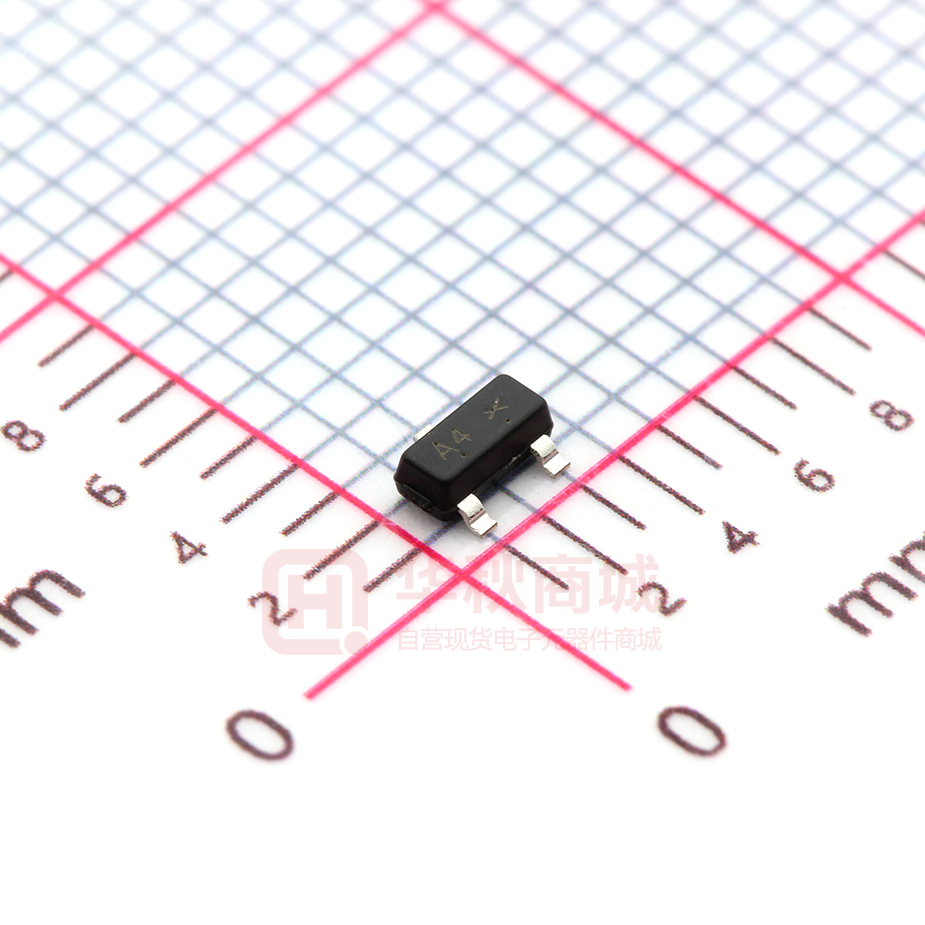

LBAV70LT1G

LESHAN RADIO COMPANY, LTD. Monolithic Dual Switching Diode Common Cathode LBAV70LT1G S-LBAV70LT1G ●FEATURES 1)We declare that the material of product compliant with RoHS requirements and Halogen Free. 2)S- Prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 3 1 ●DEVICE MARKING AND ORDERING INFORMATION Shipping Marking Device LBAV70LT1G A4 3000/Tape&Reel 10000/Tape&Reel A4 LBAV70LT3G ●MAXIMUM RATINGS(Ta = 25℃) Parameter Symbol Reverse Voltage VR IF Forward Current IFM(surge) Peak Forward Surge Current Limits 70 200 500 ●THERMAL CHARACTERISTICS Parameter Symbol Total Device Dissipation FR–5 Board(Note 1) TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient 2 SOT-23 Unit Vdc mAdc mAdc Symbol PD Total Device Dissipation Alumina Substrate(Note 2) T A = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Junction and Storage Temperature Rθ JA PD Rθ JA T J , T stg 1 ANODE 3 CATHODE 2 ANODE Max. Unit 225 1.8 556 mW mW/°C °C/W 300 2.4 417 –55 to +150 mW mW/°C °C/W °C ●ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Parameter Symbol Min Max. Reverse Breakdown Voltage(I(BR)=100uA) V(BR) 70 — IR Reverse Voltage Leakage Current Unit Vdc uAdc (VR = 25 Vdc, TJ = 150°C) — 60 (VR = 70 Vdc) — 2.5 (VR = 70 Vdc, TJ = 150°C) Diode Capacitance (VR = 0, f = 1.0 MHz) CD — — 100 1.5 pF Forward Voltage (IF = 1.0 mAdc) VF — 715 mVdc (IF = 10 mAdc) — 855 (IF = 50 mAdc) — 1000 (IF = 150 mAdc) — 1250 — 6 Reverse Recovery Time (Figure 1) I F=IR=10mAdc,iR(REC)=1.0 mAdc,RL =100 Ω ) trr ns 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. May,2015 Rev.A 1/3 LESHAN RADIO COMPANY, LTD. LBAV70LT1G，S-LBAV70LT1G ELECTRICAL CHARACTERISTIC CURVES 1.0E-04 1.0E-01 1.0E-05 1.0E-02 IR(A) IF(A) 1.0E-06 1.0E-07 1.0E-03 1.0E-08 1.0E-04 0.0 1.0E-09 0.2 0.4 0.6 0.8 VF(V) -40℃ 1.0 1.2 5 10 15 20 25 30 35 40 45 50 VR (V) 25℃ 85℃ FIG.1 Forward Characteristics 25℃ 55℃ 125℃ 150℃ 85℃ FIG.2 Reverse Characteristics 0.88 0.86 Cj(pF) 0.84 0.82 0.80 0.78 0.76 0.74 0 1 2 3 4 5 6 7 8 VR(V) FIG.3 Capacitance May,2015 Rev.A 2/3 LESHAN RADIO COMPANY, LTD. LBAV70LT1G，S-LBAV70LT1G SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 May,2015 inches mm Rev.A 1/3
