LESHAN RADIO COMPANY, LTD.
Monolithic Dual Switching Diode

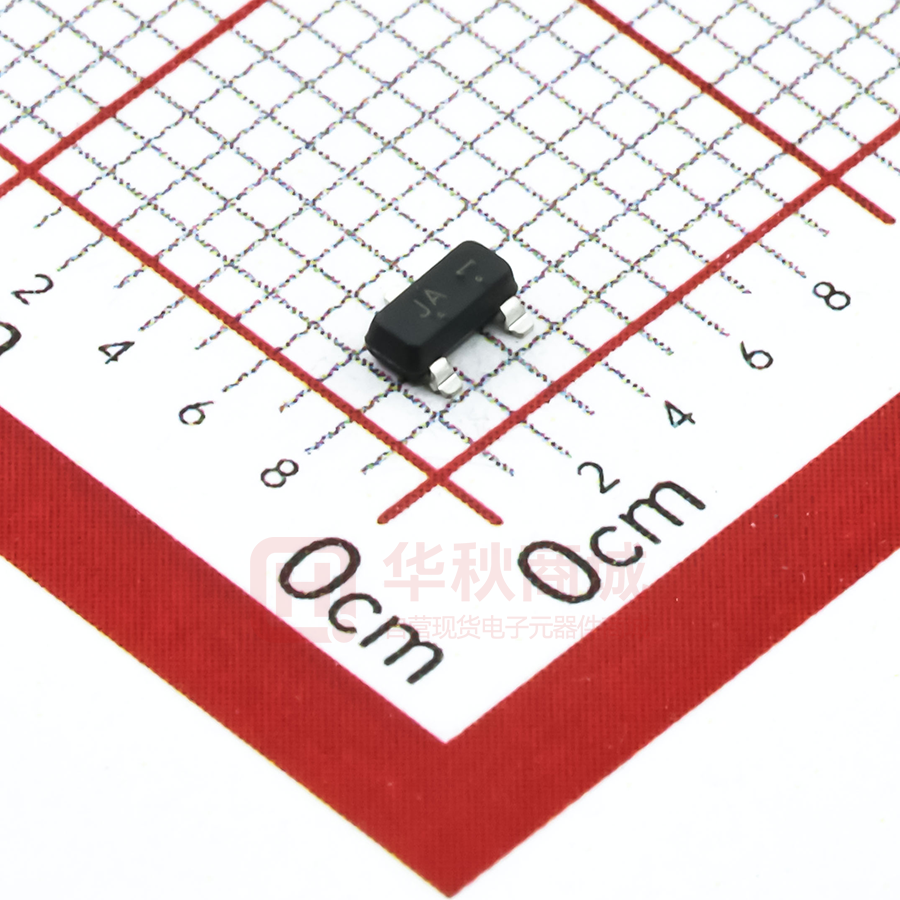

LBAV74LT1G
Featrues
• We declare that the material of product
3
compliance with RoHS requirements.
1
Ordering Information
2
Device
Marking
Shipping
LBAV74LT1G
JA
3000/Tape&Reel
LBAV74LT3G
JA
10000/Tape&Reel
SOT–23
1
ANODE
3
CATHODE
2
ANODE
DEVICE MARKING
LBAV74LT1G = JA
MAXIMUM RATINGS (EACH DIODE)
Rating
Reverse Voltage
Forward Current
Symbol
VR
IF
Value
50
200
Unit
Vdc
mAdc
Peak Forward Surge Current
I FM(surge)
500
mAdc
Symbol
Max
Unit
PD
225
mW
R θJA
PD
1.8
556
300
mW/°C
°C/W
mW
R θJA
T J , T stg
2.4
417
–55 to +150
mW/°C
°C/W
°C
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR– 5 Board (1)
T A = 25°C
Derate above 25°C
Thermal Resistance, Junction to Ambient
Total Device Dissipation
Alumina Substrate, (2) T A = 25°C
Derate above 25°C
Thermal Resistance, Junction to Ambient
Junction and Storage Temperature
ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) ( EACH DIODE )
Characteristic
Symbol
Min
Max
Unit
50
—
Vdc
—
—
100
0.1
—
2.0
—
1.0
—
4.0
OFF CHARACTERISTICS
Reverse Breakdown Voltage
V (BR)
(I (BR) = 5.0 µAdc)
Reverse Voltage Leakage Current
IR
(V R = 50 Vdc, T J = 125°C)
(V R = 50Vdc)
Diode Capacitance
CD
(V R = 0, f = 1.0 MHz)
Forward Voltage
VF
(I F = 100 mAdc)
Reverse Recovery Time
t rr
(I F=IR=10mAdc, IR(REC)=1.0mAdc, measured at IR= 1.0 mA, RL=100Ω)
1. FR–5 = 1.0 x 0.75 x 0.062 in.
2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina.
µAdc
pF
Vdc
ns
Rev.O 1/3
LESHAN RADIO COMPANY, LTD.
LBAV74LT1G
Curves Applicable to Each Anode
10
I R , REVERSE CURRENT (µA)
T A = 150°C
T A = 85°C
10
T A = – 40°C
1.0
T A = 25°C
0.1
T A = 125°C
1.0
T A = 85°C
0.1
T A = 55°C
0.01
T A = 25°C
0.001
0.2
0.4
0.6
0.8
1.0
1.2
0
V F , FORWARD VOLTAGE (VOLTS)
10
20
30
40
50
V R , REVERSE VOLTAGE (VOLTS)
Figure 1. Forward Voltage
Figure 3. Leakage Current
1.0
C T TOTAL CAPACITANCE (pF)
I F , FORWARD CURRENT (mA)
100
0.9
0.8
0.7
0.6
0
2
4
6
8
V R , REVERSE VOLTAGE (VOLTS)
Figure 3. Capacitance
Rev.O 2/3
LESHAN RADIO COMPANY, LTD.
LBAV74LT1G
SOT-23
NOTES:
A
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
L
3
1
V
2
B S
DIM
G
A
B
C
D
G
H
J
K
L
S
V
C
D
H
K
J
INCHES
MIN
MAX
0.1102
0.1197
0.0472
0.0551
0.0350
0.0440
0.0150
0.0200
0.0701
0.0807
0.0005
0.0040
0.0034
0.0070
0.0140
0.0285
0.0350
0.0401
0.0830
0.1039
0.0177
0.0236
MILLIMETERS
MIN
MAX
2.80
3.04
1.20
1.40
0.89
1.11
0.37
0.50
1.78
2.04
0.013
0.100
0.085
0.177
0.35
0.69
0.89
1.02
2.10
2.64
0.45
0.60
PIN 1. ANODE
2. NO CONECTION
3. CATHODE
0.037
0.95
0.037
0.95
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
Rev.O 3/3
