LBAV99WT1G

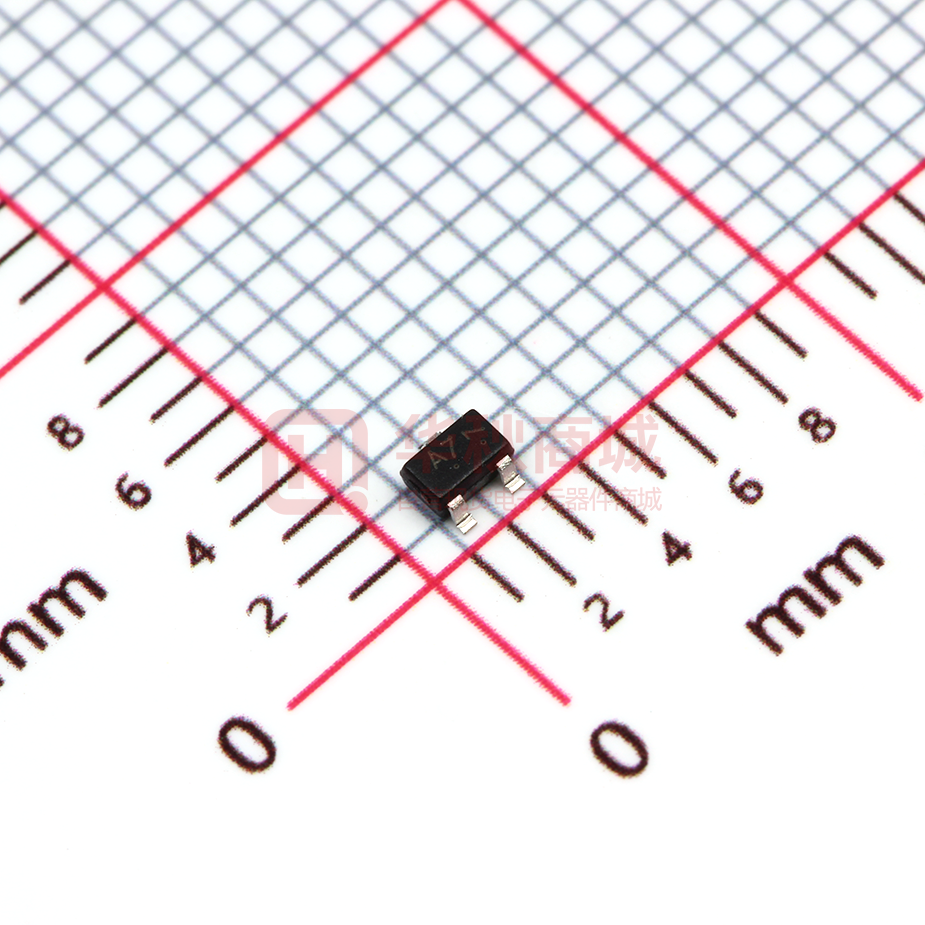

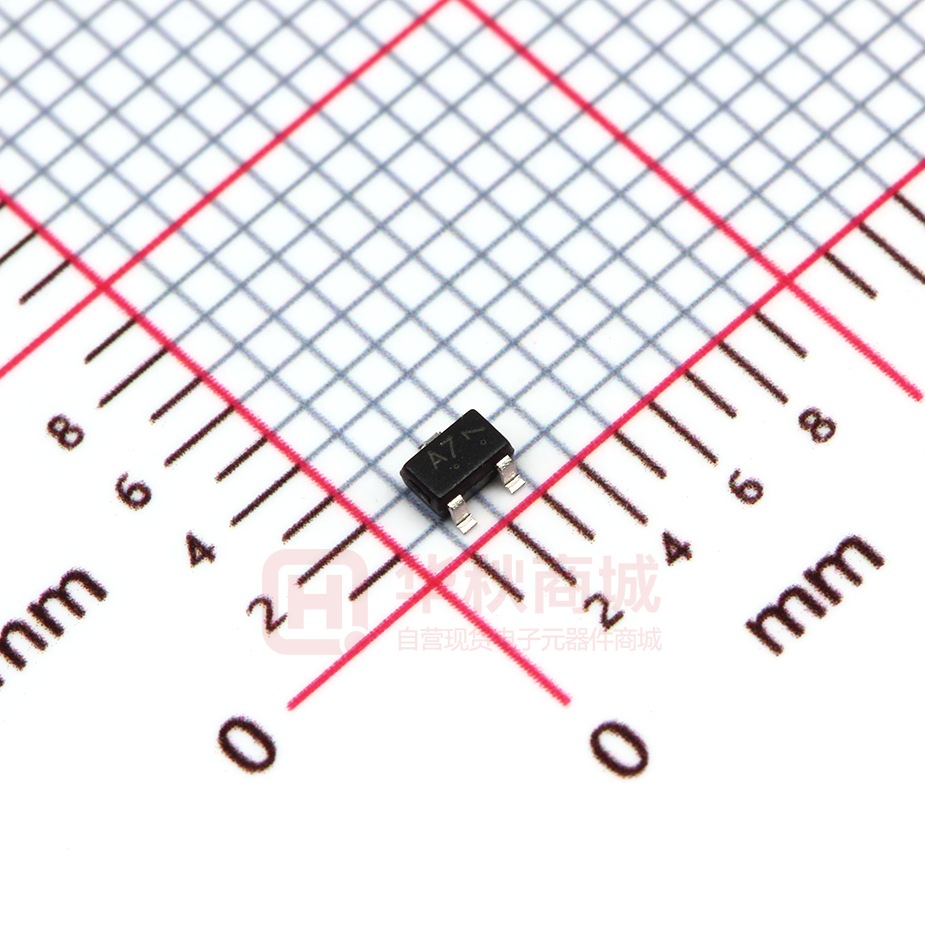

LESHAN RADIO COMPANY, LTD. Dual Series LBAV99WT1G S-LBAV99WT1G LBAV99RWT1G S-LBAV99RWT1G Switching Diodes Features z z 3 We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. 1 2 LBAV99WT1G SOT-323 (SC-70) z The LBAV99WT1G is a smaller package, equivalent to the LB AV99LT1G. Suggested Applications z z LBAV99RWT1G SOT-323 (SC-70) ESD Protection Polarity Reversal Protection CATHODE 2 ANODE z Data Line Protection z Inductive Load Protection z Steering Logic 1 3 CATHODE/ANODE LBAV99WT1G CATHODE ORDERING INFORMATION Device ANODE 2 1 Package Shipping LBAV99WT1G SOT–323(SC–70) S-LBAV99WT1G LBAV99RWT1G SOT–323(SC–70) S-LBAV99RWT1G 3 3000/Tape & Reel CATHODE/ANODE LBAV99RWT1G 3000/Tape & Reel LBAV99WT3G SOT–323(SC–70) S-LBAV99WT3G LBAV99RWT3G SOT–323(SC–70) S-LBAV99RWT3G 10000/Tape & Reel 10000/Tape & Reel DEVICE MARKING LBAV99WT1G = A7; LBAV99RWT1G = F7 MAXIMUM RATINGS (Each Diode) Rating Reverse Voltag Forward Current Peak Forward Surge Current Repetitive Peak Reverse Voltage Average Rectified Forward Current (Note 1.) (averaged over any 20 ms period) Repetitive Peak Forward Current Non–Repetitive Peak Forward Current t = 1.0 µs t = 1.0 ms t = 1.0 S Symbol VR IF IFM(surge) VRRM IF(AV) IFRM IFSM Value Unit 70 215 500 70 715 Vdc mAdc mAdc V mA 450 mA A 2.0 1.0 0.5 1. FR–5 = 1.0 × 0.75 × 0.062 in. Rev.O 1/4 LESHAN RADIO COMPANY, LTD. LBAV99WT1G,S-LBAV99WT1G LBAV99RWT1G,S-LBAV99RWT1G 3 THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR–5 Board, (Note 1.) TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Total Device Dissipation Alumina Substrate, (Note 2.) TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Junction and Storage Temperature Symbol PD Max 200 Unit mW RθJA PD 1.6 625 300 mW/°C °C/W mW RθJA TJ,Tstg 2.4 417 –65 to +150 mW/°C °C/W °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (Each Diode) Characteristic Symbol Min Max Unit V(BR) IR 70 –– –– –– –– –– 2.5 30 50 1.5 Vdc µAdc VF –– –– –– –– 715 855 1000 1250 mVdc trr –– 6.0 ns VFR –– 1.75 V OFF CHARACTERISTICS Reverse Breakdown Voltage Reverse Voltage Leakage Current Diode Capacitance (VR = 0, f = 1.0 MHz) Forward Voltage (I(BR) = 100 µA) (VR = 70 Vdc) (VR = 25 Vdc, TJ = 150°C) (VR = 70 Vdc, TJ = 150°C) CD (IF = 1.0 mAdc) (IF = 10 mAdc) (IF = 50 mAdc) (IF = 150 mAdc) Reverse Recovery Time RL = 100 Ω (IF=IR=10 mAdc, iR(REC)=1.0mAdc) (Figure 1) Forward Recovery Voltage (IF = 10 mA, t r = 20 ns) pF 1. FR–5 = 1.0 × 0.75 × 0.062 in. 2. Alumina = 0.4 × 0.3 × 0.024 in. 99.5% alumina. +10 V 2.0 k 820 Ω 100 µH 0.1 µF 50 Ω OUTPUT PULSE GENERATOR 0.1µF IF tr tp t IF t rr 10% 90% D.U.T. 50 Ω INPUT SAMPLING OSCILLOSCOPE V R INPUT SIGNAL t i R(REC) = 1.0 mA IR OUTPUT PULSE (I F = I R = 10 mA; MEASURED at i R(REC) = 1.0 mA) Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (I F ) of 10mA. Notes: 2. Input pulse is adjusted so I R(peak) is equal to 10mA. Notes: 3. t p » t rr Figure 1. Recovery Time Equivalent Test Circuit Rev.O 2/4 LESHAN RADIO COMPANY, LTD. LBAV99WT1G,S-LBAV99WT1G LBAV99RWT1G,S-LBAV99RWT1G 10 IR , REVERSE CURRENT (µA) 10 1.0 0.1 1.0 0.1 0.01 0.001 0.2 0.4 0.6 0.8 1.0 0 1.2 10 20 30 40 VF , FORWARD VOLTAGE (VOLTS) VR , REVERSE VOLTAGE (VOLTS) Figure 2. Forward Voltage Figure 3. Leakage Current 0.68 CD DIODE CAPACITANCE (pF) IF , FORWARD CURRENT (mA) 100 0.64 0.60 0.56 0.52 0 2 4 6 8 VR , REVERSE VOLTAGE (VOLTS) Figure 4. Capacitance Rev.O 3/4 50 LESHAN RADIO COMPANY, LTD. LBAV99WT1G,S-LBAV99WT1G LBAV99RWT1G,S-LBAV99RWT1G SC−70 (SOT−323) D e1 DIM A A1 A2 b c D E e e1 L HE 3 E HE 1 2 b e A 0.05 (0.002) MIN 0.80 0.00 0.30 0.10 1.80 1.15 1.20 2.00 MILLIMETERS NOM MAX 0.90 1.00 0.05 0.10 0.7 REF 0.35 0.40 0.18 0.25 2.10 2.20 1.24 1.35 1.30 1.40 0.65 BSC 0.425 REF 2.10 2.40 MIN 0.032 0.000 0.012 0.004 0.071 0.045 0.047 0.079 INCHES NOM 0.035 0.002 0.028 REF 0.014 0.007 0.083 0.049 0.051 0.026 BSC 0.017 REF 0.083 MAX 0.040 0.004 0.016 0.010 0.087 0.053 0.055 0.095 c A2 L A1 SOLDERING FOOTPRINT* 0.65 0.025 0.65 0.025 1.9 0.075 0.9 0.035 0.7 0.028 SCALE 10:1 mm
inches Rev.O 4/4
