LBZT52B5V1T1G

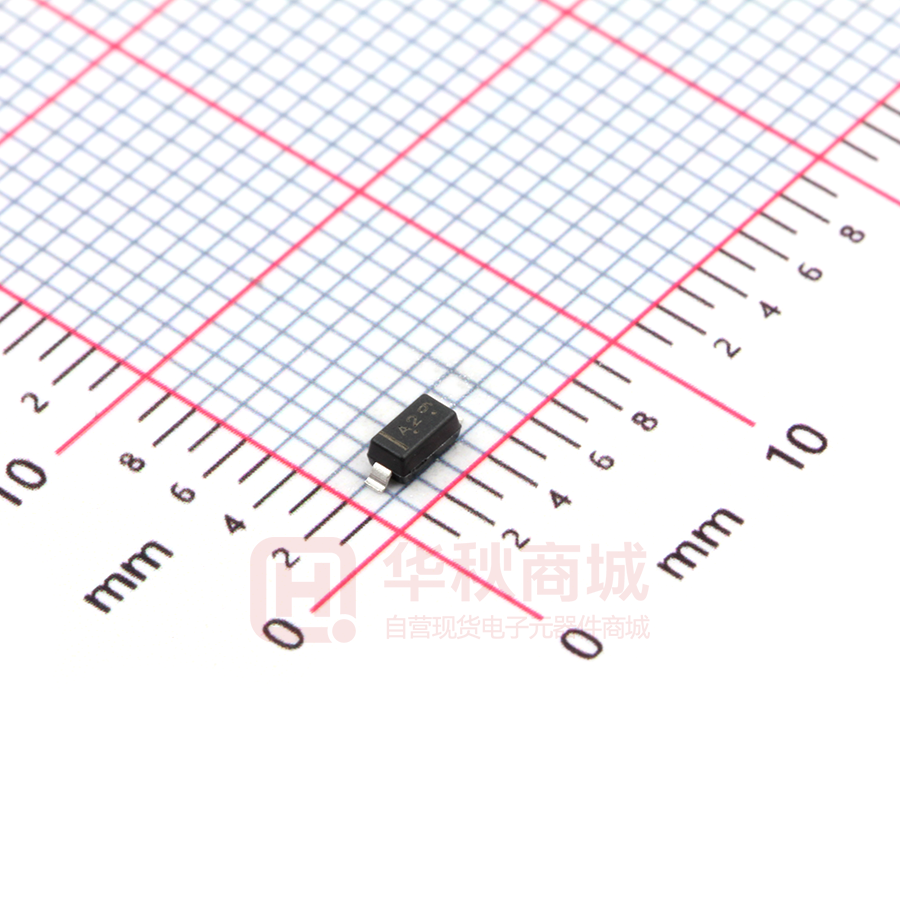

LBZT52B5V1T1G S-LBZT52B5V1T1G SURFACE MOUNT ZENER DIODE 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 SOD123 qualified and PPAP capable. ● 500mw power dissipation ● Ideal for surface mountted application 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LBZT52B5V1T1G LBZT52B5V1T3G A2 A2 3000/Tape&Reel 10000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Forward Voltage @ IF=10mA Symbol Limits VF 0.9 Unit V 4. THERMAL CHARACTERISTICS Parameter Total Power Dissipation on Symbol Unit PD Limits 500 RΘJA 305 ºC/W TJ,Tstg −55∼+150 ºC mW FR-5 Board(Note 1) Thermal Resistance, Junction to Ambient Air(Note 1) Junction and Storage temperature 1. Device mounted on ceramic PCB; 7.6mm×9.4mm×0.87mm with pad areas 25mm² 5. ELECTRICAL CHARACTERISTICS (Ta= 25°C) Characteristic Zener Voltage Symbol VZ (IZT=5mA) Operating Resistance (VR=1.5V) Max. 4.98 - 5.2 Unit V Ω - - 80 Ω ZZK (IZK=0.5mA) Reverse Current Typ. ZZT (IZT=5mA) Rising Operating Resistance Min. - - 500 μA IR - - 2 2. The Zener voltage (Vz ) is measured 40ms after power is supplied. 3. The operating resistances (ZZT,ZZK) are measured by superimposing a minute alternating current on the regulated current (Iz). Leshan Radio Company, LTD. Rev.A Jun 2018 1/3 LBZT52B5V1T1G, S-LBZT52B5V1T1G SURFACE MOUNT ZENER DIODE 6.ELECTRICAL CHARACTERISTICS CURVES 1E+00 1.61E-02 1E-01 150℃ 150℃ 85℃ IZ,Zener Current(A) IF,Forward Current(A) 1.81E-02 25℃ 1E-02 -55℃ -55℃ 1.41E-02 1.21E-02 85℃ 25℃ 1.01E-02 8.10E-03 6.10E-03 1E-03 4.10E-03 2.10E-03 1.00E-04 1E-04 0.4 0.6 0.8 1 VF,Forward Voltage(V) 4.6 1.2 5.1 VZ,Zener Voltage(V) 5.6 IZ vs. VZ IF vs. VF 0.10% 80 CT,Capacitor(pF) 70 Temp.Coefficient Characteristics (%/℃) f=1MHz Ta=25℃ 60 50 40 30 0.08% 0.06% 0.04% 0.02% 0.00% 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 -0.02% -0.04% -0.06% 20 0 1 2 3 VR,Reverse Votlage(V) 4 IZ=5mA IZ=5mA -0.08% Zener Voltage :VZ (V) Zener Voltage- temp.coefficient characteristics Capacitance Leshan Radio Company, LTD. IZ=0.5mA Rev.A Jun 2018 2/3 LBZT52B5V1T1G, S-LBZT52B5V1T1G SURFACE MOUNT ZENER DIODE 7.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.94 NOM MAX MIN NOM MAX 1.17 1.35 0.037 0.046 0.053 A1 0.00 0.05 0.10 0.000 0.002 0.004 b 0.51 0.61 0.71 0.020 0.024 0.028 c --- --- 0.15 D 1.40 1.60 1.80 0.055 0.063 0.071 E HE 2.54 2.69 2.84 0.100 0.106 0.112 3.56 3.68 3.86 0.140 0.145 0.152 L 0.25 --- --- θ 0° --- 10° --- --- 0.006 0.010 --- --- 0° --- 10° 8.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Jun 2018 3/3
