LBZT52B7V5T1G

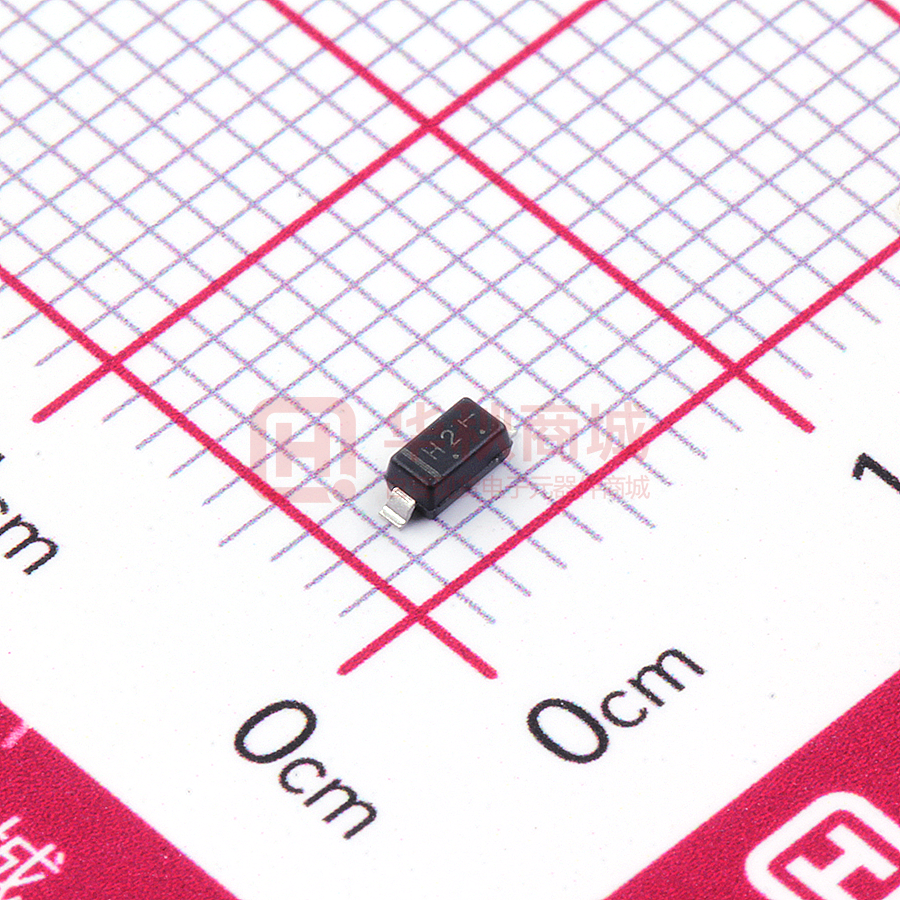

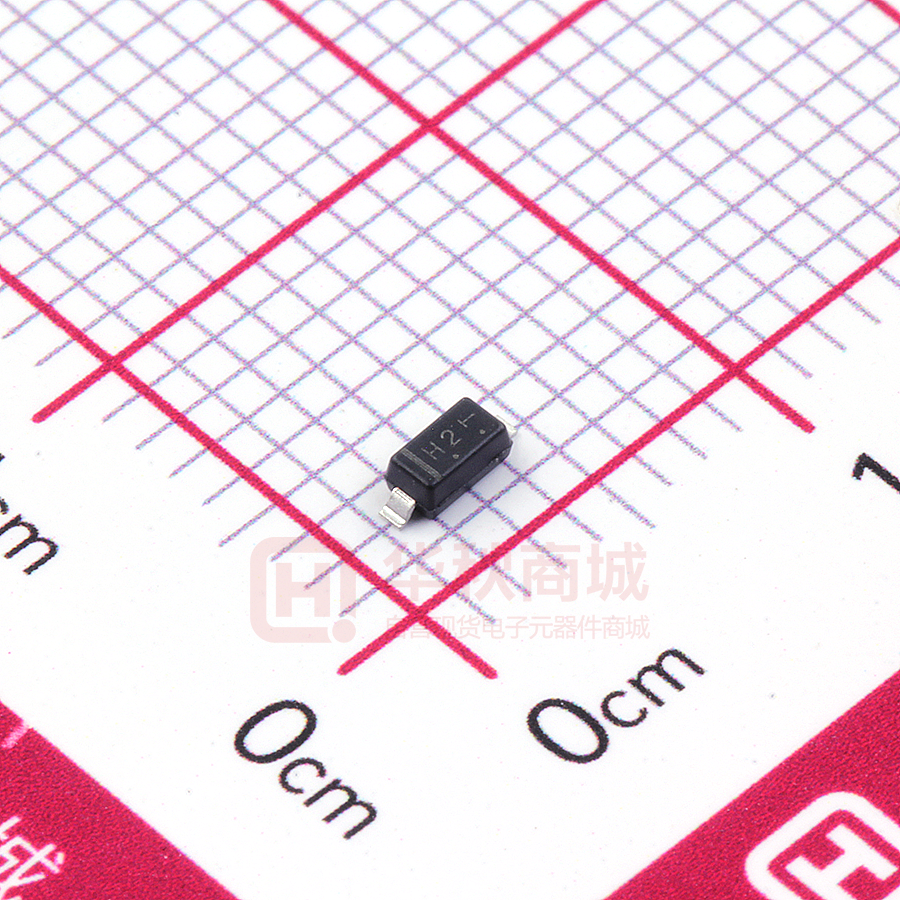

LBZT52B7V5T1G S-LBZT52B7V5T1G SURFACE MOUNT ZENER DIODE 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 SOD123 qualified and PPAP capable. ● 500mw power dissipation ● Ideal for surface mountted application 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LBZT52B7V5T1G H2 LBZT52B7V5T3G H2 3000/Tape&Reel 10000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Forward Voltage @ IF=10mA Symbol Limits Unit VF 0.9 V Symbol Limits Unit PD 500 mW RΘJA 305 ºC/W TJ,Tstg −55∼+150 ºC 4. THERMAL CHARACTERISTICS Parameter Total Power Dissipation on FR-5 Board(Note 1) Thermal Resistance, Junction to Ambient Air(Note 1) Junction and Storage temperature 1. Device mounted on ceramic PCB; 7.6mm×9.4mm×0.87mm with pad areas 25mm² 5. ELECTRICAL CHARACTERISTICS (Ta= 25°C) Characteristic Zener Voltage Symbol VZ (IZT=5mA) Operating Resistance (VR=4.0V) Leshan Radio Company, LTD. Max. 7.28 - 7.6 Unit V Ω - - 30 Ω ZZK - (IZK=0.5mA) Reverse Current Typ. ZZT (IZT=5mA) Rising Operating Resistance Min. - 60 μA IR - Rev.A Jun 2018 - 0.5 1/4 LBZT52B7V5T1G, S-LBZT52B7V5T1G SURFACE MOUNT ZENER DIODE 6.ELECTRICAL CHARACTERISTICS CURVES 1000 1 150℃ 85℃ IR,Reverse Current(μA) IF,Forward Current(mA) 100 25℃ 10 -55℃ 1 0.1 0.01 150℃ 0.001 85℃，25℃，-55℃ 0.0001 0.1 0 0.5 1 VF,Forward Voltage(V) 1.5 0 25 20 20 -55℃ C,Capacitor(pF) IZ,Zener Current(mA) 25 25℃ 85℃ 10 150℃ 15 10 5 5 0 0 7 7.5 8 VZ,Zener Voltage(V) 8.5 0.0 IZ vs.VZ Leshan Radio Company, LTD. 8 Reverse Characteristics Forward Characteristics 15 2 4 6 VR,Reverse Voltage(V) 1.0 2.0 3.0 4.0 VR,Reverse Voltage(V) 5.0 Capacitor Characteristics Rev.A Jun 2018 2/4 LBZT52B7V5T1G, S-LBZT52B7V5T1G SURFACE MOUNT ZENER DIODE 6.ELECTRICAL CHARACTERISTICS CURVES(Con.) Temp.Coefficient Characteristics (%/℃) 0.10% 0.08% 0.06% 0.04% 0.02% 0.00% 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 -0.02% IZ=0.5mA -0.04% IZ=5mA IZ=5mA -0.06% -0.08% Zener Voltage :VZ (V) Zener Voltage- temp.coefficient characteristics Leshan Radio Company, LTD. Rev.A Jun 2018 3/4 LBZT52B7V5T1G, S-LBZT52B7V5T1G SURFACE MOUNT ZENER DIODE 7.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.94 NOM MAX MIN NOM MAX 1.17 1.35 0.037 0.046 0.053 A1 0.00 0.05 0.10 0.000 0.002 0.004 b 0.51 0.61 0.71 0.020 0.024 0.028 c --- --- 0.15 D 1.40 1.60 1.80 0.055 0.063 0.071 E HE 2.54 2.69 2.84 0.100 0.106 0.112 3.56 3.68 3.86 0.140 0.145 0.152 L 0.25 --- --- 0.010 --- --- θ 0° --- 10° 0° --- 10° --- --- 0.006 8.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Jun 2018 4/4
