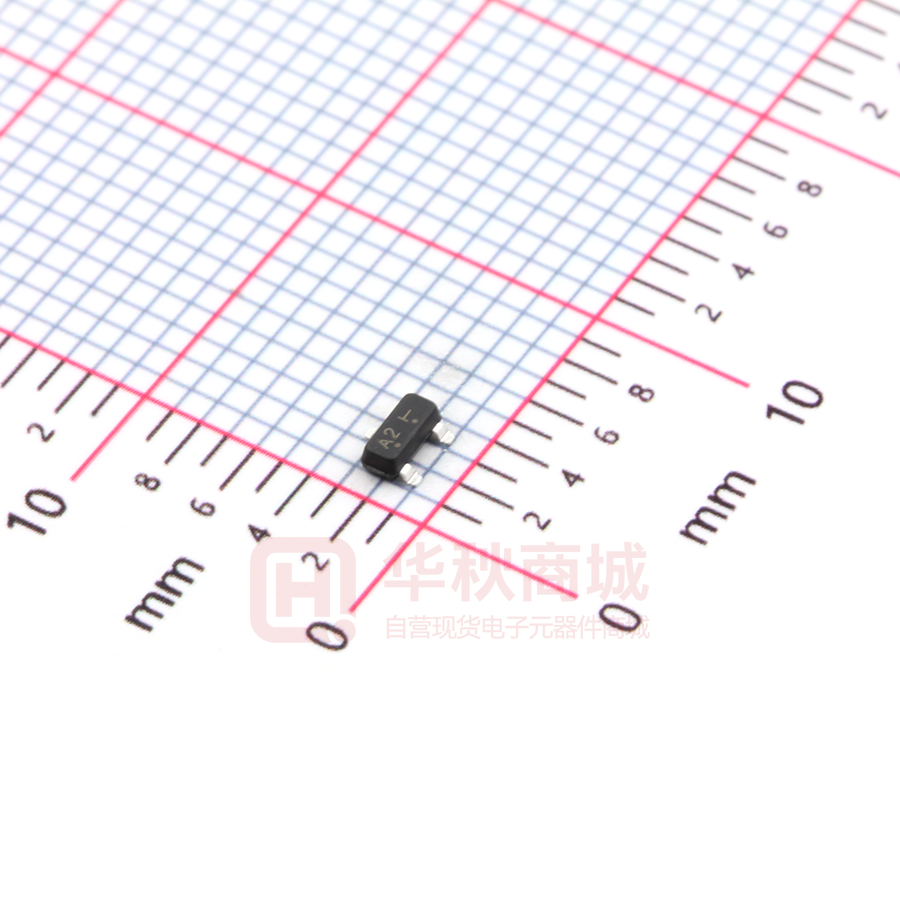

LBZX84B5V1LT1G

LESHAN RADIO COMPANY, LTD. Zener Voltage Regulators LBZX84B2V0LT1G SERIES 225 mW SOT-23 Surface Mount 3 FEATURES ƽNon-wire bonding structure improves 1 ƽHigh demand voltage range (3.6V-36V) 2 ƽThis is a Pb-Free device CONSTRUCTION SOT– 23 ƽSilicon epitaxial planar Pb-Free package is available ORDERING INFORMATION Device Package Shipping LBZX84B2V0LT1G Series SOT-23 3000/Tape&Reel LBZX84B2V0LT3G Series SOT-23 10000/Tape&Reel 3 CATHODE 1 ANODE *See specific marking table. ABSOLUTE MAXIMUM TATINGS (Ta=25°C) Parameter Power dissipation Symbol Limits Unit P 225 mW Junction temperature Tj +125 °C Storage temperature Tstg −55 to +125 °C Operating temperature Topr −55 to +125 °C DEVICE MARKING CODE Device Marking Device Marking Device Marking 02 LBZX84B5V6LT1G C2 LBZX84B16LT1G LBZX84B2V2LT1G 12 LBZX84B6V2LT1G E2 LBZX84B18LT1G 65 LBZX84B2V4LT1G 22 LBZX84B6V8LT1G F2 LBZX84B20LT1G 75 LBZX84B2V7LT1G 32 LBZX84B7V5LT1G H2 LBZX84B22LT1G 85 LBZX84B3V0LT1G 42 LBZX84B8V2LT1G J2 LBZX84B24LT1G 95 LBZX84B3V3LT1G 52 LBZX84B9V1LT1G L2 LBZX84B27LT1G A5 LBZX84B3V6LT1G 62 LBZX84B10LT1G 05 LBZX84B30LT1G C5 LBZX84B3V9LT1G 72 LBZX84B11LT1G 15 LBZX84B33LT1G E5 LBZX84B4V3LT1G 82 LBZX84B12LT1G 25 LBZX84B36LT1G F5 LBZX84B4V7LT1G 92 LBZX84B13LT1G 35 − − LBZX84B5V1LT1G A2 LBZX84B15LT1G 45 − − LBZX84B2V0LT1G 55 1/7 LESHAN RADIO COMPANY, LTD. LBZX84B2V0LT1G SERIES ELECTRICAL CHARACTERISTICS (Ta=25qC) Zener voltage Operating resistance Rising operating resistance Reverse current ZZ(Ω) Zzk(Ω) IR(µA) VZ(V) Device Max. VR (V) Min. Max. LBZX84B2V0LT1G 2.020 2.200 5 100 5 1000 0.5 120 0.5 LBZX84B2V2LT1G 2.220 2.410 5 100 5 1000 0.5 120 0.7 LBZX84B2V4LT1G 2.430 2.630 5 100 5 1000 0.5 100 1.0 LBZX84B2V7LT1G 2.690 2.910 5 110 5 1000 0.5 100 1.0 LBZX84B3V0LT1G 3.010 3.220 5 120 5 1000 0.5 50 1.0 LBZX84B3V3LT1G 3.320 3.530 5 120 5 1000 0.5 20 1.0 LBZX84B3V6LT1G 3.600 3.845 5 100 5 1000 1.0 10 1.0 LBZX84B3V9LT1G 3.890 4.160 5 100 5 1000 1.0 5 1.0 LBZX84B4V3LT1G 4.170 4.430 5 100 5 1000 1.0 5 1.0 LBZX84B4V7LT1G 4.550 4.750 5 100 5 800 0.5 2 1.0 LBZX84B5V1LT1G 4.980 5.200 5 80 5 500 0.5 2 1.5 LBZX84B5V6LT1G 5.490 5.730 5 60 5 200 0.5 1 2.5 Max. IZ (mA) IZ (mA) IZ (mA) Max. LBZX84B6V2LT1G 6.060 6.330 5 60 5 100 0.5 1 3.0 LBZX84B6V8LT1G 6.650 6.930 5 40 5 60 0.5 0.5 3.5 LBZX84B7V5LT1G 7.280 7.600 5 30 5 60 0.5 0.5 4.0 LBZX84B8V2LT1G 8.020 8.360 5 30 5 60 0.5 0.5 5.0 LBZX84B9V1LT1G 8.850 9.230 5 30 5 60 0.5 0.5 6.0 LBZX84B10LT1G 9.770 10.210 5 30 5 60 0.5 0.1 7.0 LBZX84B11LT1G 10.760 11.220 5 30 5 60 0.5 0.1 8.0 LBZX84B12LT1G 11.740 12.240 5 30 5 80 0.5 0.1 9.0 LBZX84B13LT1G 12.910 13.490 5 37 5 80 0.5 0.1 10.0 LBZX84B15LT1G 14.340 14.980 5 42 5 80 0.5 0.1 11.0 LBZX84B16LT1G 15.850 16.510 5 50 5 80 0.5 0.1 12.0 LBZX84B18LT1G 17.560 18.350 5 65 5 80 0.5 0.1 13.0 LBZX84B20LT1G 19.520 20.390 5 85 5 100 0.5 0.1 15.0 LBZX84B22LT1G 21.540 22.470 5 100 5 100 0.5 0.1 17.0 LBZX84B24LT1G 23.720 24.780 5 120 5 120 0.5 0.1 19.0 LBZX84B27LT1G 26.190 27.530 5 150 5 150 0.5 0.1 21.0 LBZX84B30LT1G 29.190 30.690 5 200 5 200 0.5 0.1 23.0 LBZX84B33LT1G 32.150 33.790 5 250 5 250 0.5 0.1 25.0 LBZX84B36LT1G 35.070 36.870 5 300 5 300 0.5 0.1 27.0 Notes) 1. The Zener voltage (Vz) is measured 40ms after power is supplied. 2. The operating resistances (Zz, Zzk) are measured by superimposing a minute alternating current on the regulated current (Iz). 2/7 LESHAN RADIO COMPANY, LTD. LBZX84B2V0LT1G SERIES ZENER CURRENT : I Z ( A) ELECTRICAL CHARACTERISTIC CURVES (Ta=25qC) POWER DISSIPATION : Pd (mW) 300 200 100 0 0 25 50 100 AMBIENT TEMPERATURE : Ta (°C) Fig.2 Derating curve 150 TEMP. COEFFICIENT CHARACTERISTICS (% / °C) Fig.1 Zener voltage characteristics 0.10 Iz=5mA 0.08 Iz=500µA 0.06 0.04 0.02 0.00 −0.02 2 10 20 30 ZENER VOLTAGE : Vz (V) −0.04 −0.06 −0.08 Fig.3 Zener voltage-temp. coefficient characteristics 3/7 LESHAN RADIO COMPANY, LTD. LBZX84B2V0LT1G SERIES SOT-23 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M,1982 2. CONTROLLING DIMENSION: INCH. A L 3 1 V 2 DIM B S G C D H K J MIN 0.1102 0.0472 0.0350 0.0150 0.0701 0.0005 0.0034 0.0140 0.0350 0.0830 0.0177 A B C D G H J K L S V INCHES MAX 0.1197 0.0551 0.0440 0.0200 0.0807 0.0040 0.0070 0.0285 0.0401 0.1039 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm 4/7 LESHAN RADIO COMPANY, LTD. Tape & Reel and Packaging Specifications for Small-Signal Transistors, FETs and Diodes Embossed Tape and Reel is used to facilitate automatic pick and place equipment feed requirements. The tape is used as the shipping container for various products and requires a minimum of handling. The antistatic/conductive tape provides a secure cavity for the product when sealed with the “peel–back” cover tape. • Two Reel Sizes Available (7"and 13",) • SOT–23, SC–70/SOT–323, • Used for Automatic Pick and Place Feed Systems SC–89, SC–88/SOT–363, SC–88A/SOT–353, • Minimizes Product Handling SOD–323, SOD-523 in 8 mm Tape • EIA 481, –1, –2 Use the standard device title and add the required suffix as listed in the option table below (Table 1). Note that the individual reels have a finite number of devices depending on the type of product contained in the tape. Also note the minimum lot size is one full reel for each line item, and orders are required to be in increments of the single reel quantity. SOD-323 SC-59, SC-70, SC-75,SOT-23 8 mm 8 mm SC-88, SOT-363 T1 Orientation SC-88A, SOT-353 T1 Orientation 8 mm 8 mm Direction of Feed Typical Reel Orientations Table 1. EMBOSSED TAPE AND REEL ORDERING INFORMATION Tape Width (mm) Package SOT–23 8 Pitch mm 4 8 8 SC–70/SOT–323 4 8 8 4 Reel Size mm(inch) Devices Per Reel and Minimum Device Suffix 178 Order Quantity (7) 3,000 T1 330 (13) 10,000 T3 178 (7) 3,000 T1 330 (13) 10,000 T3 178 (7) 3,000 T1 330 (13) 10,000 T3 178 (7) 3,000 T1 330 (13) 10,000 T3 178 (7) 3,000 T1 330 (13) 10,000 T3 178 (7) 3,000 T1 330 (13) 10,000 T3 178 (7) 3,000 T1 330 (13) 10,000 T3 SC–89 8 SC–88/SOT-363 8 4 8 8 SC–88A/SOT-353 SOD-323 4 8 8 4 8 8 4 SOD-523 8 5/7 LESHAN RADIO COMPANY, LTD. EMBOSSED TAPE AND REEL DATA FOR DISCRETES CARRIER TAPE SPECIFICATIONS P0 K D t P2 10 Pitches Cumulative Tolerance on Tape ± 0.2mm( ± 0.008’’ ) E Top Cover Tape B1 A0 F See Note 1 P Center Lines of Cavity Embossment For Machine Reference Only Including Draft and RADII Concentric Around B0 10 o W B0 K0 D1 For Components 2.0mm x 1.2mm and Larger User Direction of Feed R Min Bar Code Label Tape and Components Shall Pass Around Radius “R” Embossed Carrier Bending Radius Without Damage 100 mm (3.937 ’’) Maximum Component Rotation 1 mm Max Typical Component Cavity Center Line Typical Component Center Line *Top Cover Tape Thickness(t 1 ) 0.10mm (0.004’’ )Max. Embossment Tape 1 mm(.039’’ ) Max 250 mm (9.843’’) Camber (Top View) Allowable Camber To Be 1 mm/100 mm Nonaccumulative Over 250 mm DIMENSIONS Tape Size B1 Max 4.55mm (.179’’) 8.2mm 12mm (.323’’) 12.1mm 16mm (.476’’) 20.1mm 24mm (.791’’) 8mm D 1.5+0.1mm - 0.0 (.059+.004’’ - 0.0) D1 E 1.0Min 1.75 ± 0.1mm (.039’’) (.069±.004) 1.5mmMin (.060’’) F 3.5 ± 0.05mm (.138±.002’’) 5.5 ± 0.05mm (.217 ± .002’’) 7.5 ± 0.10mm (.295 ± .004’’) 11.5 ± 0.1mm (.453 ± .004’’) K P0 2.4mm Max 4.0 ± 0.1mm (.094’’) (.157 ± .004’’) 6.4mm Max (.252’’) 7.9mm Max (.311’’) 11.9mmMax (.468’’) P2 RMin TMax WMax 2.0 ± 0.1mm (.079 ± .002’’) 25mm 0.6mm (.98’’) (.024’’) 30mm (1.18’’) 8.3mm (.327’’) 12 ± .30mm (.470 ± .012’’) 16.3mm (.642’’) 24.3mm (.957’’) Metric dimensions govern - English are in parentheses for reference only. NOTE 1: A 0 , B 0 , and K 0 are determined by component size. The clearance between the components and the cavity must be within .05 mm min. to.50 mm max., NOTE 2: the component cannot rotate more than 10 o within the determined cavity. NOTE 3: If B1 exceeds 4.2 mm (.165”) for 8 mm embossed tape, the tape may not feed through all tape feeders. 6/7 LESHAN RADIO COMPANY, LTD. EMBOSSED TAPE AND REEL DATA FOR DISCRETES T Max Outside Dimension Measured at Edge 13.0mm ± 0.5mm 1.5mm Min (.512 ±.002’’) (.06’’) A 50mm Min (1.969’’) 20.2mm Min (.795’’) Full Radius G Inside Dimension Measured Near Hub Size 8 mm 12mm 16mm 24 mm A Max G 330mm (12.992’’) 330mm (12.992’’) 360mm (14.173’’) 360mm (14.173’’) 8.4mm+1.5mm, -0.0 (.33’’+.059’’, -0.00) 12.4mm+2.0mm, -0.0 (.49 ’’+ .079’’, -0.00) 16.4mm+2.0mm, -0.0 (.646’’+.078’’, -0.00) 24.4mm+2.0mm, -0.0 (.961’’+.070’’, -0.00) T Max 14.4mm (.56’’) 18.4mm (.72’’) 22.4mm (.882’’) 30.4mm (1.197’’) Reel Dimensions Metric Dimensions Govern –– English are in parentheses for reference only Storage Conditions Temperature: 5 to 40 Deg.C (20 to 30 Deg. C is preferred) Humidity: 30 to 80 RH (40 to 60 is preferred ) Recommended Period: One year after manufacturing (This recommended period is for the soldering condition only. The characteristics and reliabilities of the products are not restricted to this limitation) 7/7
