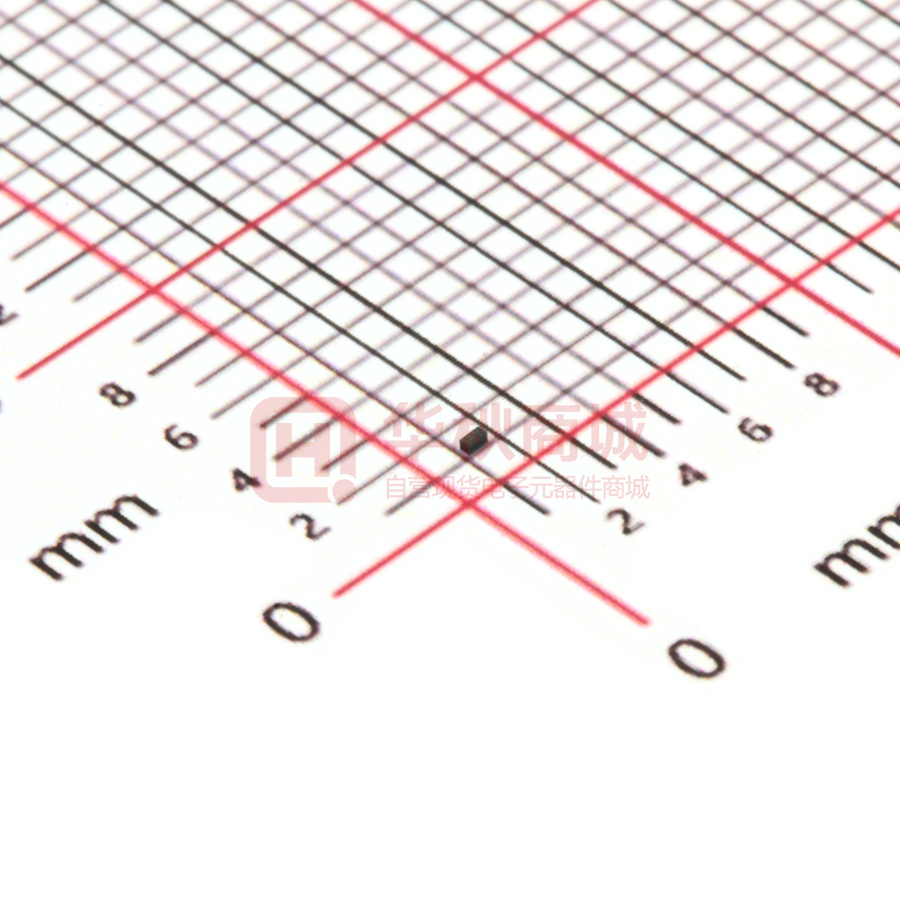

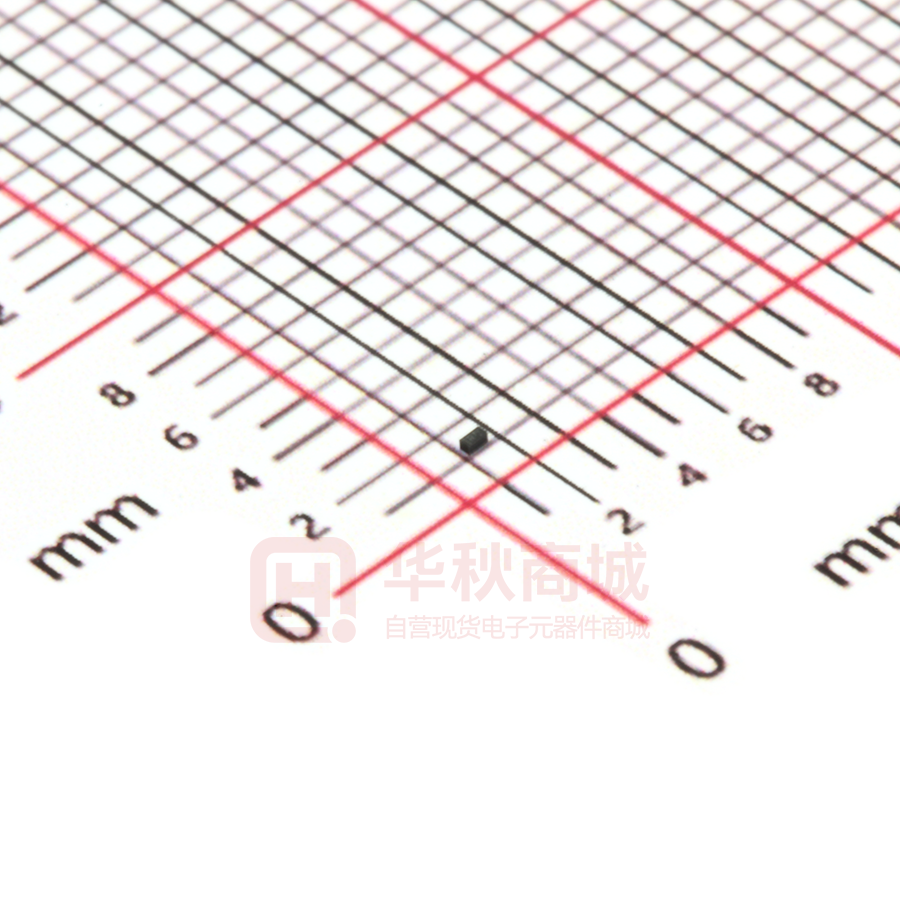

LDSR01S30ST5G

LDSR01S30ST5G S-LDSR01S30ST5G Schottky Barrier Diode 1 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. S- prefix for automotive and other applications requiring 2 unique site and control change requirements; AEC-Q101 DFN0603-DL qualified and PPAP capable. ● Extremely small surface mounting type.(DFN0603) ● Low IR. ● High reliability. 1 cathode 2. APPLICATIONS ● Low current rectification R X ● 2 anode R=Device Code X=Month Code 3. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LDSR01S30ST5G R 15000/Tape&Reel 4. MAXIMUM RATINGS(Ta = 25ºC) Parameter DC Reverse Voltage Mean Rectifying Current Peak Forward Surge Current Symbol Limits Unit VR 30 V IO 100 mA IFSM 2 A 5. THERMAL CHARACTERISTICS Parameter Total Device Dissipation, Symbol Limits Unit FR−5 Board (Note 1) @ TA = 25ºC 200 mW Derate above 25ºC 1.58 mW/ºC RΘJA RΘJC 500 250 ºC/W ºC/W TJ ºC ºC ºC PD Thermal Resistance, Junction–to–Ambient(Note 1) Junction–to–Case Junction Temperature Storage Temperature Range Tstg 125 −40∼+150 Operating Temperature Range Top −40∼+125 1. FR–5 = 1.0×0.75×0.062 in. Leshan Radio Company, LTD. Rev.A Apr. 2019 1/4 LDSR01S30ST5G, S-LDSR01S30ST5G Schottky Barrier Diode 6. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Min. Typ. Max. (VR = 10V) - - 0.35 (VR = 30V) - - 0.7 Reverse Voltage Leakage Current Diode Capacitance (VR = 0V , f = 1.0 MHz) Forward Voltage Symbol IR CT pF - 8.2 - VF V (IF = 100 mA) - - 0.62 (IF = 10 mA) - - 0.5 Leshan Radio Company, LTD. Rev.A Apr. 2019 Unit μA 2/4 LDSR01S30ST5G, S-LDSR01S30ST5G Schottky Barrier Diode 7.ELECTRICAL CHARACTERISTICS CURVES 1.00E+00 1.0E-03 125℃ IR,Reverse Current(A) 75℃ IF,Fowrad Current(A) 125℃ 1.0E-04 1.00E-01 1.00E-02 1.00E-03 1.00E-04 25℃ 1.0E-05 75℃ 1.0E-06 25℃ 1.0E-07 1.0E-08 -25℃ 1.00E-05 -25℃ 1.0E-09 1.00E-06 1.0E-10 0 0.1 0.2 0.3 0.4 0.5 VF,Forward Voltage(V) 0.6 0.7 Forward Characteristics 0 10 20 VR,Reverse Voltage(V) 30 Reverse Characteristics Ct,Capacitor(pF) 100 10 1 0 5 10 15 VR,Reverse Voltage(V) 20 Capacitor Characteristics Leshan Radio Company, LTD. Rev.A Apr. 2019 3/4 LDSR01S30ST5G, S-LDSR01S30ST5G Schottky Barrier Diode 8.OUTLINE AND DIMENSIONS DFN0603-DL Dim Min Typ. Max D 0.58 0.61 0.64 E 0.28 0.31 0.34 e 0.34 L 0.20 0.23 0.26 b 0.16 0.19 0.22 0.28 0.31 A 0.25 k 0.12 0.15 0.18 All Dimensions in mm 9.SOLDERING FOOTPRINT DFN0603-DL DIM (mm) X 0.23 X1 0.61 Y 0.30 Leshan Radio Company, LTD. Rev.A Apr. 2019 4/4
