LDTC114EET1G
S-LDTC114EET1G
Bias Resistor Transistor
NPN Silicon Surface Mount Transistor
with Monolithic Bias Resistor Network
1. FEATURES
●
Simplifies circuit design
●
Reduces board space and component count
●
We declare that the material of product compliance with
RoHS requirements and Halogen Free.
●

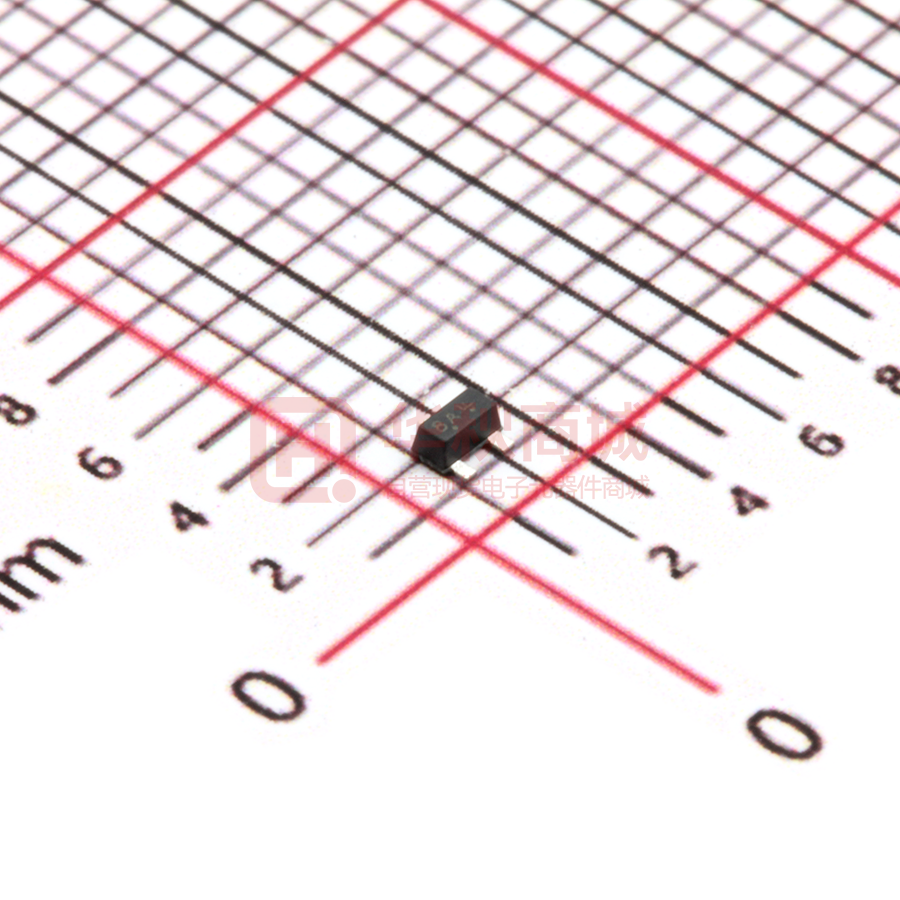

SC89
S- prefix for automotive and other applications requiring
unique site and control change requirements; AEC-Q101
3 COLLECTOR
qualified and PPAP capable.
2. DEVICE MARKING AND RESISTOR VALUES
R1(K) R2(K)
1 BASE
R1
Shipping
Device
Marking
LDTC114EET1G
8A
10
10
3000/Tape&Reel
LDTC114EET3G
8A
10
10
10000/Tape&Reel
R2
2 EMITTER
3. MAXIMUM RATINGS(Ta = 25ºC)
Symbol
Limits
Unit
Collector–Emitter Voltage
Parameter
VCEO
50
Vdc
Collector–Base Voltage
VCBO
50
Vdc
IC
100
mAdc
Symbol
Limits
Unit
Collector Current — Continuous
4. THERMAL CHARACTERISTICS
Parameter
Total Device Dissipation,
PD
FR−5 Board (Note 1) @ TA = 25ºC
200
mW
Derate above 25ºC
1.6
mW/ºC
600
ºC/W
Thermal Resistance,
RΘJA
Junction–to–Ambient(Note 1)
Junction and Storage temperature
TJ,Tstg
−55∼+150 ºC
1. FR–5 @ Minimum Pad.
Leshan Radio Company, LTD.
Rev.O Mar 2016
1/4
LDTC114EET1G, S-LDTC114EET1G
Bias Resistor Transistor
5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC)
OFF CHARACTERISTICS
Characteristic
Collector–Emitter Breakdown Voltage
(IC = 2.0 mAdc, IB = 0)
Collector–Base Breakdown Voltage
(IC = 10 μAdc, IE = 0)
Collector-Base Cutoff Current
(VCB = 50 V, IE = 0)
Collector-Emitter Cutoff Current
(VCE = 50 V, IB = 0)
Emitter-Base Cutoff Current
(VEB = 6.0 V, IC = 0)
Symbol
VBR(CEO)
VBR(CBO)
ICBO
ICEO
IEBO
Min.
Typ.
Max.
50
-
-
Unit
V
V
50
-
nA
-
-
100
nA
-
-
500
mA
-
-
0.5
35
60
-
-
-
0.25
ON CHARACTERISTICS (Note 2.)
DC Current Gain
HFE
(IC = 5.0 mAdc, VCE = 10 Vdc)
Collector–Emitter Saturation Voltage
VCE(sat)
(IC = 10 mAdc, IB = 0.3 mAdc)
Output Voltage (on)
VOL
(VCC = 5.0 V, VB = 2.5 V, RL =1.0KΩ)
Output Voltage (on)
V
V
-
-
0.2
4.9
-
-
VOH
(VCC = 5.0 V, VB = 0.5 V, RL =1.0KΩ)
V
Input Resistor
R1
7
10
13
Resistor Ratio
R1/R2
0.8
1
1.2
KΩ
2. Pulse Test: Pulse Width < 300 μs, Duty Cycle < 2.0%
Leshan Radio Company, LTD.
Rev.O Mar 2016
2/4
LDTC114EET1G, S-LDTC114EET1G
Bias Resistor Transistor
6.ELECTRICAL CHARACTERISTICS CURVES
300
1
VCE=10V
150℃
250
150℃
85℃
HFE,DC Current Gain
VCE(sat),Collector-Emitter Voltage(V)
IC/IB=10
0.1
25℃
-55℃
85℃
200
25℃
150
-55℃
100
50
0.01
0
0
20
40
60
IC,Collector Current(mA)
80
0.1
1
10
IC,Collector Current(mA)
100
DC Current Gain
VCE(sat) vs. IC
16
100
Vo=0.2 V
Vo=5V
10
Vin,Input Voltage(V)
IC,Collector Current(mA)
14
150℃
1
85℃
12
10
8
6
25℃
0.1
-55℃,25℃,85℃,150℃
4
-55℃
2
0.01
0
0
2
4
6
8
Vin,Input Voltage(V)
1
10
IC,Collector Current(mA)
100
Vin vs. IC
IC vs. Vin
Leshan Radio Company, LTD.
0.1
Rev.O Mar 2016
3/4
LDTC114EET1G, S-LDTC114EET1G
Bias Resistor Transistor
7.OUTLINE AND DIMENSIONS
Notes:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD
FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM
THICKNESS OF BASE MATERIAL.
4. DIMENSIONS A AND B DO NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS.
MILLIMETERS
INCHES
DIM MIN
A 1.50
NOM
MAX
MIN
NOM
MAX
1.60
1.70
0.059 0.063 0.067
B
0.75
0.85
0.95
0.030 0.034 0.040
C
0.60
0.70
0.80
0.024 0.028 0.031
D
0.23
0.28
0.33
0.009 0.011 0.013
G
0.50BSC
0.020BSC
H
0.53REF
0.021REF
J
0.10
0.15
0.20
0.004 0.006 0.008
K
0.30
0.40
0.50
0.012 0.016
L
1.10REF
0.02
0.043REF
M
---
---
10°
---
---
10°
N
---
---
10°
---
---
10°
S
1.50
1.60
1.70
0.059 0.063 0.067
8.SOLDERING FOOTPRINT
Leshan Radio Company, LTD.
Rev.O Mar 2016
4/4
