LESD11D5.0CT5G

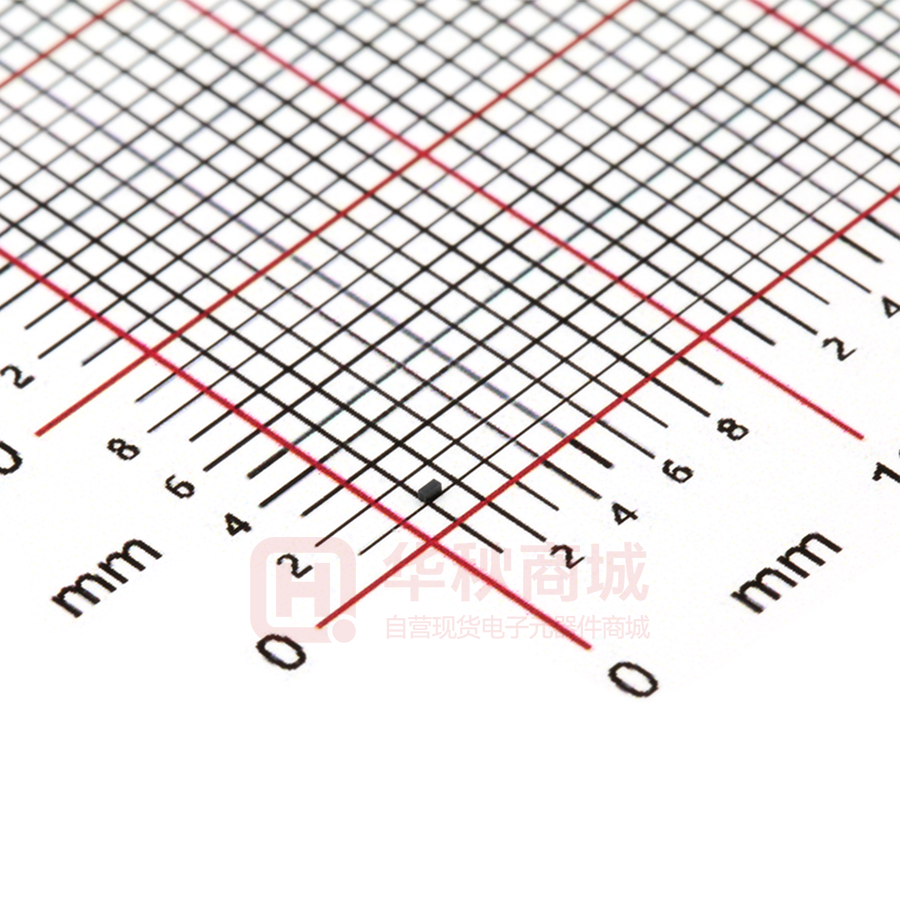

LESHAN RADIO COMPANY, LTD. LESD11D5.0CT5G ESD PROTECTION DIODE Discription The LESD11D5.0CT5G is designed to protect LESD11D5.0CT5G voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, digital cameras and many other portable applications where board space is at a premium. Applications l l l l DFN0603-DL Cellular phones audio Digital cameras Portable applications 1 2 Mobile telephone Features l l l l l l l l A Small Body Outline Dimensions: 0.61 mm x 0.31 mm Low Body Height: 0.28 mm Low Leakage Response Time is Typically < 1 ns ESD Rating of class 3 per Human Body Model IEC61000−4−2 Level 4 ESD Protection These are Pb−Free Devices We declare that the material of product compliance with RoHS requirements and Halogen Free. M PIN 1 A = Specific Device Code M = Month Code Ordering information Device LESD11D5.0CT5G Marking A Shipping 15000/Tape&Reel MAXIMUM RATINGS Rating IEC 61000-4-2 (ESD) Symbol discharge Air Contact discharge Value Unit ±25 ±20 kV kV Total Power Dissipation on FR-5 Board (Note 1) @ TA=25℃ PD 200 mW Junction and Storage Temperature Range TJ,TSTG -55 to 150 ℃ Lead Solder Temperature – Maximum (10 Second Duration) TL 260 ℃ Stresses exceeding Maximum Ratings may damage the device. Maximum Rating are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR-5 = 1.0*0.75*0.62 in. Jun. 2020 Rev.A 1/4 LESHAN RADIO COMPANY, LTD. LESD11D5.0CT5G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Parameter Symbol I IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT Ppk C IPP Working Peak Reverse Voltage IT VC VBR VRWM IR Maximum Reverse Leakage Current @ VRWM IR VRWM VBR VC IT Breakdown Voltage @ IT V Test Current Peak Power Dissipation IPP Capacitance @ VR = 0 and f = 1.0 MHz Bi−Directional TVS ELECTRICAL CHARACTERISTICS VRWM (V) IR (μA) @ VRWM VBR (V) @ IT (Note 1) Max Max Min Max 5.0 1.0 5.6. 8.5 Device LESD11D5.0CT5G IT （mA） 1.0 IPP (A) VC (V) @ Max IPP PPK (W) (8*20 μs) C (pF) Max Max Max Min Typ Max 5.5 12.5 69 8 11 14 Other voltage available upon request. 2. VBR is measured with a pulse test current IT at an ambient temperature of 25℃ 3. Surge current waveform per Figure 3. Fig1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000-4-2 Jun. 2020 Fig2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000-4-2 Rev.A 2/4 LESHAN RADIO COMPANY, LTD. LESD11D5.0CT5G Fig3. Pulse Waveform Jun. 2020 Rev.A 3/4 LESHAN RADIO COMPANY, LTD. LESD11D5.0CT5G OUTLINE AND DIMENSIONS DFN0603-DL Dim Min Typ. Max D 0.58 0.61 0.64 E 0.28 0.31 0.34 e 0.34 L 0.20 0.23 0.26 b 0.16 0.19 0.22 0.28 0.31 A 0.25 k 0.12 0.15 0.18 All Dimensions in mm SOLDERING FOOTPRINT DFN0603-DL DIM (mm) X 0.23 X1 0.61 Y 0.30 Jun. 2020 Rev.A 4/4 LESHAN RADIO COMPANY, LTD. DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
