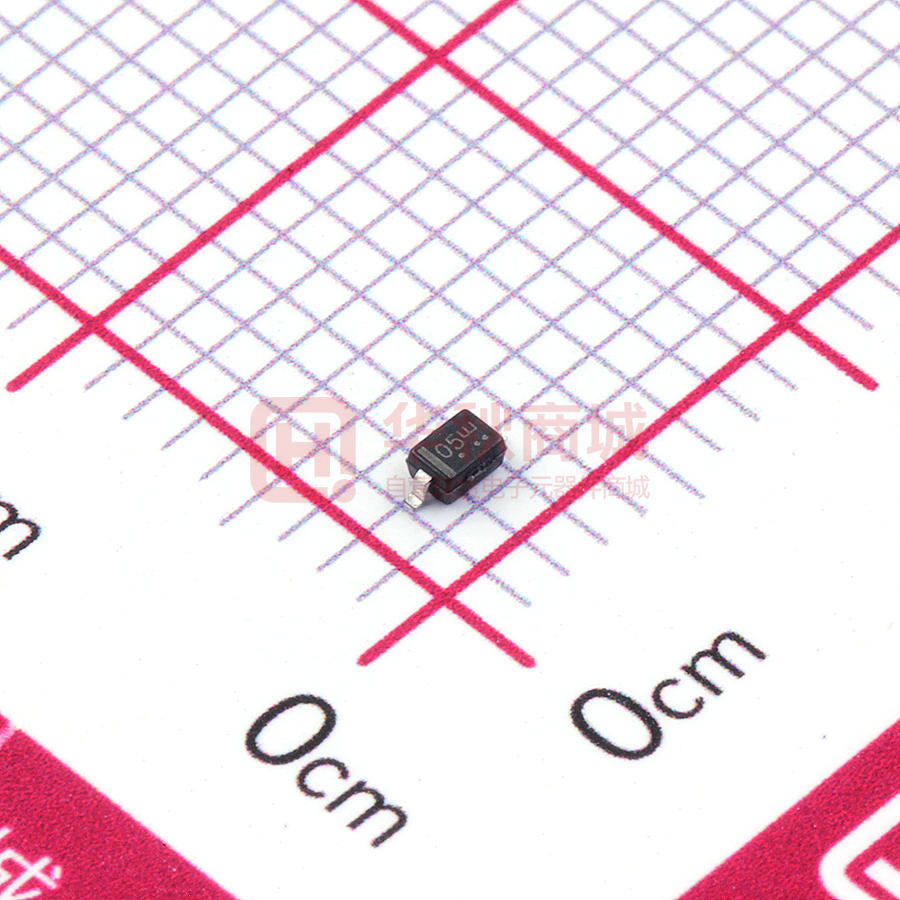

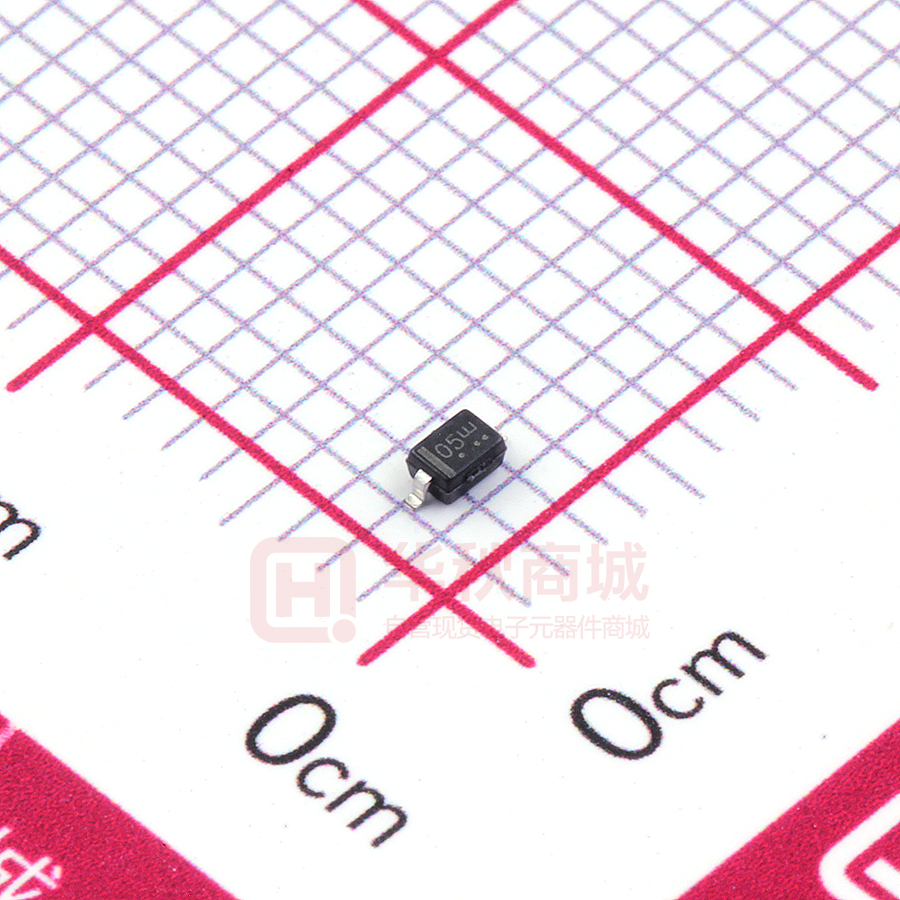

LESD3Z5.0T1G

LESHAN RADIO COMPANY, LTD. Transient Voltage Suppressors for ESD Protection General Description The LESD3Z5.0T1G Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Applications LESD3Z5.0T1G S-LESD3Z5.0T1G Cellular Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants(PDA’S) Notebooks, Desktops, and Servers 1 Portable Instrumentation Pagers Peripherals Features z z z z z z z z z z z z 2 Small Body Outline Dimensions 250 Watts peak pulse power (tp = 8/20μs) Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20μs) Small package for use in portable electronics Suitable replacement for MLV’s in ESD protection applications Protects one I/O or power line Low clamping voltage Working voltages: 5V and 12V Low leakage current Solid-state silicon-avalanche technology We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. SOD– 323 ORDERING INFORMATION Device LESD3Z5.0T1G Marking Shipping 05 3000/Tape & Reel Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPK Peak Pulse Power (tp = 8/20μs) 250 W VESD ESD Voltage(HBM Waveform per IEC 61000-4-2) 30 kV Maximum lead temperature for soldering during 10s 260 °C Storage Temperature Range -55 to +150 °C Maximum junction temperature -55 to +125 °C TL TSTG TJ Dec. , 2018 Rev.A 1/5 LESHAN RADIO COMPANY, LTD. LESD3Z5.0T1G , S-LESD3Z5.0T1G Electrical Parameter Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM IT Test Current VBR Breakdown Voltage @ IT IF Forward Current VF Forward Voltage @ IF Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA VRWM (V) Device IR(uA) VBR (V)@ VC (V) VC (V) It=1mA @ IPP=5 A @ IPP=24 tp=8/20μs @ tp=8/20μs VRWM=5V IPP (A) C tp=8/20μs (pF) Max Max Min Typ Max Max Typ LESD3Z5.0T1G 5.0 10 6.0 9.8 10.5 24 350 LESD3Z12T1G 12.0 1.0 13.3 19.0 16.5 15 150 Fig.1 Dec. , 2018 Non-Repetitive Peak Pulse Power vs. Pulse Time Rev.A 2/5 LESHAN RADIO COMPANY, LTD. LESD3Z5.0T1G , S-LESD3Z5.0T1G Fig.2 Power Derating Curve Fig.3 Waveform 3Z12 3Z05 Fig.4 Dec. , 2018 Clamping Voltage vs. Peak Pulse Current Rev.A 3/5 LESHAN RADIO COMPANY, LTD. LESD3Z5.0T1G , S-LESD3Z5.0T1G 3Z05 3Z12 Fig.5 Capacitance vs. Reverse Voltage 3Z12 3Z05 Fig.6 Dec. , 2018 Forward Voltage vs. Forward Current Rev.A 4/5 LESHAN RADIO COMPANY, LTD. LESD3Z5.0T1G , S-LESD3Z5.0T1G SOD-323 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 A3 A C NOTE 3 L NOTE 5 A1 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 SOLDERING FOOTPRINT* 0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 Dec. , 2018 Rev.A 5/5
