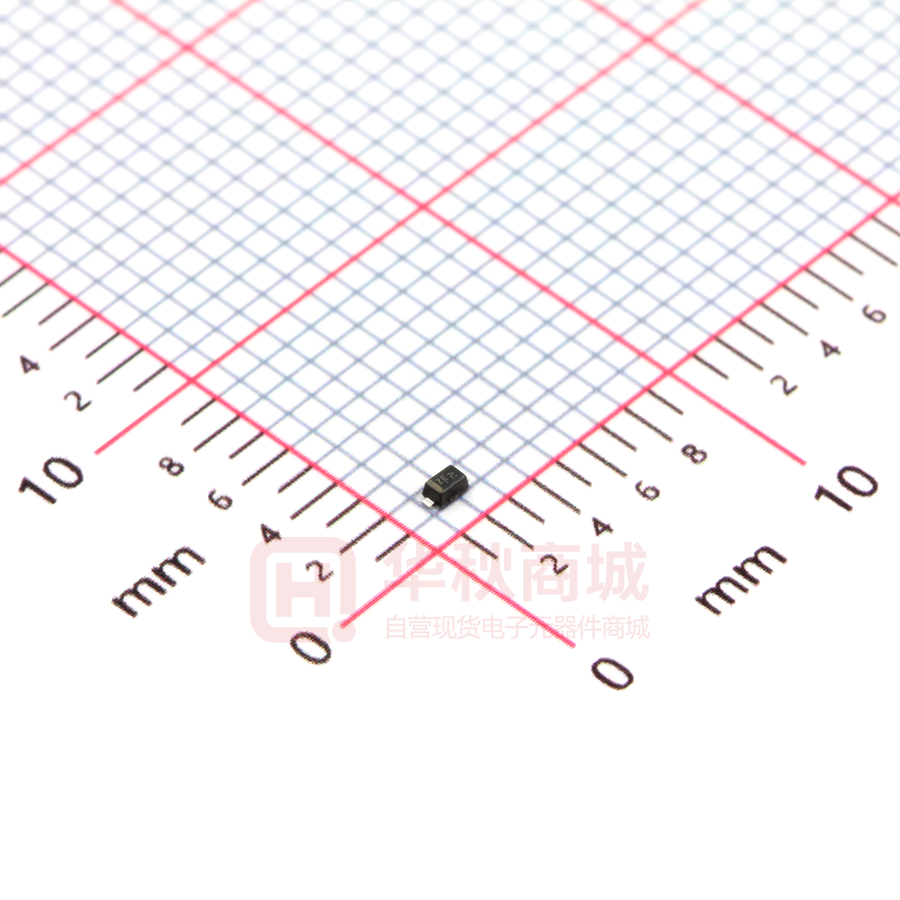

LESD5Z3.3T1G

LESHAN RADIO COMPANY, LTD. Transient Voltage Suppressors for ESD Protection General Description The LESD5Z2.5T1G Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. LESD5Z2.5T1G SERIES S-LESD5Z2.5T1G SERIES Applications z z z z Cellular phones Portable devices Digital cameras Power supplies SOD-523 Features z z z z z z z z z z z Small Body Outline Dimensions Low Body Height Stand−off Voltage: 2.5 V − 12 V Peak Power up to 200 Watts @ 8 x 20 _s Pulse Low Leakage Response Time is Typically < 1 ns ESD Rating of Class 3 (> 16 kV) per Human Body Model IEC61000−4−2 Level 4 ESD Protection IEC61000−4−4 Level 4 EFT Protection We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. ORDERING INFORMATION Device Package LESD5Z2.5T1G SERIES S-LESD5Z2.5T1G SERIES SOD−523 Shipping 3000/Tape & Reel Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 200 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +150 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±15 ±8 KV IEC61000-4-2 (ESD) air discharge contact discharge IEC61000-4-4 (EFT) ESD Voltage 40 Per Human Body Model 16 A KV Rev.O 1/6 LESHAN RADIO COMPANY, LTD. LESD5Z2.5T1G SERIES , S-LESD5Z2.5T1G SERIES Electrical Parameter Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM IT Test Current VBR Breakdown Voltage @ IT IF Forward Current VF Forward Voltage @ IF Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device Device Marking VRWM (V) IR(uA) VBR (V)@ IT @ VRWM (Note 1) Max Max Min mA Typ Max IT VC (V) VC (V) PPK C (W)* (pF) Max Max Typ IPP @ IPP=5 A* @ Max IPP* (A)* LESD5Z2.5T1G ZD 2.5 6.0 4.0 1.0 6.5 10.9 11.0 120 145 LESD5Z3.3T1G ZE 3.3 1.0 5.0 1.0 8.4 14.1 11.2 158 105 LESD5Z5.0T1G ZF 5.0 1.0 6.2 1.0 11.6 18.6 9.4 174 80 LESD5Z6.0T1G ZG 6.0 1.0 6.8 1.0 12.4 20.5 8.8 181 70 LESD5Z7.0T1G ZH 7.0 1.0 7.5 1.0 13.5 22.7 8.8 200 65 LESD5Z12T1G ZM 12 1.0 13.5 1.0 17 25 9.6 240 55 *Surge current waveform per Figure 1. 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． Rev.O 2/6 LESHAN RADIO COMPANY, LTD. LESD5Z2.5T1G SERIES , S-LESD5Z2.5T1G SERIES Fig1. Pulse Waveform Fig3.Power Derating Application Note Electrostatic discharge (ESD) is a major cause of failure in electronic systems. Transient Voltage Suppressors (TVS) are an ideal choice for ESD protection. They are capable of clamping the incoming transient to a low enough level such that damage to the protected semiconductor is prevented. Surface mount TVS offer the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal line to ground. As the transient rises above the operating voltage of the device, the TVS becomes a low impedance path diverting the transient current to ground. The LESD5Z2.5T1G is the ideal board evel protection of ESD sensitive semiconductor components. The tiny SOD523 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening againt ESD. Rev.O 3/6 LESHAN RADIO COMPANY, LTD. LESD5Z2.5T1G SERIES , S-LESD5Z2.5T1G SERIES SC-79/SOD-523 −X− D −Y− E 2X b 0.08 1 M 2 X Y TOP VIEW A c NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. DIM A b c D E HE L L2 MILLIMETERS MIN NOM MAX 0.50 0.60 0.70 0.25 0.30 0.35 0.07 0.14 0.20 1.10 1.20 1.30 0.70 0.80 0.90 1.50 1.60 1.70 0.30 REF 0.15 0.20 0.25 HE SIDE VIEW RECOMMENDED SOLDERING FOOTPRINT* 2X 0.48 1.80 2X 0.40 PACKAGE OUTLINE DIMENSION: MILLIMETERS Rev.O 4/6 LESHAN RADIO COMPANY, LTD. EMBOSSED TAPE AND REEL DATA FOR DISCRETES CARRIER TAPE SPECIFICATIONS T Max Outside Dimension Measured at Edge 13.0mm ± 0.5mm 1.5mm Min (.512 ±.002’’) (.06’’) A 50mm Min (1.969’’) 20.2mm Min (.795’’) Full Radius G Inside Dimension Measured Near Hub Size A Max 8 mm 178.0mm (7.0’’) G 8.4mm+1.5mm, -0.0 (.33’’+.039’’, -0.00) T Max 10.9mm (.43’’) Reel Dimensions Metric Dimensions Govern –– English are in parentheses for reference only Storage Conditions Temperature: 5 to 40 Deg.C (20 to 30 Deg. C is preferred) Humidity: 30 to 80 RH (40 to 60 is preferred ) Recommended Period: One year after manufacturing (This recommended period is for the soldering condition only. The characteristics and reliabilities of the products are not restricted to this limitation) Rev.O 5/6 LESHAN RADIO COMPANY, LTD. Shipment Specification CPN LABEL LABEL LABEL Dim(Unit:mm) 195mm*195mm*150mm 10 Reel 10Reel/Inner Box 30KPCS/Inner Box 3000PCS/Reel 40KPCS/Inner Box (SOT-723,SOD-723,SOD-923) 4000PCS/Reel (SOT-723,SOD-723,SOD-923) 80KPCS/Inner Box (SOT-723,SOD-723,SOD-923) 8000PCS/Reel (SOT-723,SOD-723,SOD-923) Dim(Unit:mm) LABEL 460mm*400mm*420mm MARK 乐山无线电股份有限公司 Leshan Radio Company,Ltd. 12 Inner Box/Carton 360KPCS/Carton 960KPCS/Carton (SOT-723,SOD-723,SOD-923) Rev.O 6/6
