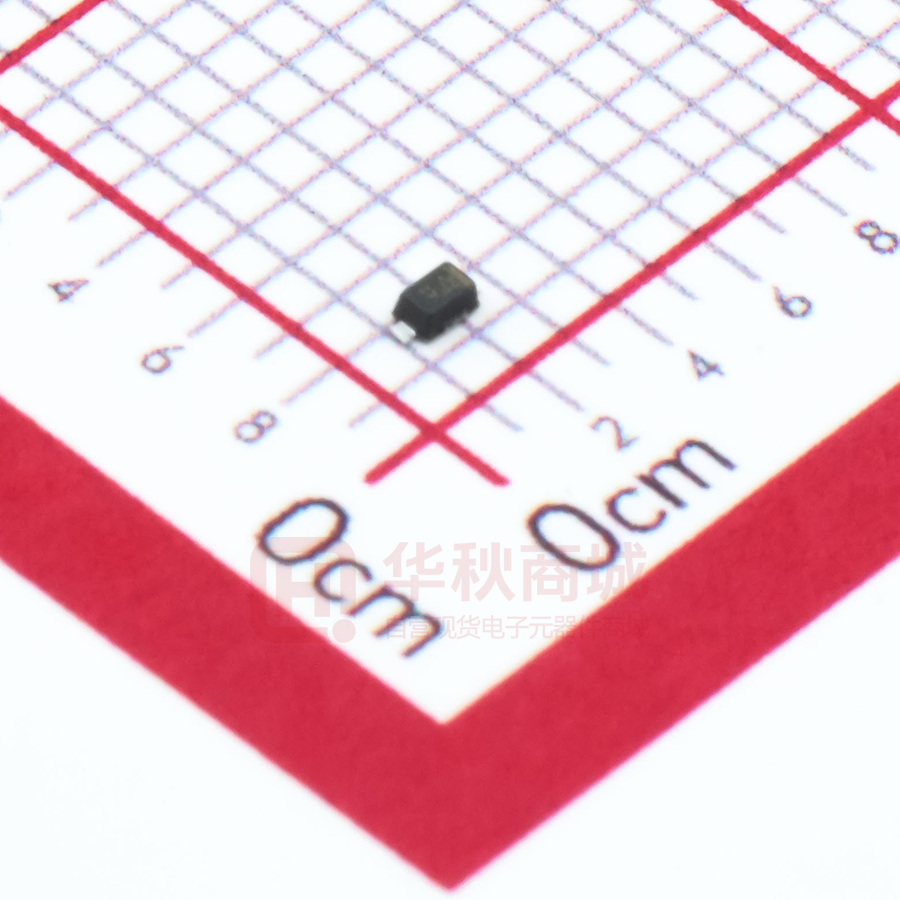

LESD5Z5.0T1G

LESHAN RADIO COMPANY, LTD. Transient Voltage Suppressors for ESD Protection General Description The LESD5Z5.0T1G is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD LESD5Z5.0T1G protection on designs where board space is at a premium. Applications Cellular phones Portable devices Digital cameras Power supplies SC-79/SOD-523 Features Small Body Outline Dimensions Low Body Height Stand−off Voltage: 2.5 V − 7.0 V Peak Power up to 200 Watts @ 8 x 20 _s Pulse Low Leakage Response Time is Typically < 1 ns ESD Rating of Class 3 (> 16 kV) per Human Body Model IEC61000−4−2 Level 4 ESD Protection IEC61000−4−4 Level 4 EFT Protection We declare that the material of product compliance with RoHS requirements. ORDERING INFORMATION Device LESD5Z5.0T1G Package SOD−523 Shipping 3000/Tape & Reel Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP TL Tstg Top Tj Peak Pulse Power (tp = 8/20μs) Maximum lead temperature for soldering during 10s Storage Temperature Range Operating Temperature Range Maximum junction temperature IEC61000-4-2 (ESD) IEC61000-4-4 (EFT) ESD Voltage Per Human Body Model air discharge contact discharge 200 260 -55 to +150 -40 to +125 150 ±15 ±8 40 16 W °C °C °C °C KV A KV 1/6 LESHAN RADIO COMPANY, LTD. LESD5Z5.0T1G Electrical Parameter Symbol IPP VC VRWM IR IT VBR IF VF Parameter Maximum Reverse Peak Pulse Current Clamping Voltage @ IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT Forward Current Forward Voltage @ IF Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device VRWM (V) Max IR(uA) @ VRWM Max 6.0 1.0 1.0 1.0 1.0 VBR (V)@ IT (Note 1) Min 4.0 5.0 6.2 6.8 7.5 IT mA 1.0 1.0 1.0 1.0 1.0 VC (V) @ IPP=5 A* Typ 6.5 8.4 11.6 12.4 13.5 VC (V) @ Max IPP* Max 10.9 14.1 18.6 20.5 22.7 IPP (A)* Max 11.0 11.2 9.4 8.8 8.8 PPK (W)* Max 120 158 174 181 200 C (pF) Typ 145 105 80 70 65 LESD5Z2.5T1G LESD5Z3.3T1G LESD5Z5.0T1G LESD5Z6.0T1G LESD5Z7.0T1G 2.5 3.3 5.0 6.0 7.0 *Surge current waveform per Figure 1. 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． 2/6 LESHAN RADIO COMPANY, LTD. LESD5Z5.0T1G Fig1. Pulse Waveform Fig3.Power Derating Application Note Electrostatic discharge (ESD) is a major cause of failure in electronic systems. Transient Voltage Suppressors (TVS) are an ideal choice for ESD protection. They are capable of clamping the incoming transient to a low enough level such that damage to the protected semiconductor is prevented. Surface mount TVS offer the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal line to ground. As the transient rises above the operating voltage of the device, the TVS becomes a low impedance path diverting the transient current to ground. The LESD5Z5.0T1G is the ideal board evel protection of ESD sensitive semiconductor components. The tiny SOD523 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening againt ESD. 3/6 LESHAN RADIO COMPANY, LTD. LESD5Z5.0T1G SC-79/SOD-523 A C HE VM A 0 0.5 scale 1mm D A Eb p DIMENSIONS (mm are the original dimensions) UNIT mm A 0.7 0.5 bp 0.35 0.25 c 0.2 0.1 D 1.3 1.1 E 0.9 0.7 HE 1.7 1.5 V 0.15 Note 1. The marking bar indicates the cathode. OUTLINE VERSION SOD523 REFERENCES IEC JEDEC EIAJ SC-79 EUROPEAN PROJECTION ISSUE DATE 98-11-25 4/6 LESHAN RADIO COMPANY, LTD. EMBOSSED TAPE AND REEL DATA FOR DISCRETES T Max Outside Dimension Measured at Edge 13.0mm ± 0.5mm 1.5mm Min (.512 ±.002’’) (.06’’) A 20.2mm Min (.795’’) 50mm Min (1.969’’) Full Radius G Inside Dimension Measured Near Hub Size 8 mm A Max 330mm (12.992’’) G 8.4mm+1.5mm, -0.0 (.33’’+.059’’, -0.00) T Max 14.4mm (.56’’) Reel Dimensions Metric Dimensions Govern –– English are in parentheses for reference only Storage Conditions Temperature: 5 to 40 Deg.C (20 to 30 Deg. C is preferred) Humidity: 30 to 80 RH (40 to 60 is preferred ) Recommended Period: One year after manufacturing (This recommended period is for the soldering condition only. The characteristics and reliabilities of the products are not restricted to this limitation) 5/6 LESHAN RADIO COMPANY, LTD. Shipment Specification CPN LABEL LABEL LABEL 10Reel/Inner Box 30KPCS/Inner Box Dim(Unit:mm) 195mm*195mm*150mm 10 Reel 3000PCS/Reel 80KPCS/Inner Box (SOT-723,SOD-723,SOD-923) 8000PCS/Reel (SOT-723,SOD-723,SOD-923) Dim(Unit:mm) 460mm*400mm*420mm LABEL MARK 乐山无线电股份有限公司 Leshan Radio Company,Ltd. 12 Inner Box/Carton 360KPCS/Carton 960KPCS/Carton (SOT-723,SOD-723,SOD-923) 6/6
