LESD8D12CT5G

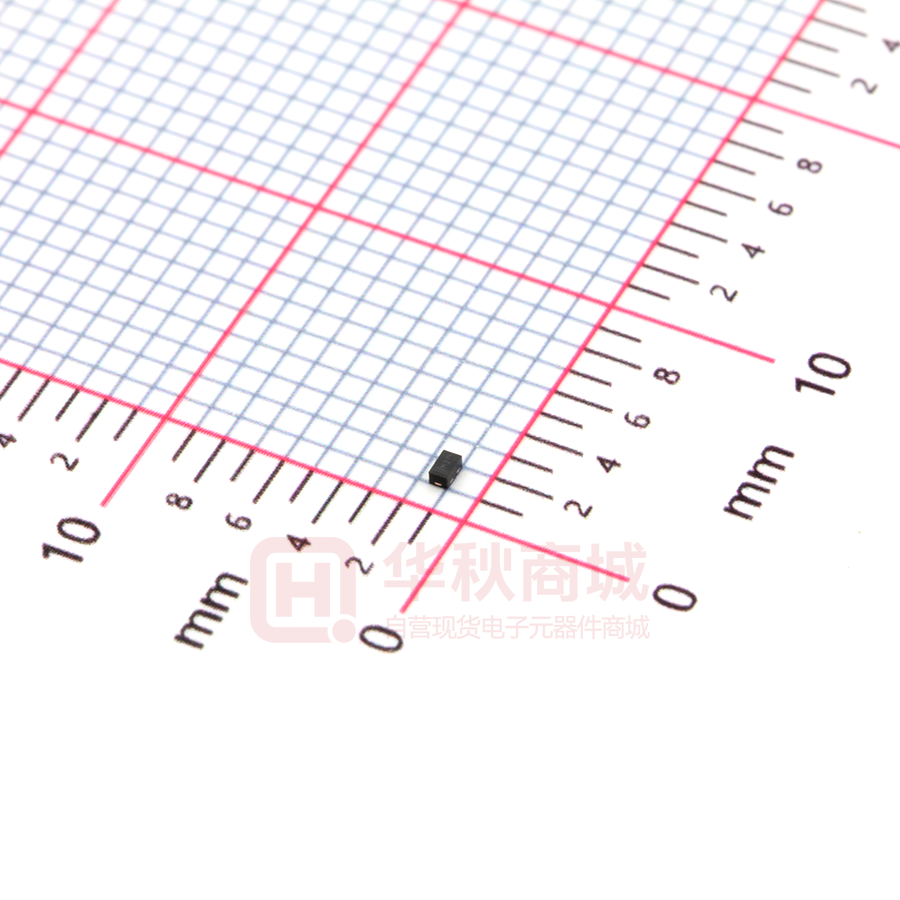

LESHAN RADIO COMPANY, LTD. LESD8D12CT5G ESD PROTECTION DIODE Discription The LESD8D12CT5G is designed to protect LESD8D12CT5G voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time make these parts ideal for ESD protection on designs where board space is at a premium. 1 Because of its small size, it is suited for use in cellular phones, digital cameras and many other portable 2 applications where board space is at a premium. SOD882 Applications l l l l Cellular phones audio Digital cameras 1 Portable applications 2 Mobile telephone Ordering information Features l Small Body Outline Dimensions: 1.00 mm x 0.60 mm l l Low Body Height: 0.50 mm l l l l Response Time is Typically < 1 ns ESD Rating of Class 3 per Human Body Model Device LESD8D12CT5G Marking H1 Shipping 10000/Tape&Reel Low Leakage IEC61000−4−2 Level 4 ESD Protection We declare that the material of product compliance with RoHS requirements and Halogen Free. MAXIMUM RATINGS Rating IEC 61000-4-2 (ESD) Symbol Contact Air Contact discharge Value Unit ±20 ±20 kV kV Total Power Dissipation on FR-5 Board (Note 1) @ TA=25℃ PD 200 mW Junction and Storage Temperature Range TJ,TSTG -55 to 150 ℃ Lead Solder Temperature – Maximum (10 Second Duration) TL 260 ℃ Stresses exceeding Maximum Ratings may damage the device. Maximum Rating are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR-5 = 1.0*0.75*0.62 in. Feb. 2021 Rev.B 1/5 LESHAN RADIO COMPANY, LTD. LESD8D12CT5G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Parameter Symbol I IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT Ppk C IPP Working Peak Reverse Voltage IT VC VBR VRWM IR Maximum Reverse Leakage Current @ VRWM IR VRWM VBR VC IT Breakdown Voltage @ IT V Test Current Peak Power Dissipation IPP Capacitance @ VR = 0 and f = 1.0 MHz Bi−Directional TVS ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted, VF=0.9V Max. @ IF=10Ma for all types) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR 13.3 14.5 Max Unit 12 V 16 V Test Condition IR = 1mA Peak Pulse Power(8/20 μs) PPK 88 W Peak Pulse Current (8/20µs) IPP 4 A Reverse Leakage Current IR 1 μA Clamping Voltage VC 22 V IPP = 4A(8 x 20µs pulse) Junction Capacitance CJ 9.5 pF VR = 0V, f = 1MHz Feb. 2021 3.5 6.5 VRM= 8 12V Rev.B 2/5 LESHAN RADIO COMPANY, LTD. LESD8D12CT5G Typical Performance Characteristics (T A=25°C unless otherwise Specified) 100 90 % of Rated Power 80 70 60 50 Peak Pluse Power 8/20µs 40 30 20 10 0 0 25 50 75 100 125 150 Lead Temperature- TL(℃) Fig1. Pulse Waveform Fig2.Power Derating Curve Fig 3 .Positive 8kV contact per IEC61000-4-2 Fig 4 .Negative 8kV contact per IEC61000-4-2 Clamping Voltage_Vc (V) 36 30 24 18 12 6 0 0 1 2 3 4 Peak Pulse Current_Ipp (A) Fig 5 .Clamping Voltage vs. Peak Pulse Current Feb. 2021 Rev.B 3/5 LESHAN RADIO COMPANY, LTD. LESD8D12CT5G Application Note Electrostatic discharge (ESD) is a major cause of failure in electronic systems. Transient Voltage Suppressors (TVS) are an ideal choice for ESD protection. They are capable of clamping the incoming transient to a low enough level such that damage to the protected semiconductor is prevented. Surface mount TVS offer the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal line to ground. As the transient rises above the operating voltage of the device, the TVS becomes a low impedance path diverting the transient current to ground. The LESD8D12CT5G is the ideal board evel protection of ESD sensitive semiconductor components. The tiny SOD882 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening againt ESD. Feb. 2021 Rev.B 4/5 LESHAN RADIO COMPANY, LTD. LESD8D12CT5G Package Outline Dimension Suggested Pad layout Feb. 2021 Rev.B 5/5 LESHAN RADIO COMPANY, LTD. DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
