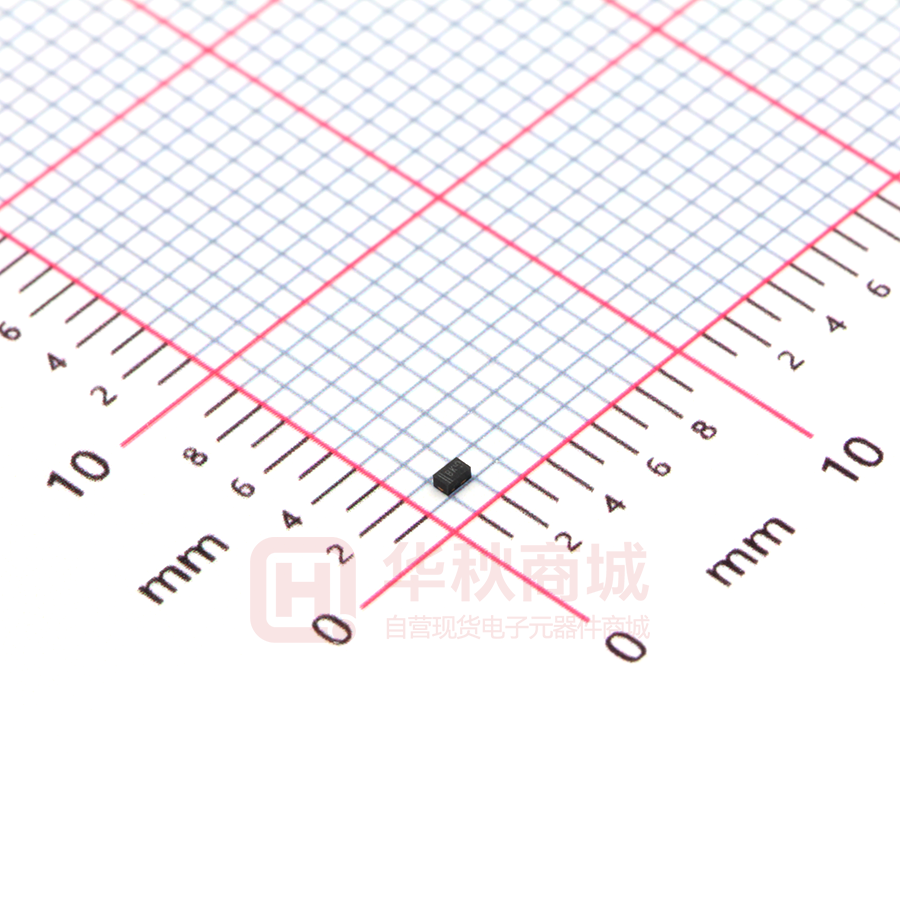

LESD8D3.3CAT5G

LESHAN RADIO COMPANY, LTD. LESD8D3.3CAT5G ESD PROTECTION DIODE Discription The LESD8D3.3CAT5G is designed to protect LESD8D3.3CAT5G voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time ,make these parts ideal for ESD protection on designs where board space is at a premium. 1 Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. 2 Applications l l l l l SOD882 Cellular phones audio MP3 players Digital cameras Portable applicationss mobile telephone 2 1 Features l l l l l l Low Leakage Response Time is Typically < 1 ns ESD Rating of Class 3 (> 16 kV) per Human Body Model IEC61000−4−2 Level 4 ESD Protection These are Pb−Free Devices We declare that the material of product compliance with RoHS requirements. Ordering information Device LESD8D3.3CAT5G Marking BK Shipping 10000/Tape&Reel MAXIMUM RATINGS Rating Symbol IEC 61000-4-2 (ESD) ESD Voltage discharge Air Contact discharge Per Human Body Model Value Unit ±25 ±20 kV kV 16 kV Total Power Dissipation on FR-5 Board (Note 1) @ TA=25℃ PD 200 mW Junction and Storage Temperature Range TJ,TSTG -55 to 150 ℃ Lead Solder Temperature – Maximum (10 Second Duration) TL 260 ℃ Stresses exceeding Maximum Ratings may damage the device. Maximum Rating are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR-5 = 1.0*0.75*0.62 in. Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LESD8D3.3CAT5G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR Working Peak Reverse Voltage IT I IT VC VBR VRWM IR Maximum Reverse Leakage Current @ VRWM VBR IR VRWM VBR VC IT Breakdown Voltage @ IT V Test Current Ppk C IPP Peak Power Dissipation IPP Capacitance @ VR = 0 and f = 1.0 MHz Bi−Directional TVS ELECTRICAL CHARACTERISTICS VRWM (V) IR ( mA) @ VRWM Device Max Max Min LESD8D3.3CAT5G 3.3 0.1 5.0 IT VC (V) @ IPP = 1 A (Note 3) VC (V) @MAX IPP (Note 3) IPP(A) (Note 3) Max mA Max Max Max Max Max 6.5 1.0 7 6 60 16 VBR (V) @ IT (Note 2) 10 PPK(W) (Note 3) C (pF) Other voltage available upon request. 2. VBR is measured with a pulse test current IT at an ambient temperature of 25℃ 3. Surge current waveform per Figure 1. Fig1. Pulse Waveform Fig2.Power Derating Curve Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LESD8D3.3CAT5G Fig3.Positive 8 kV Contact per IEC61000.4.2 Fig4.Negative 8 kV Contact per IEC61000.4.2 SOD882 DIMENSION OUTLINE: Unit:mm Rev.O 3/3
