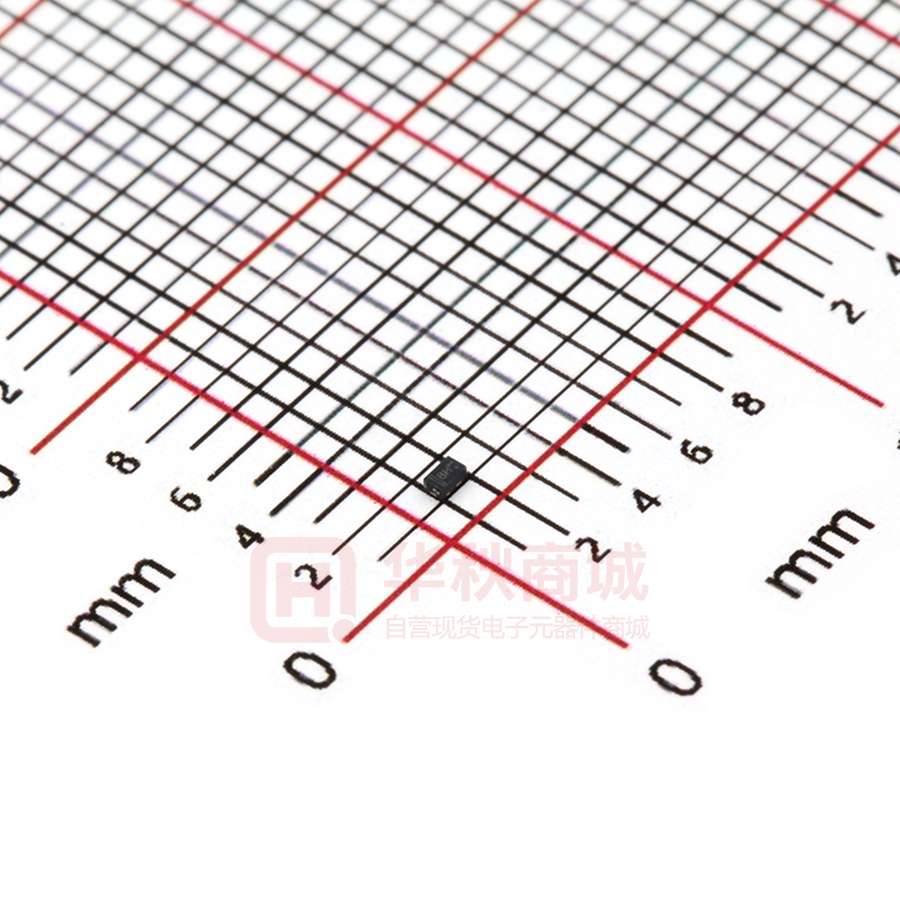

LESD8H6.3T5G

LESHAN RADIO COMPANY, LTD. LESD8H6.3T5G Transient Voltage Suppressors LESD8H6.3T5G Discription The ESD8H is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small siz e , it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. 2 1 Specification Features: SOD882 • Capacitance 230 pF • Low Clamping Voltage • Small Body Outline Dimensions: • • • • • • 0.039″ x 0.024″ (1.00 mm x 0.60 mm) Low Body Height: 0.020″ (0.5 mm) Stand−off Voltage: 6.3 V Low Leakage Response Time is Typically < 1.0 ns IEC61000−4−2 Level 4 ESD Protection This is a Pb−Free Device Ordering information Device QUALIFIED MAX REFLOW TEMPERATURE: 260°C LESD8H6.3T5G Marking Shipping 8H 10000/Tape&Reel Device Meets MSL 1 Requirements MAXIMUM RATINGS Symbol Rating IEC 61000−4−2 (ESD) Contact Air Value Unit ±30 ±30 kV Total Power Dissipation on FR−5 Board (Note 1) @ TA = 25°C °PD° 200 mW Storage Temperature Range Tstg −55 to +150 °C Junction Temperature Range TJ −55 to +125 °C Lead Solder Temperature − Maximum (10 Second Duration) TL 260 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR−5 = 1.0 x 0.75 x 0.62 in. Rev.C 1/4 LESHAN RADIO COMPANY, LTD. LESD8H6.3T5G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT Ppk C Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT Test Current Peak Power Dissipation Capacitance @ VR = 0 and f = 1.0 MHz ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Device LESD8H6.3T5G Device Marking 8H VBR (V) @ IT = 1mA (Note 1) VC (V) @ IPP =20A R(dynamic) IPP (A) VF @ IF =10mA (V) t p=8/20μs VRWM (V) IR (uA) @ VRWM Max Max Min Max MAX Max 6.3 1 7 9.5 11 21 C (pF) t P = 2/100µs (TLP) Max MAX Typ 1.1 230 0.11 1. VBR is measured with a pulse test current IT at an ambient temperature of 25°C. 16 Clamping Voltage_Vc (V) 14 12 10 8 6 4 2 0 5 10 15 20 25 Peak Pulse Current_Ipp (A) Figure 1 .TLP Measuresent Figure 2 .Clamping Voltage vs.Peak Pulse Current Rev.C 2/4 LESHAN RADIO COMPANY, LTD. LESD8H6.3T5G Figure 3.ESD Elamping Voltage Screenshot Positive 8 kV Eontact per IEE61000-4-2 Figure 4.ESD Elamping Voltage Screenshot Negative 8 kV Eontact per IEE61000 -4-2 Rev.C 3/4 LESHAN RADIO COMPANY, LTD. LESD8H6.3T5G OUTLINE AND DIMENSIONS SOD882 Dim Min Typ. Max D 0.95 1.00 1.05 E 0.55 0.60 0.65 e - 0.64 - L 0.44 0.49 0.54 b 0.20 0.25 0.30 A 0.43 0.48 0.53 A1 A3 0 0.05 0.127REF. All Dimensions in mm SOLDERING FOOTPRINT Dimensions c G X X1 Y (mm) 0.70 0.30 0.40 1.10 0.70 Rev.C 4/4
