LESHAN RADIO COMPANY, LTD.

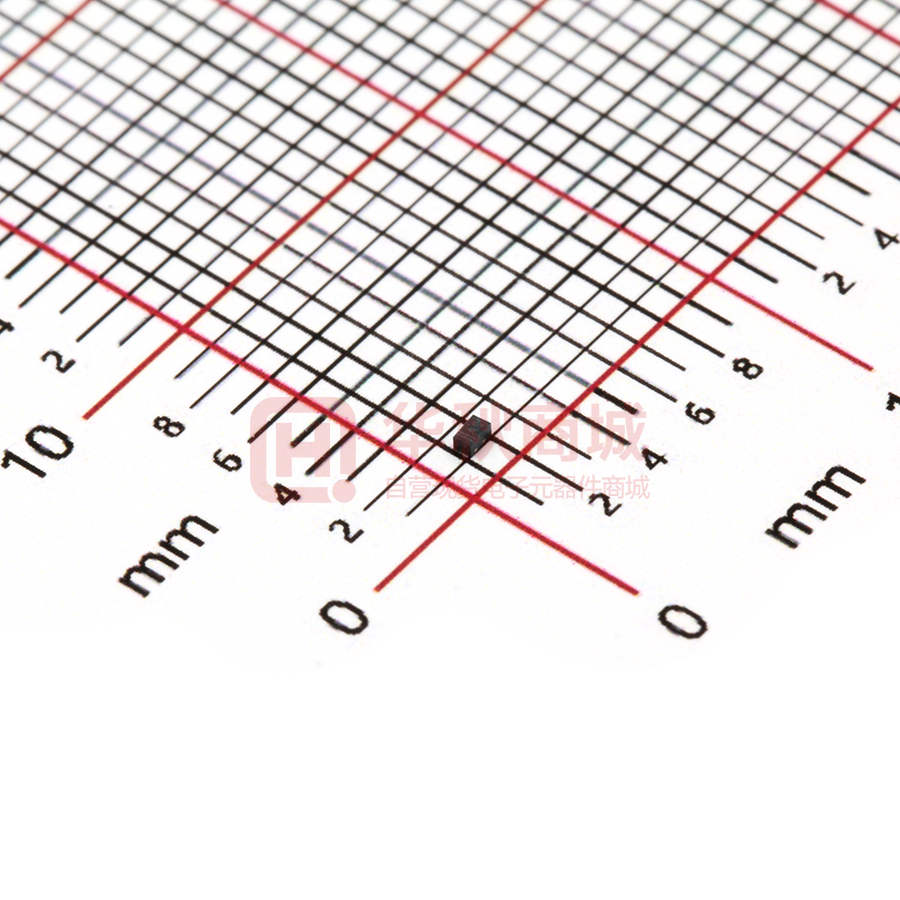

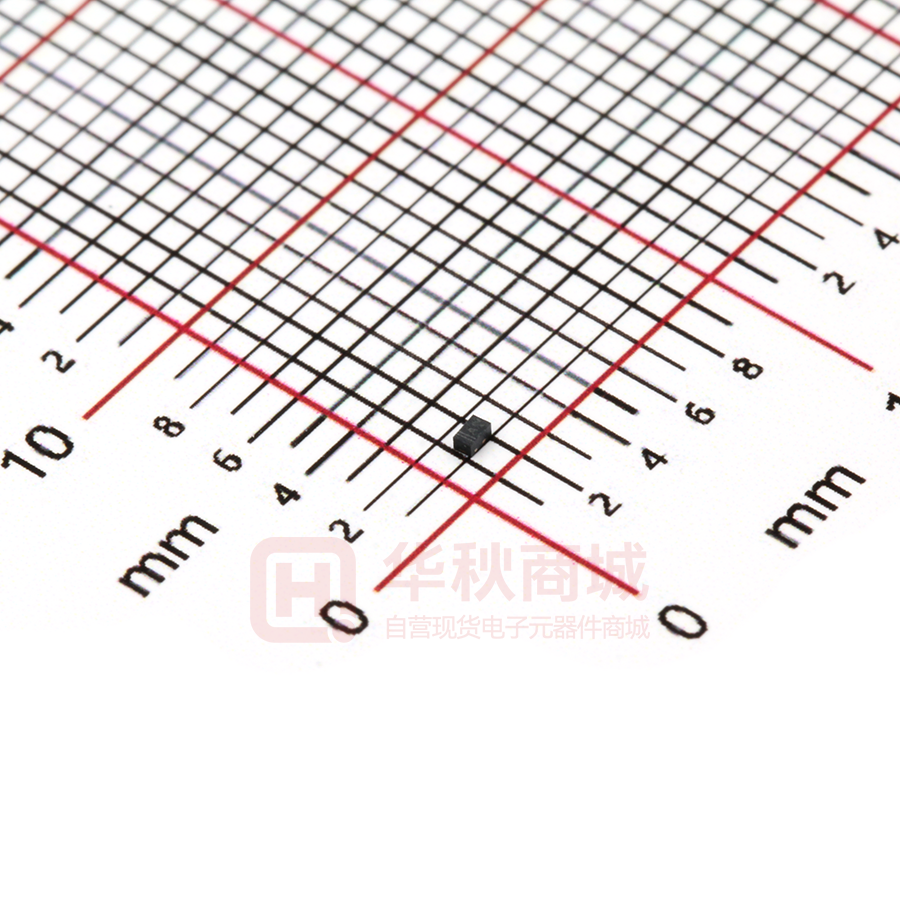

LESD8LH5.0CT5G Transient Voltage Suppressors
ESD Protection Diodes with Ultra−Low
Capacitance
LESD8LH5.0CT5G
The ESD8L is designed to protect voltage sensitive components that
require ultra−low capacitance from ESD and transient voltage events.
Excellent clamping capability, low capacitance, low leakage, and fast
response time, make these parts ideal for ESD protection on designs
where board space is at a premium. Because of its low capacitance, it is
suited for use in high frequency designs such as USB 2.0 high speed and
antenna line applications.
1
2
Specification Features:
SOD882
• Ultra Low Capacitance 3 pF
• Low Clamping Voltage
• Small Body Outline Dimensions:
•
•
•
•
•
•
1
0.039″ x 0.024″ (1.00 mm x 0.60 mm)
Low Body Height: 0.020″ (0.5 mm)
Stand−off Voltage: 5 V
Low Leakage
Response Time is Typically < 1.0 ns
IEC61000−4−2 Level 4 ESD Protection
This is a Pb−Free Device
Mechanical Characteristics:
CASE: Void-free, transfer-molded, thermosetting plastic
2
Ordering information
Epoxy Meets UL 94 V−0
LEAD FINISH: 100% Matte Sn (Tin)
QUALIFIED MAX REFLOW TEMPERATURE: 260°C
Device
Marking
Shipping
LESD8LH5.0CT5G
A
10000/Tape&Reel
Device Meets MSL 1 Requirements
MAXIMUM RATINGS
Rating
IEC 61000−4−2 (ESD)
Symbol
Contact
Air
Value
Unit
±10
±15
kV
Total Power Dissipation on FR−5 Board
(Note 1) @ TA = 25°C
°PD°
150
mW
Storage Temperature Range
Tstg
−55 to +150
°C
Junction Temperature Range
TJ
−55 to +125
°C
Lead Solder Temperature − Maximum
(10 Second Duration)
TL
260
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR−5 = 1.0 x 0.75 x 0.62 in.
Rev.A 1/4
LESHAN RADIO COMPANY, LTD.
LESD8LH5.0CT5G
ELECTRICAL CHARACTERISTICS
I
(TA = 25°C unless otherwise noted)
IPP
Maximum Reverse Peak Pulse Current
VC
Clamping Voltage @ IPP
VRWM
Reverse stand-off voltage
IR
IPP
Parameter
Symbol
VC VTRIG VBR VRWM
Maximum Reverse Leakage Current @ VRWM
VBR
IT
IT
I TRIG
IR
IR
I TRIG
IT
V
VRWM VBRVTRIGVC
Breakdown Voltage @ IT
Test Current
VTRIG
Reverse trigger voltage
I TRIG
Reverse trigger current
IPP
Bi−Directional TVS
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
VBR (V)
VRWM IR (u A) @ IT = 1mA
(V)
(Note 2)
@ VRWM
Device
LESD8LH5.0CT5G
Device
Marking Max
A
5.0
C (pF)
VC (V)
@ IPP = 3.5 A
(Note 3)
IPP (A)
tp=8/20μs PPP (W)
Max
Min
Typ
Max
Max
Max
Max
1
5.5
2.7
3.5
11.5
3.5
40
VC
Per IEC61000−4−2
(Note4)
Figures 1 and 2
See Below
2. VBR is measured with a pulse test current IT at an ambient temperature of 25°C.
3. Surge current waveform per Figure 4.
4. For test procedure see Figures 3.
Figure 1. ESD Clamping Voltage Screenshot
Positive 8 kV Contact per IEC61000−4−2
Figure 2. ESD Clamping Voltage Screenshot
Negative 8 kV Contact per IEC61000−4−2
Rev.A 2/4
LESHAN RADIO COMPANY, LTD.
LESD8LH5.0CT5G
IEC61000−4−2 Waveform
IEC 61000−4−2 Spec.
Ipeak
Level
Test
Voltage
(kV)
First Peak
Current
(A)
Current at
30 ns (A)
Current at
60 ns (A)
1
2
7.5
4
2
2
4
15
8
4
3
6
22.5
12
6
4
8
30
16
8
100%
90%
I @ 30 ns
I @ 60 ns
10%
tP = 0.7 ns to 1 ns
Figure 3. IEC61000−4−2 Spec
% OF PEAK PULSE CURRENT
100
PEAK VALUE IRSM @ 8 ms
tr
90
PULSE WIDTH (tP) IS DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8 ms
80
70
60
HALF VALUE IRSM/2 @ 20 ms
50
40
30
tP
20
10
0
0
20
40
t, TIME (ms)
60
80
Figure 4. 8 X 20 ms Pulse Waveform
Rev.A 3/4
LESHAN RADIO COMPANY, LTD.
LESD8LH5.0CT5G
OUTLINE AND DIMENSIONS
SOLDERING FOOTPRINT
Rev.A 4/4
