LESD8LS5.0CT5G

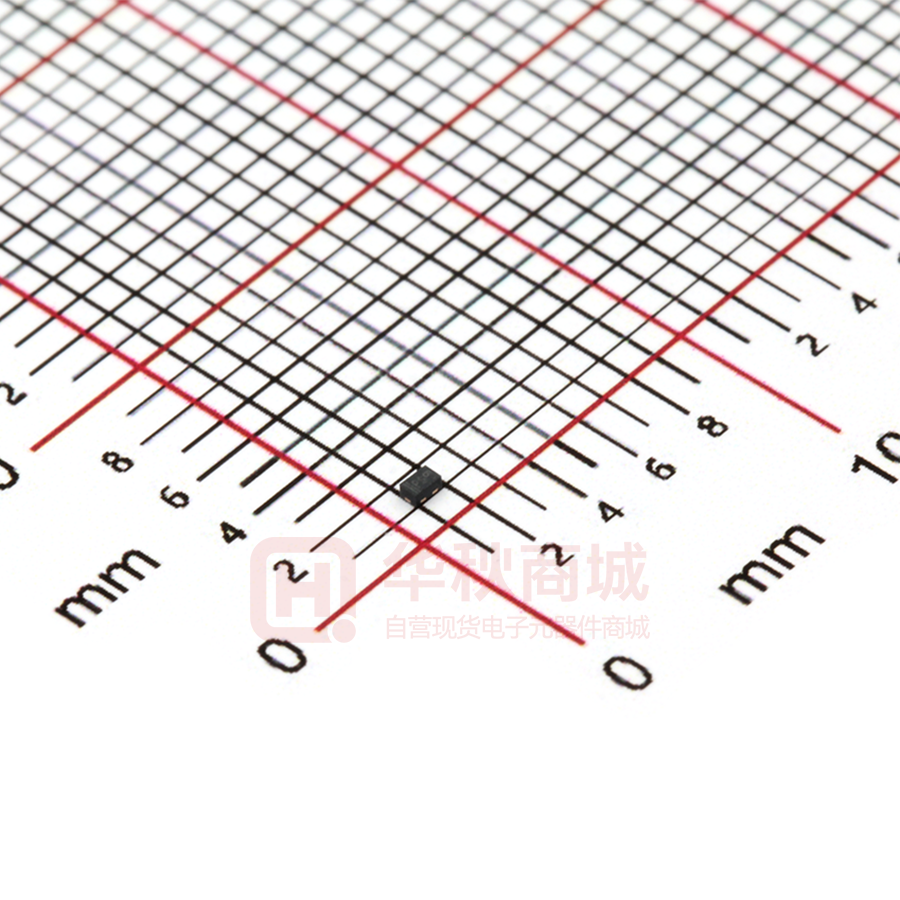

LESHAN RADIO COMPANY, LTD. LESD8LS5.0CT5G Transient Voltage Suppressors ESD Protection Diodes with Ultra−Low Capacitance LESD8LS5.0CT5G The ESD8L is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications. 1 2 Specification Features: SOD882 • Ultra Low Capacitance 0.4 pF • Low Clamping Voltage • Small Body Outline Dimensions: • • • • • • 1 0.039″ x 0.024″ (1.00 mm x 0.60 mm) Low Body Height: 0.020″ (0.5 mm) Stand−off Voltage: 5 V Low Leakage Response Time is Typically < 1.0 ns IEC61000−4−2 Level 4 ESD Protection This is a Pb−Free Device 2 Ordering information Device Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic LESD8LS5.0CT5G Marking PS Shipping 10000/Tape&Reel Epoxy Meets UL 94 V−0 LEAD FINISH: 100% Matte Sn (Tin) QUALIFIED MAX REFLOW TEMPERATURE: 260°C Device Meets MSL 1 Requirements MAXIMUM RATINGS Rating IEC 61000−4−2 (ESD) Symbol Contact Air Value Unit ±8 ±15 kV Total Power Dissipation on FR−5 Board (Note 1) @ TA = 25°C °PD° 150 mW Storage Temperature Range Tstg −55 to +150 °C Junction Temperature Range TJ −55 to +125 °C Lead Solder Temperature − Maximum (10 Second Duration) TL 260 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR−5 = 1.0 x 0.75 x 0.62 in. Rev.O 1/4 LESHAN RADIO COMPANY, LTD. LESD8LS5.0CT5G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol IPP VC VRWM IR IT VBR Parameter Maximum Reverse Peak Current Clamping Voltage @ IPP Pulse Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT ELECTRICAL CHARACTERISTICS VRWM (V) IR (mA) @ VRWM VBR (V) @ IT (Note 2) IT C (pF) VC (V) @ I PPMAX =2.5A (Note 3) VC Per IEC61000−4−2 (Note 4) Device Device Marking Max Max Min mA Max Max LESD8LS5.0CT5G PS 5.0 1.0 6 1.0 0.5 18.4 Figures 1 and 2 See Below 2. VBR is measured with a pulse test current IT at an ambient temperature of 25°C. 3. Surge current waveform per Figure 5. 4. For test procedure see Figures 3 and 4 Figure 1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2 Figure 2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000−4−2 Rev.O 2/4 LESHAN RADIO COMPANY, LTD. LESD8LS5.0CT5G IEC61000−4−2 Waveform IEC 61000−4−2 Spec. Ipeak Level Test Voltage (kV) First Peak Current (A) Current at 30 ns (A) Current at 60 ns (A) 1 2 7.5 4 2 2 4 15 8 4 3 6 22.5 12 6 4 8 30 16 8 100% 90% I @ 30 ns I @ 60 ns 10% tP = 0.7 ns to 1 ns Figure 3. IEC61000−4−2 Spec Oscilloscope TVS 50 W Cable 50 W Figure 4. Diagram of ESD Test Setup 100 % OF PEAK PULSE CURRENT ESD Gun PEAK VALUE IRSM @ 8 ms tr 90 PULSE WIDTH (tP) IS DEFINED AS THAT POINT WHERE THE PEAK CURRENT DECAY = 8 ms 80 70 60 HALF VALUE IRSM/2 @ 20 ms 50 40 30 tP 20 10 0 0 20 40 t, TIME (ms) 60 80 Figure 5. 8 X 20 ms Pulse Waveform Rev.O 3/4 LESHAN RADIO COMPANY, LTD. LESD8LS5.0T5G Package Outline Dimension Suggested Pad layout Rev.O 4/4
