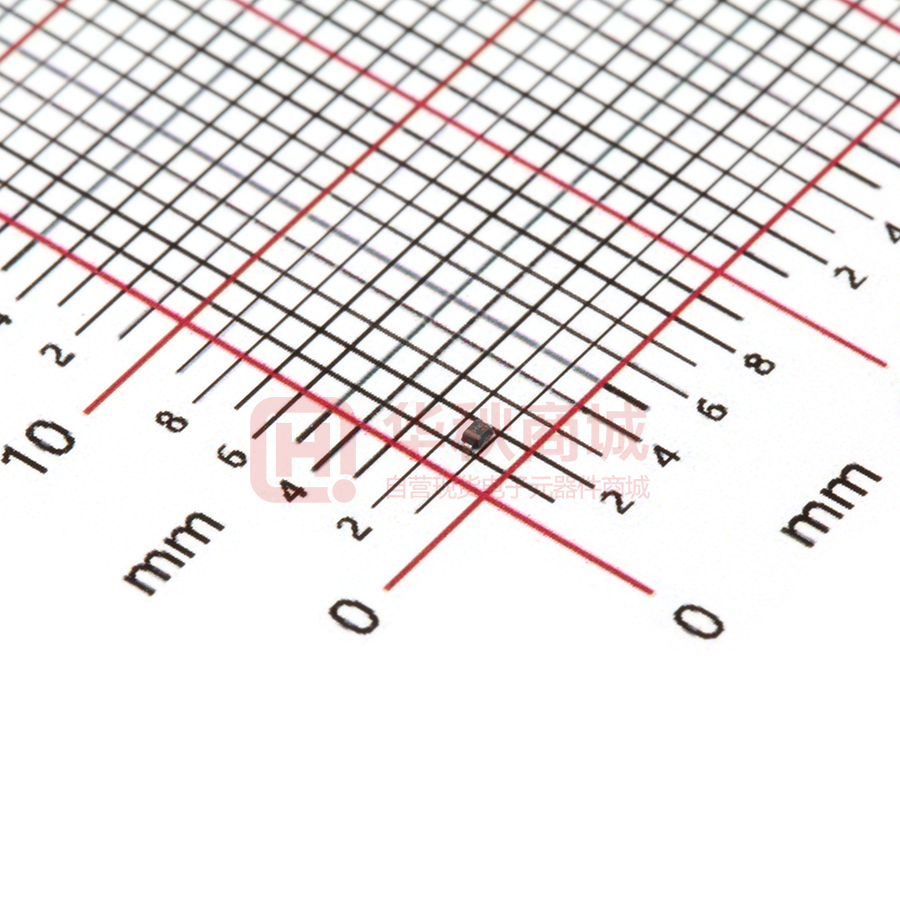

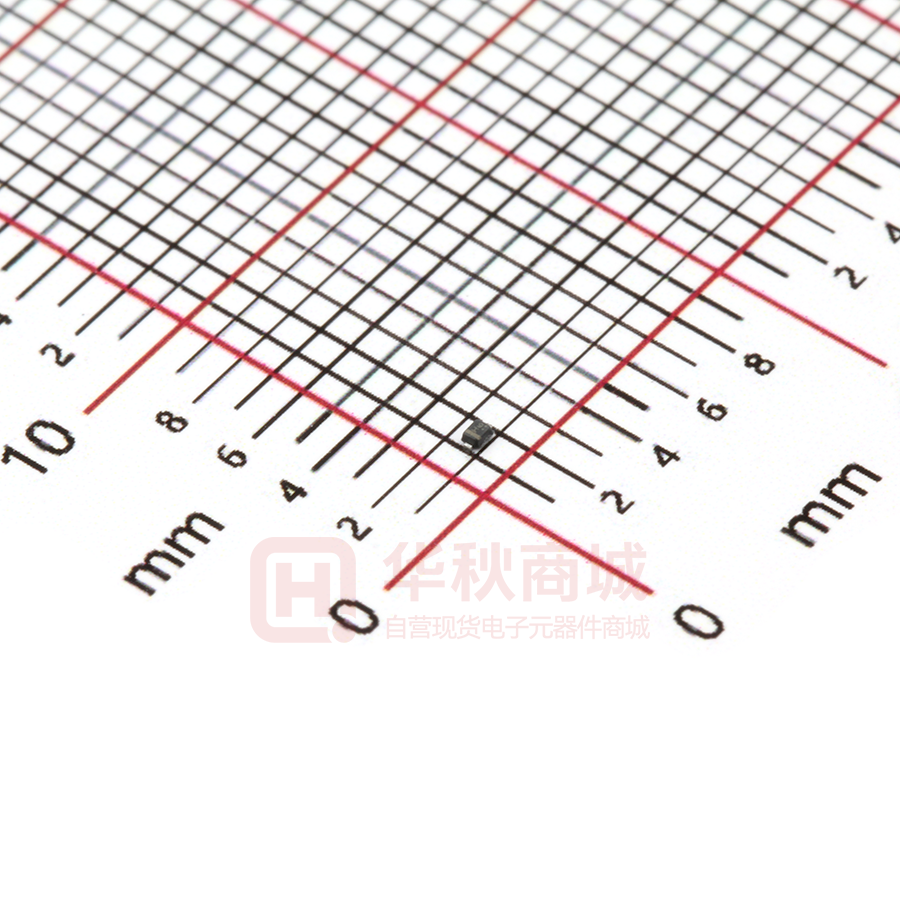

LESHAN RADIO COMPANY, LTD. Transient Voltage Suppressors for ESD Protection LESD8D7.0CAT5G S-LESD8D7.0CAT5G General Description The LESD8D7.0CAT5G is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. 1 Applications Cellular phones Portable devices Digital cameras Power supplies 2 SOD882 Features Small Body Outline Dimensions Low Body Height 1 Peak Power up to 80 Watts @ 8 x 20 μ s Pulse Low Leakage Response Time is Typically < 1 ns IEC61000−4−2 Level 4 ESD Protection IEC61000−4−4 Level 4 EFT Protection We declare that the material of product compliance with RoHS requirements. S-prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 2 ORDERING INFORMATION Device Marking Package Shipping LESD8D7.0CAT5G R2 SOD−882 10000/Tape & Reel S-LESD8D7.0CAT5G R2 SOD−882 10000/Tape & Reel Value Units Absolute Ratings (Tamb=25°C ) Symbol Parameter PPP Peak Pulse Power (tp = 8/20μs) 80 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +150 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±20 ±15 KV 40 A IEC61000-4-2 (ESD) IEC61000-4-4 (EFT) May. ,2019 air discharge contact discharge Rev.C 1/4 LESHAN RADIO COMPANY, LTD. LESD8D7.0CAT5G/S-LESD8D7.0CAT5G Electrical Parameter I Symbol IPP Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IT VC VBR VRWM IR Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM IT Test Current VBR IR VRWM VBR VC IT Breakdown Voltage @ IT IF Forward Current VF Forward Voltage @ IF V IPP Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device LESD8D7.0CAT5G VRWM (V) IR(uA) VBR (V)@ IT @ VRWM (Note 1) Max Max Min 7.0 1.0 7.2 IT VC (V) VC (V) IPP @ IPP=3 A* @ Max IPP* (A)* PPK C (W)* (pF) @16A(TLP) R(dynamic) Max mA Typ Max Max Max Typ Typ 9 1.0 13 16 5 80 16 0.24 *Surge current waveform per Figure 2. 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． Figure1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2 May. ,2019 Figure 2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000−4−2 Rev.C 2/4 LESHAN RADIO COMPANY, LTD. LESD8D7.0CAT5G/S-LESD8D7.0CAT5G Fig3.TLP Measurement 100 90 % of Rated Power 80 70 60 50 Peak Pluse Power 8/20µs 40 30 20 10 0 0 25 50 75 100 125 Lead Temperature- TL(℃) Fig4. Pulse Waveform Fig5.Power Derating Curve Application Note Electrostatic discharge (ESD) is a major cause of failure in electronic systems. Transient Voltage Suppressors (TVS) are an ideal choice for ESD protection. They are capable of clamping the incoming transient to a low enough level such that damage to the protected semiconductor is prevented. Surface mount TVS offer the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal line to ground. As the transient rises above the operating voltage of the device, the TVS becomes a low impedance path diverting the transient current to ground. The LESD8D7.0CT5G is the ideal board evel protection of ESD sensitive semiconductor components. The tiny SOD882 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening againt ESD. May. ,2019 Rev.C 3/4 150 LESHAN RADIO COMPANY, LTD. LESD8D7.0CAT5G/S-LESD8D7.0CAT5G Package Outline Dimension Suggested Pad layout May. ,2019 Rev.C 4/4
